Electrolux EDC 5371 - Description of Machine; Operating Screen

6

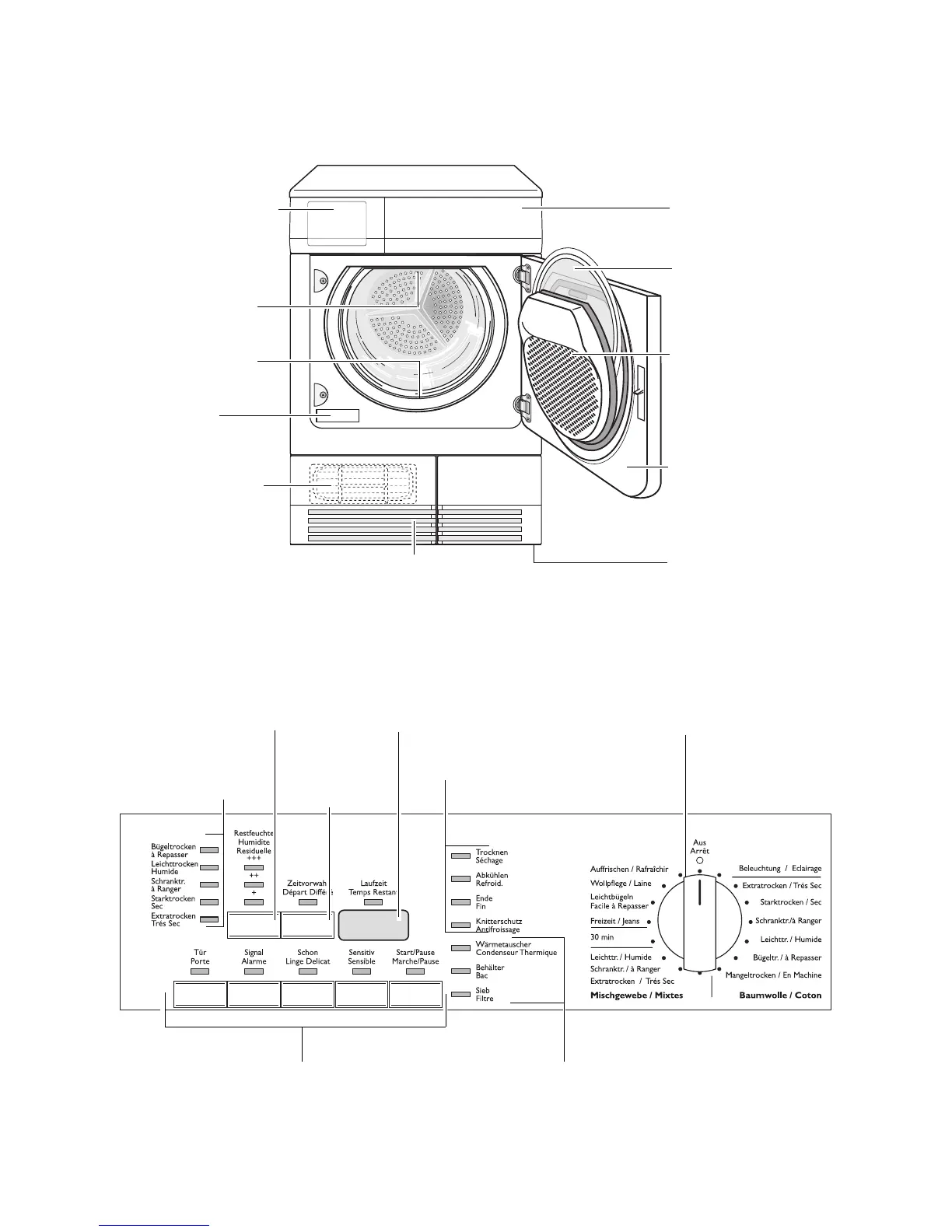

Description of machine
Operating screen
Drawer containing
condensate tank
Screwed feet
(with height
adjustment)
Loading door
(interchangeable stop)
Operating screen
Large mesh filter
(lint filter)
Air slots
Lamp for inside light
Type plate
Base door
upstream of
heat exchanger
M
icro-fine filter
(
lint filter)
Fine strainer
(lint filter)
Display showing
level of dryness
Programme progress display
Programme selector
Maintenance displays
– HEAT EXCHANGER (WÄRMETAUSCHER - clean!)
– EMPTY WATER (BEHÄLTER - empty!)
– CLEAN FILTER (SIEB - clean lint filter!)
Block of buttons and displays
Multi-display
DELAY TIMER
button
INTENSITY button
