Electrolux EDS - Page 13

Installation manual
13

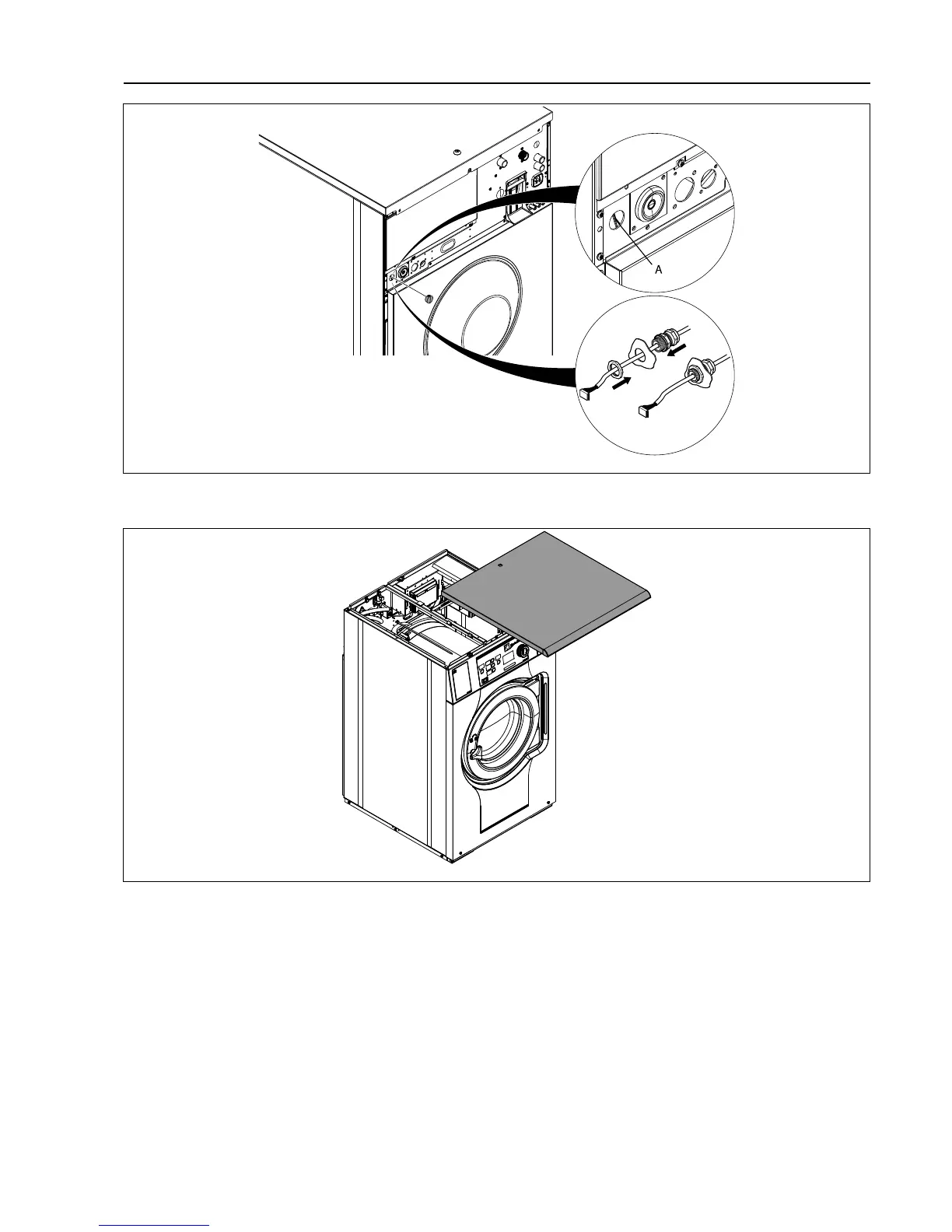

fig.W01134A
Demount the top panel.
fig.W01143
Connect the cable from the J2 port on the EDS controller to the RS232 port on the I/O module.
The connection is in the bottom of the I/O module. It might be necessary to temporarily demount the I/O module to be
able to connect.
Strap the cable at suitable positions. The cable must not be in contact with the drum.
