INSTALLING THE COOKER HOOD electrolux 23
EN

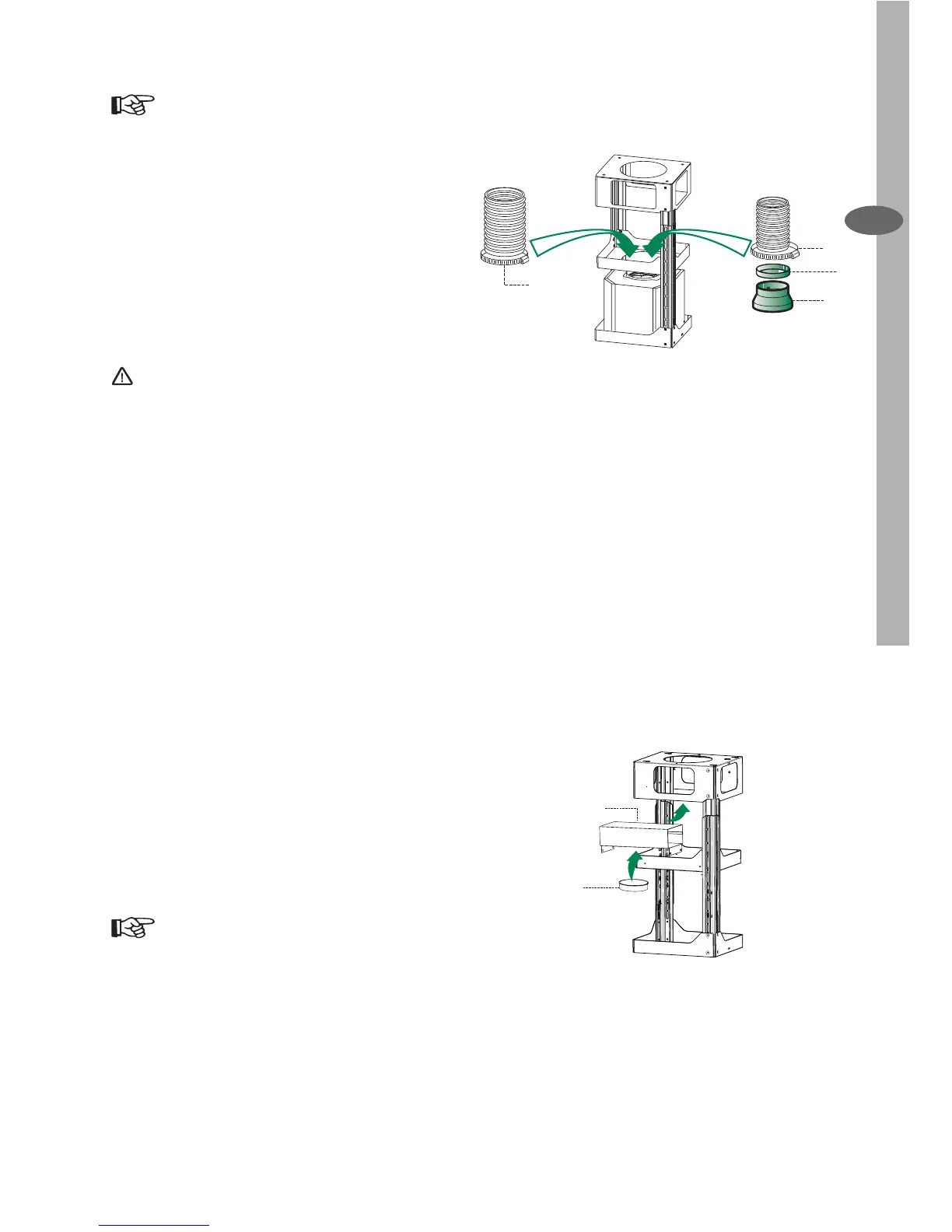

Ducting Connection
Connect the ducting chosen to:
• the Ø150mm ducting spigot on top
of the motor housing, or the Ø150-
120mm ducting spigot item 9 and
secure using the jubilee clips item
25.
• A Ø120-125mm collar item 9.1 is
provided to fi t over the Ø120mm
ducting spigot when 125mm ducting
is fi tted.
If the room where the cooker hood
is to be used contains a fuel burning
appliance such as a central heating
boiler, then its fl ue must be of the
room sealed or balanced fl ue type.
If other types of fl ue or appliances are
fi tted sure that there is an adequate
supply of air to the room.
The cooker ducting (extraction mode)
must never be connected to central
heating fl ues, radiators or water
heaters etc.
Recirculation
The cooker hood is supplied specifi ed
for use in the recirculation mode, with
the charcoal fi lter fi tted.
In the recirculation mode contaminated
air is passed through the charcoal fi lter
to be purifi ed and recirculated into the
kitchen through the grille outlets on
either side of the chimney.
Recirculation Connection
• Fix the connection item 15 to the
frame using the 4 screws provided.
• Fix the fl ange item 10 to the lower
opening of the connection item 15.
• Connect the hood air outlet to the
fl ange in the lower part of the junction
using a rigid or fl exible ø 150 tube (by
installer’s choice).
