24 electrolux INSTALLING THE COOKER HOOD
EN
Chimney Stack
The chimney consists of two sections.
The lower chimney measures 700mm
and the upper chimney (with the
recirculation grilles on either side)
measures 415mm. The overall installed
measurement is min. 810 - max
1050mm.

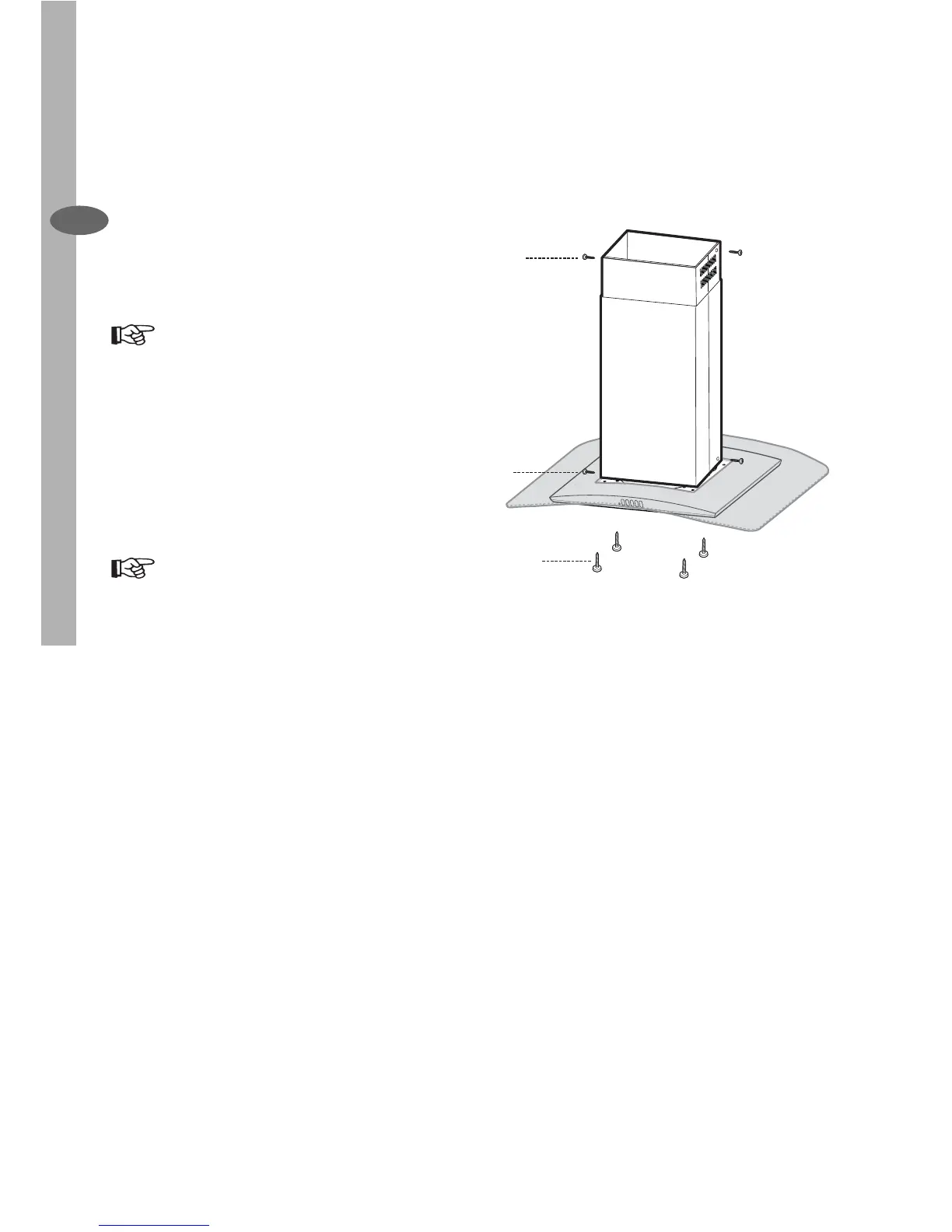

Fitting the Chimney
• Position the upper chimney section
and fi x the upper part to the frame
using the 2 screws 12c (2,9 x 9,5)
provided.
• Similarly, position the lower chimney
section and fi x the lower part to the
frame using the 2 screws 12c (2,9 x
9,5) provided.
Fitting the Hood Body
• Before fi xing the hood body to the
frame:
• Remove the grease fi lters from the hood
body.
• Remove any activated charcoal fi lters.
• From below, use the 4 screws 12f (M6
x 10)
12f
12c
12c
