Electrolux EFA90950 - Final Electrical Wiring

electrolux 25

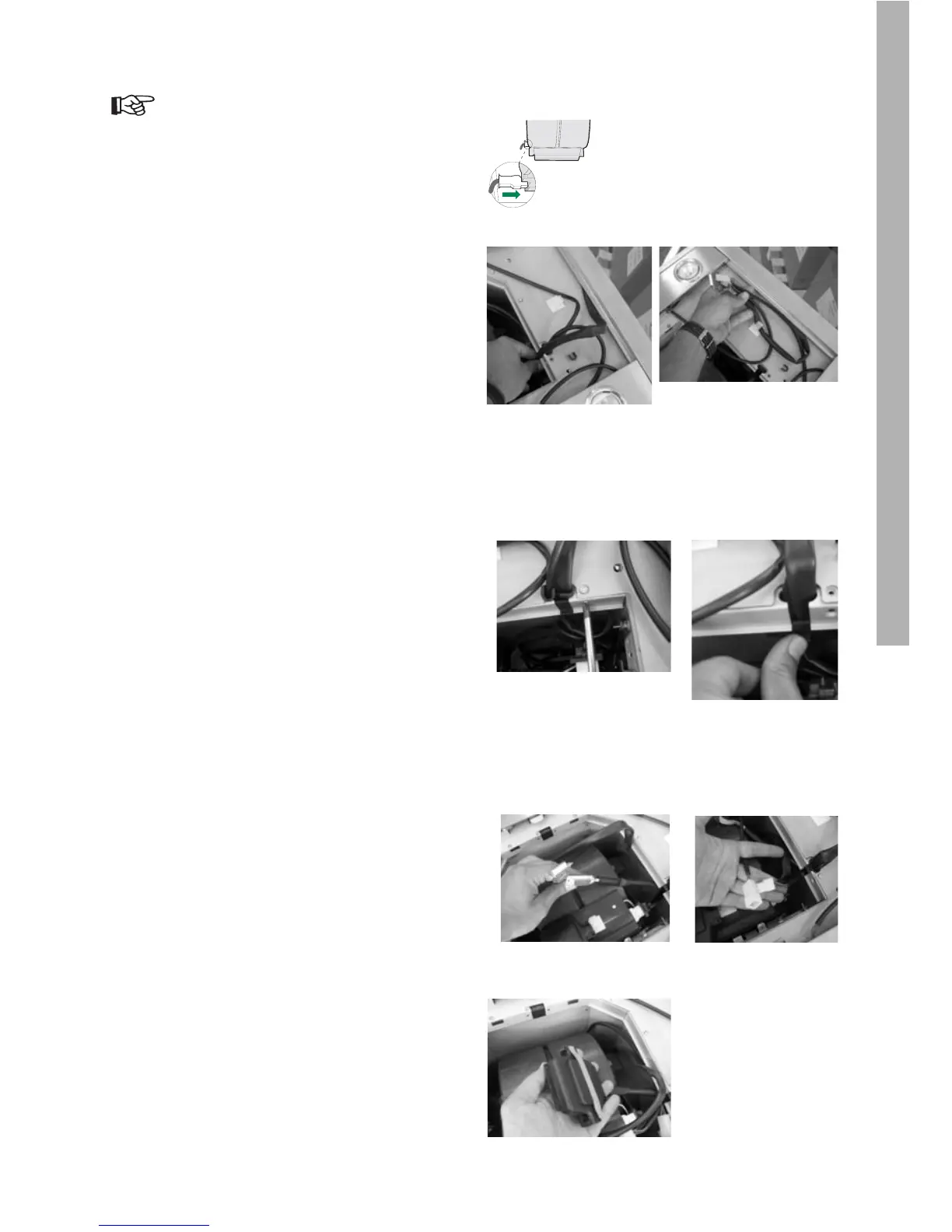

Electrical Connection
• Connect the Hood to the Mains power
supply, inserting a two-pole Switch with
a contact aperture of at least 3 mm.
• Remove the Metal grease fi lters (see
par. on “Maintenance”) and make sure
that the power supply Cable is properly
inserted in the Suction fan socket.
• Take the wires indicated in fi g.1 and
pass them through the slot formed
on the galvanized diffuser support, as
shown in fi g.2.
• Position the fi nishing plug 27 over the
housing in the diffuser support, fi xing
it using a screw 12e (2.9 x 9.5) and
applying the 2 cable clamp elements
26 as indicated in fi gs. 3 and 4.
• Connect the Controls Connector fi g. 5.
• Connect the Lighting Connector fi g. 6.
• Store both the Connectors in the
Protective box 24 and close it with 2
Screws 12e (2.9 x 9.5), provided.
• Remove the protective fi lm from
the double-sided adhesive on the
connection box, and fi x it inside the
motor compartment fi g. 7.
1
2
3
4
5
6
7
