40
R
T
Y
Y
Y
Y
R
T
!
Template
Rawl
plugs+hooks
Adjustment
screws

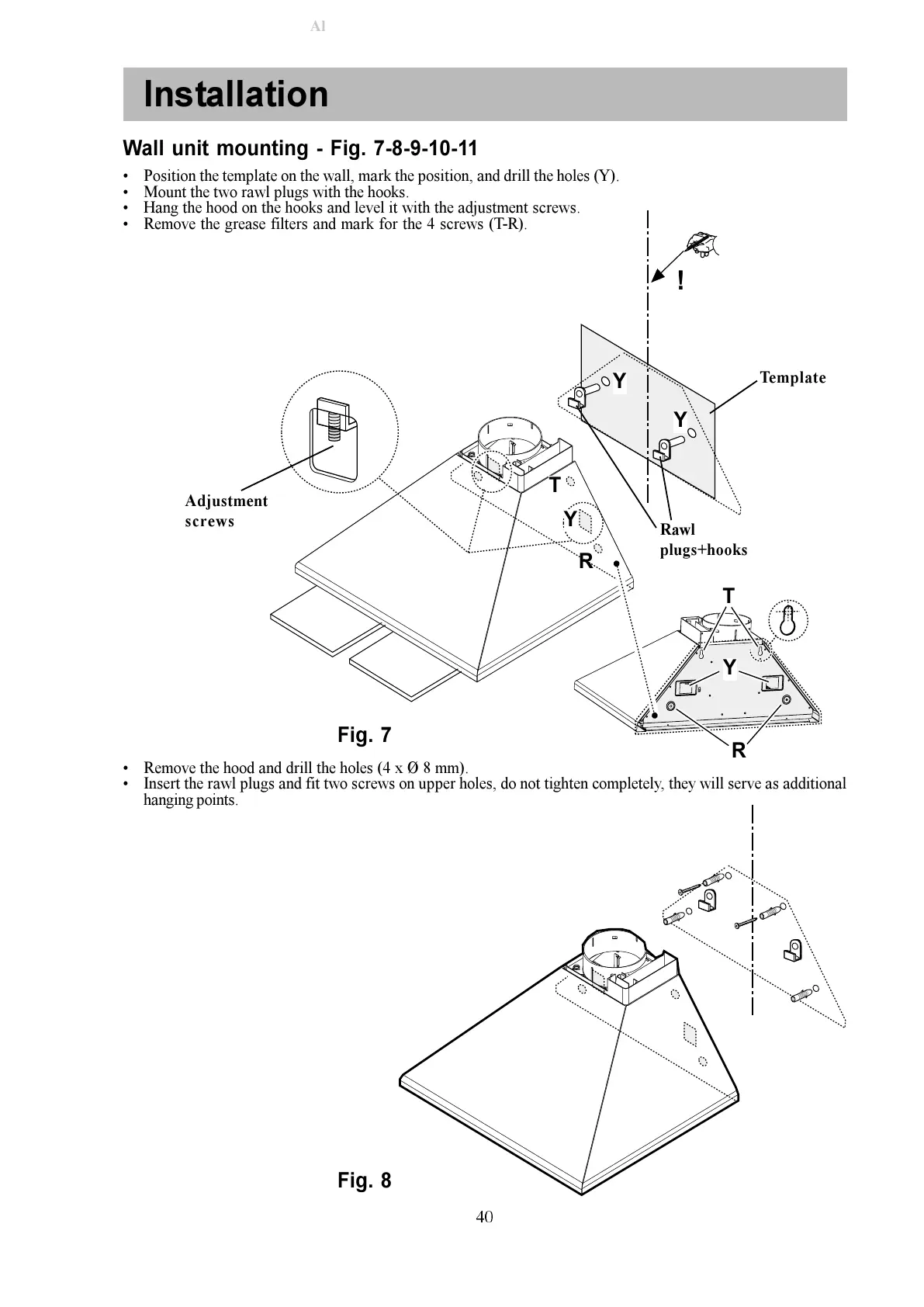

Wall unit mounting - Fig. 7-8-9-10-11
Position the template on the wall, mark the position, and drill the holes (Y).
Mount the two rawl plugs with the hooks.
Hang the hood on the hooks and level it with the adjustment screws.
Remove the grease filters and mark for the 4 screws (T-R).
Remove the hood and drill the holes (4 x Ø 8 mm).
Insert the rawl plugs and fit two screws on upper holes, do not tighten completely, they will serve as additional
hanging points.
Installation
Fig. 7
Fig. 8
