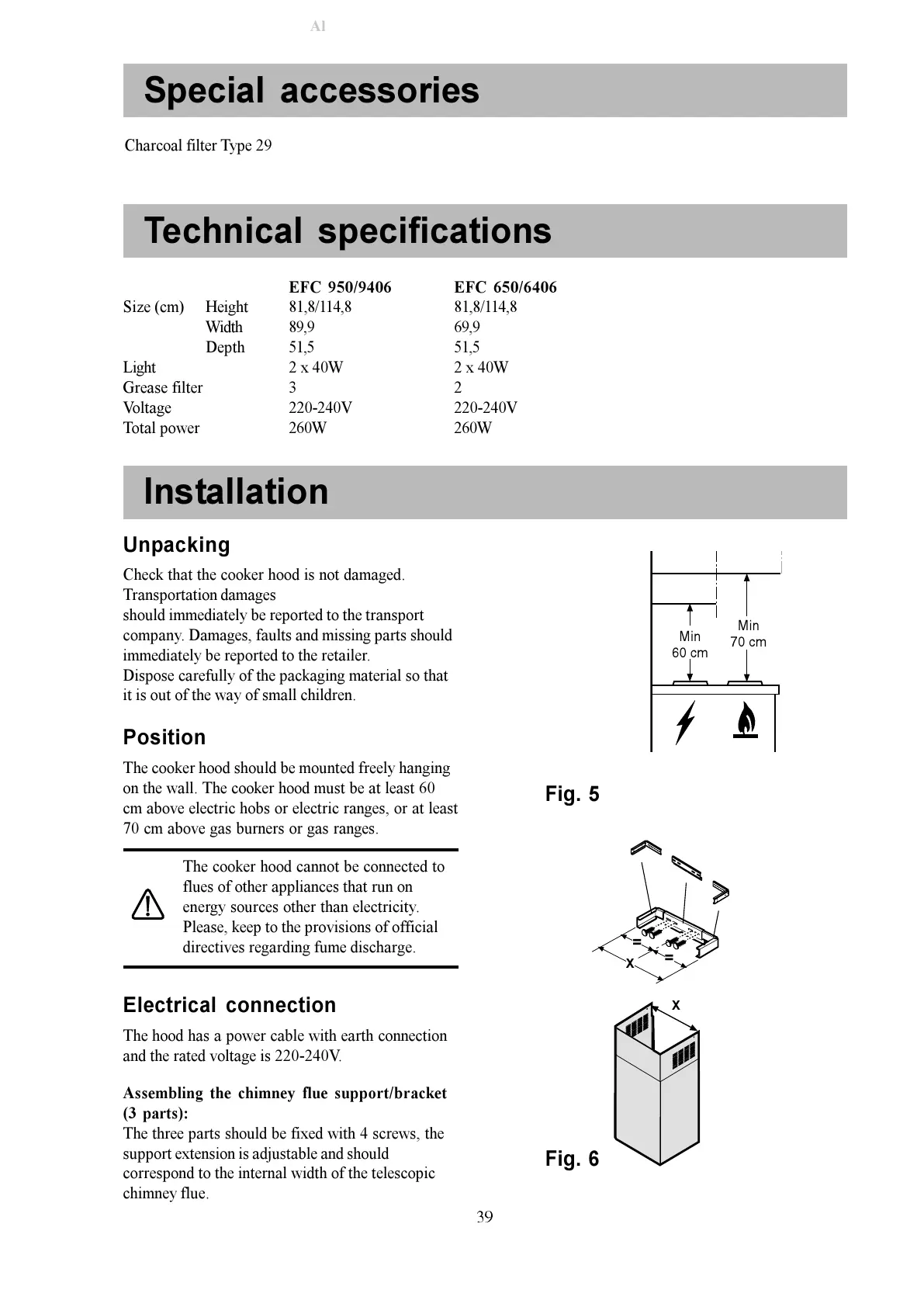

Unpacking
Check that the cooker hood is not damaged.
Transportation damages
should immediately be reported to the transport
company. Damages, faults and missing parts should
immediately be reported to the retailer.
Dispose carefully of the packaging material so that
it is out of the way of small children.
Position
The cooker hood should be mounted freely hanging
on the wall. The cooker hood must be at least 60
cm above electric hobs or electric ranges, or at least
70 cm above gas burners or gas ranges.
The cooker hood cannot be connected to
flues of other appliances that run on
energy sources other than electricity.
Please, keep to the provisions of official
directives regarding fume discharge.
Electrical connection
The hood has a power cable with earth connection
and the rated voltage is 220-240V.
Assembling the chimney flue support/bracket
(3 parts):
The three parts should be fixed with 4 screws, the
support extension is adjustable and should
correspond to the internal width of the telescopic
chimney flue.
Installation
Min
70 cm
Min
60 cm
Fig. 5
Special accessories
Charcoal filter Type 29
Technical specifications
EFC 950/9406 EFC 650/6406
Size (cm) Height 81,8/114,8 81,8/114,8
Width 89,9 69,9
Depth 51,5 51,5
Light 2 x 40W 2 x 40W
Grease filter 3 2
Voltage 220-240V 220-240V
Total power 260W 260W
