The anti-tilt brackets are to be secured to the back wall
with appropriate fasteners.
Two stops are to be screwed to the plinth in locations as
shown (stops provided). The stops locate into slots in the
base of the appliance to prevent the product from being
pulled forward when installed.
Measurements from the rear wall are to be adjusted if there
are tiles etc. that come between the appliance and the wall.
Once services are connected, product can be lifted
onto the plinth and pushed back carefully, ensuring the
appliance engages into both brackets at the rear and
the front stops.
If the product requires removal for service, it must be lifted
at the front approximately 5mm to clear the front stops
prior to being pulled forward.
+
+
+
+
+
+
C
L
344
344
165 165

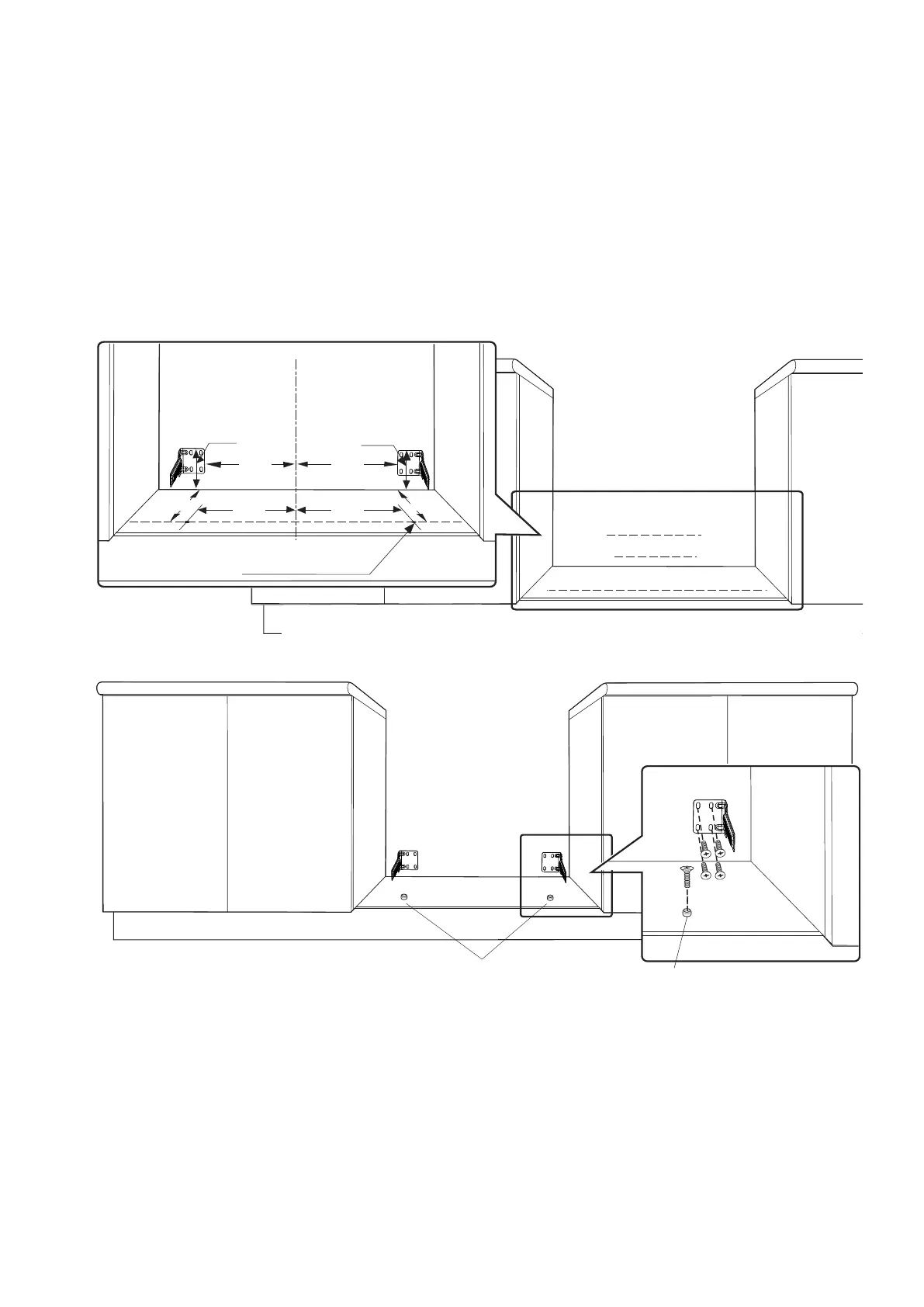

Location of holes for front stops
Measurements are to be adjusted to account for the thickness of any skirting
board or tiles coming between the back of the appliance and the wall
+
+
+
+
370 370
104
104
Front stops
Front stops
INSTALLATION OF EFE914, EFEP916 & EFEP956 (CONTINUED)
