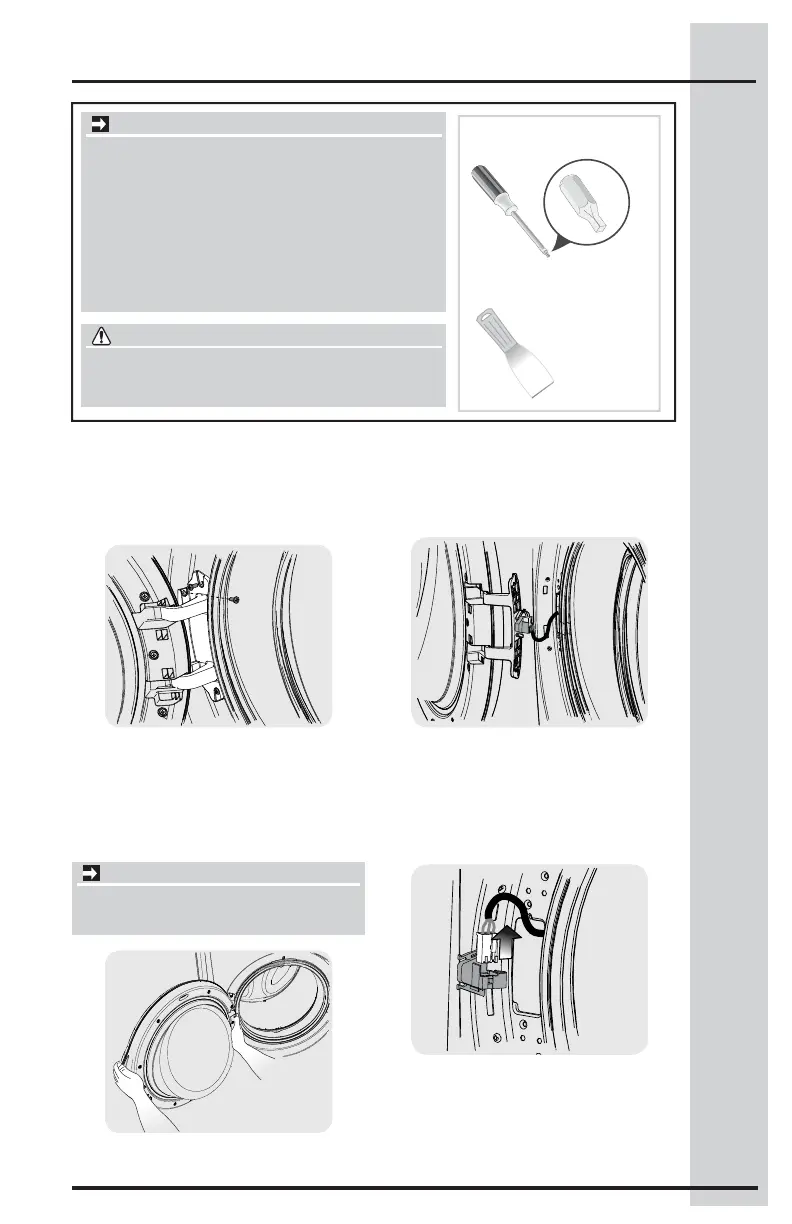

Reversing Door
IMPORTANT
Take care not to pull the door away from the
washer until you remove the wiring harness
terminal cap.
A) Removing Door Assembly
1. Completely open the door to expose all
four hinge screws.
2. Remove all four hinge screws with #2
square bit driver. Save for reinstalling later.
3. Grasp the door with both hands -one at
the handle area and one at the hinge area.
While supporting the door with the hand at
the hinge, press fi rmly with the other hand
until the locating pins on the back of the
hinge plate dislocate from the front panel.
4. While supporting the door with one hand,
pinch the tabs to release the plastic
terminal cap from the hinge plate.
x 4
5. Set the door face down on a fl at surface
protected by soft cloth or towel.
6. Release wiring harness from retainer on
plastic terminal cap. Then release terminal
from terminal cap. Save the cap to
reinstall later.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing could
result in personal injury or even death.
IMPORTANT
BEFORE YOU REVERSE YOUR WASHER DOOR:
1. Be sure you have adequate swing area before reversing
door.
2. Gather your tools - including a screw driver with a #2
square bit and plastic knife (or small, fl at prying tool that
won’t damage paint).
3. Protect fl at work surface, such as top of washer or fl oor
near washer, with a soft cloth or towel.
4. Be sure washer is unplugged from power source!
Screwdriver with
#2 square bit
Tools needed for reversal:
Plastic
knife
To Next Page
