Electrolux EFT 5466 - Page 8

40

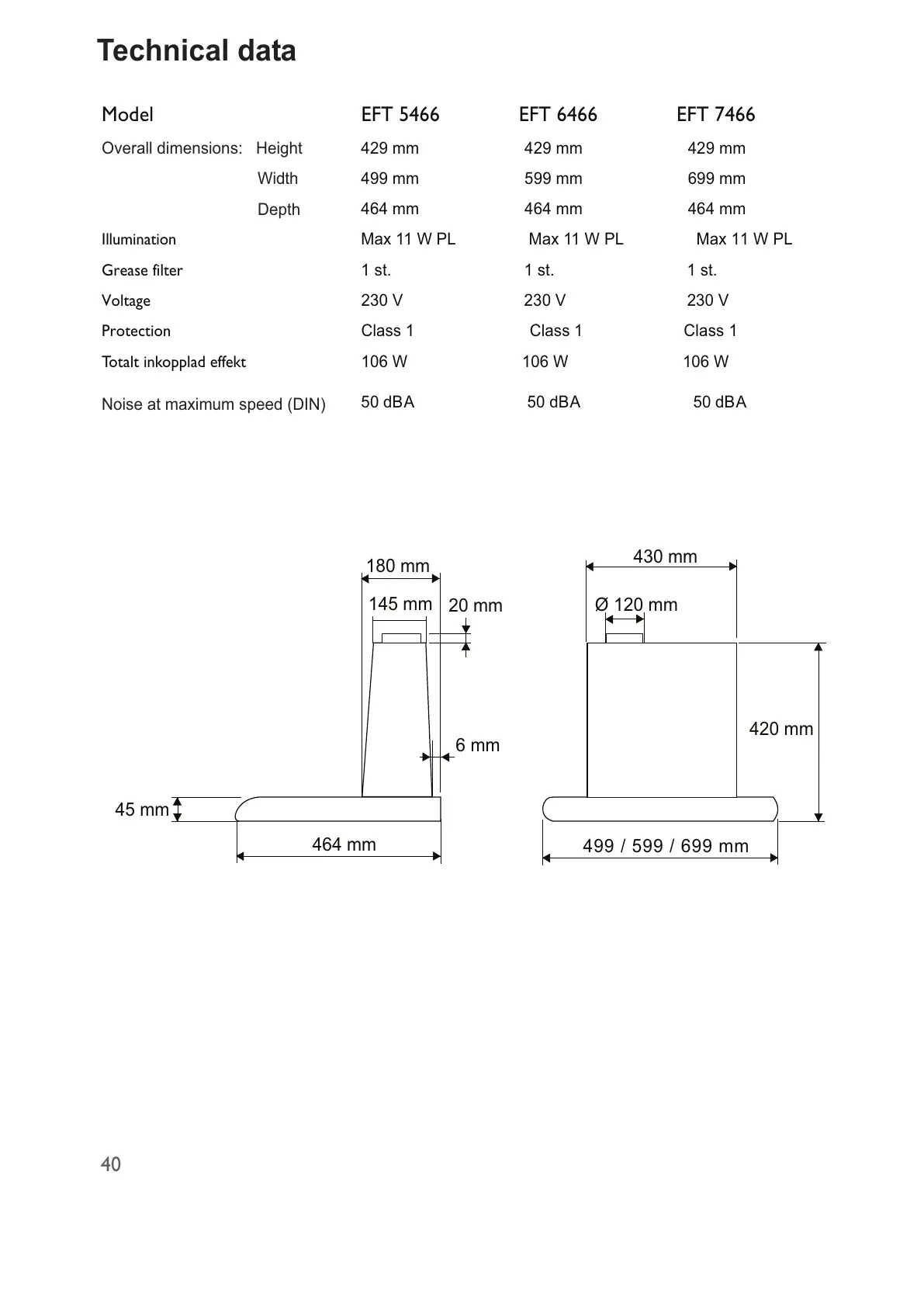

Technical data
Model EFT 5466 EFT 6466 EFT 7466
Overall dimensions: Height
429 mm 429 mm 429 mm
Width
499 mm 599 mm 699 mm
Depth
464 mm 464 mm 464 mm
Illumination Max 11 W PL Max 11 W PL Max 11 W PL
Grease filter 1 st.1 st.1 st.
Voltage 230 V 230 V 230 V
Protection Class 1 Class 1 Class 1
Totalt inkopplad effekt 106 W 106 W 106 W
Noise at maximum speed (DIN)
50 dBA 50 dBA 50 dBA

45 mm
464 mm
430 mm
420 mm
20 mm
145 mm
Ø 120 mm
6 mm
499 / 599 / 699 mm
180 mm
