41
Min
40
cm
Min
65
cm
C
A
B
B
C
D

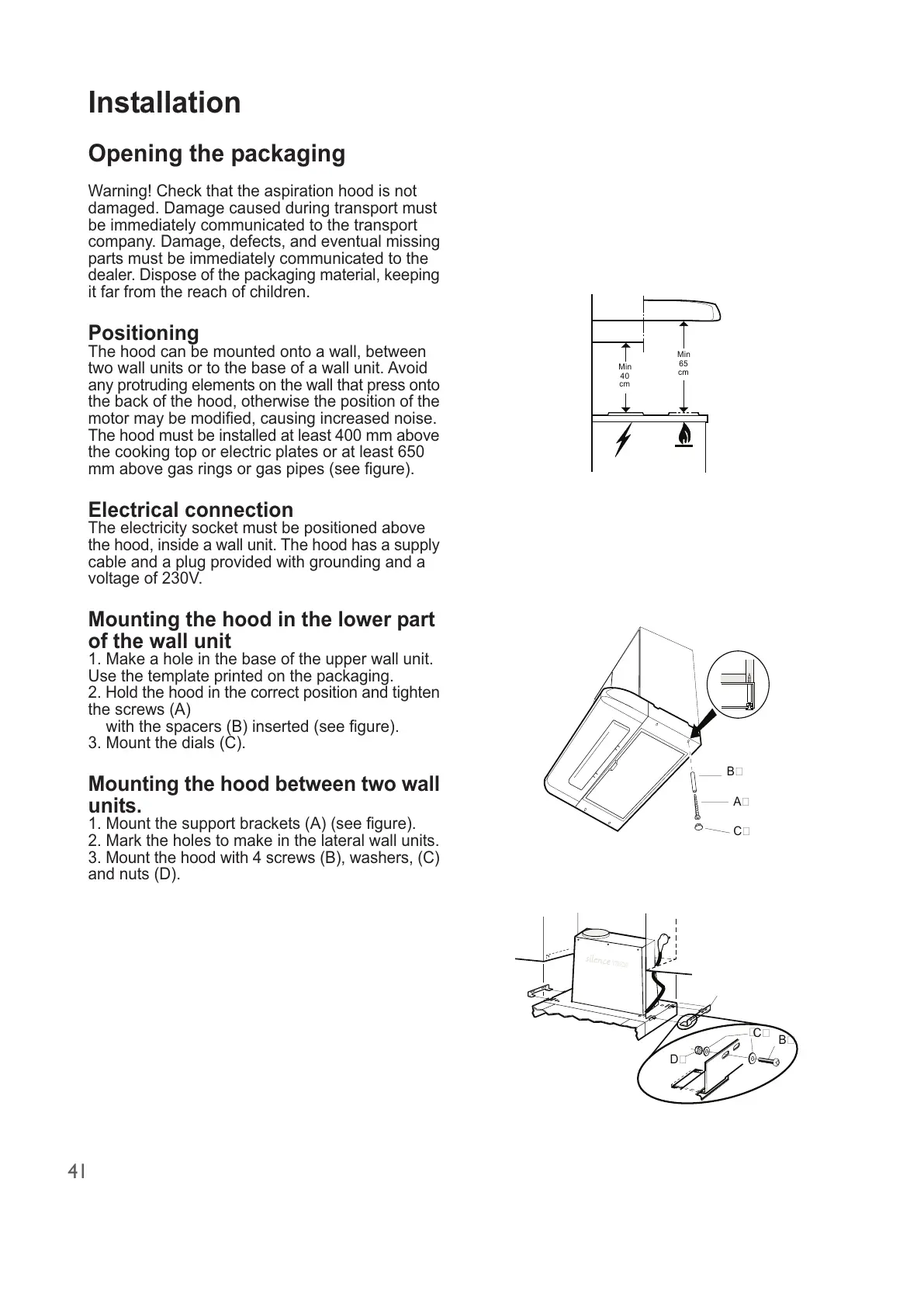

Installation
Opening the packaging
Warning! Check that the aspiration hood is not
damaged. Damage caused during transport must
be immediately communicated to the transport
company. Damage, defects, and eventual missing
parts must be immediately communicated to the
dealer. Dispose of the packaging material, keeping
it far from the reach of children.
Positioning
The hood can be mounted onto a wall, between
two wall units or to the base of a wall unit. Avoid
any protruding elements on the wall that press onto
the back of the hood, otherwise the position of the
motor may be modified, causing increased noise.
The hood must be installed at least 400 mm above
the cooking top or electric plates or at least 650
mm above gas rings or gas pipes (see figure).
Electrical connection
The electricity socket must be positioned above
the hood, inside a wall unit. The hood has a supply
cable and a plug provided with grounding and a
voltage of 230V.
Mounting the hood in the lower part
of the wall unit
1. Make a hole in the base of the upper wall unit.
Use the template printed on the packaging.
2. Hold the hood in the correct position and tighten
the screws (A)
with the spacers (B) inserted (see figure).
3. Mount the dials (C).
Mounting the hood between two wall
units.
1. Mount the support brackets (A) (see figure).
2. Mark the holes to make in the lateral wall units.
3. Mount the hood with 4 screws (B), washers, (C)
and nuts (D).
