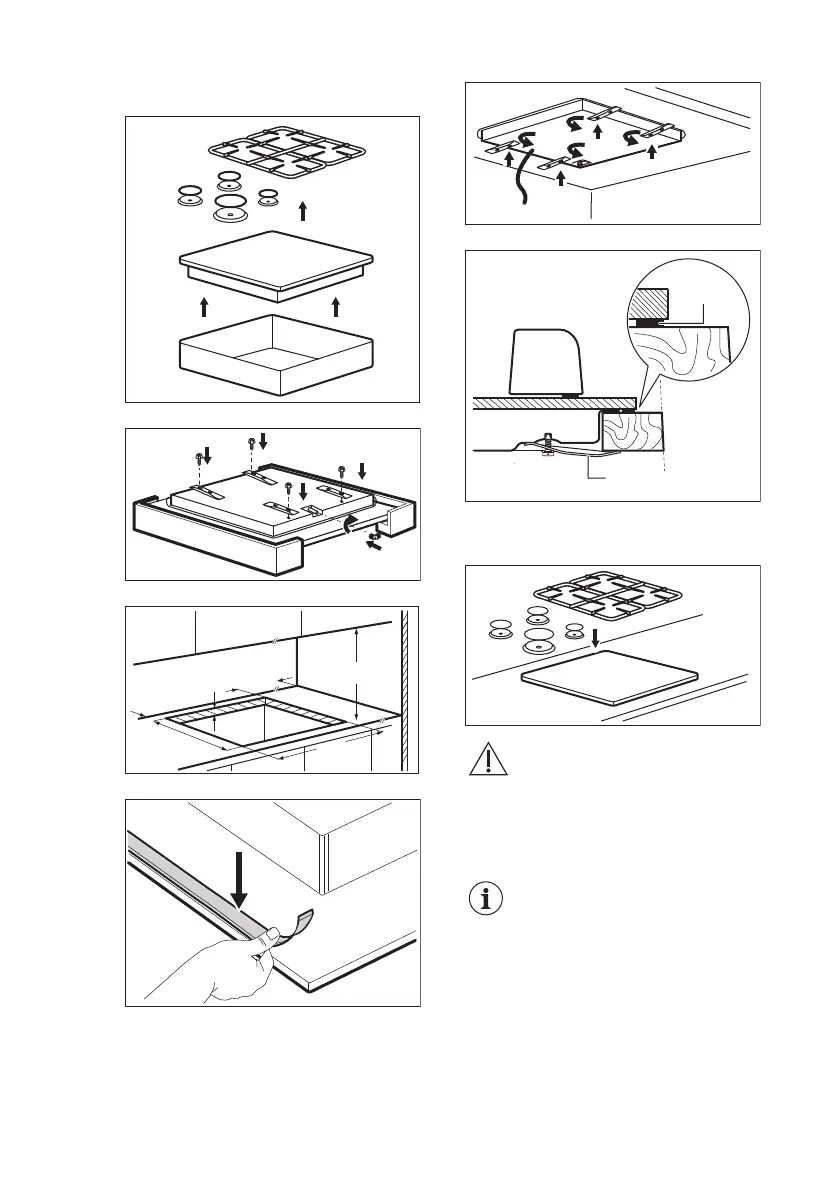

3.7 Assembly
1.
2.
3.
min.
55 mm
min.
650 mm
560 mm
2
0
+
480 mm
2
0
+
min.
150 mm
30 mm
4.
5.
6.
A) supplied seal
B) supplied brackets
7.
CAUTION!
Install the appliance only on
a worktop with flat surface.
3.8 Installing hob under the
hood
If you install the hob under a
hood, please see the
installation instructions of the
hood for the minimum
distance between the
appliances.
3.9 Possibilities for insertion
The panel installed below the hob must
be easy to remove and let an easy
access in case a technical assistance
intervention is necessary.
