D GENERAL DESCRIPTION OF MACHINE
D1 General description
The dishwasher is suitable for washing glasses, cups, cutlery.
Under no circumstances it can be used for other applications or ways not provided for in this manual.
This equipment has been created in order to ensure a better work environment and cost efficiency.
These dishwashers are used in restaurants, cafeterias, cooking centers and large institutions. The special dish
racks, that can be equipped with various inserts, offer practical and easy use for obtaining excellent washing results.
The electronic system enables complete supervision of the washing process. The control panel also has a display
that shows the operating parameters and signals any faults.
E TECHNICAL DATA
E1 Main technical characteristics

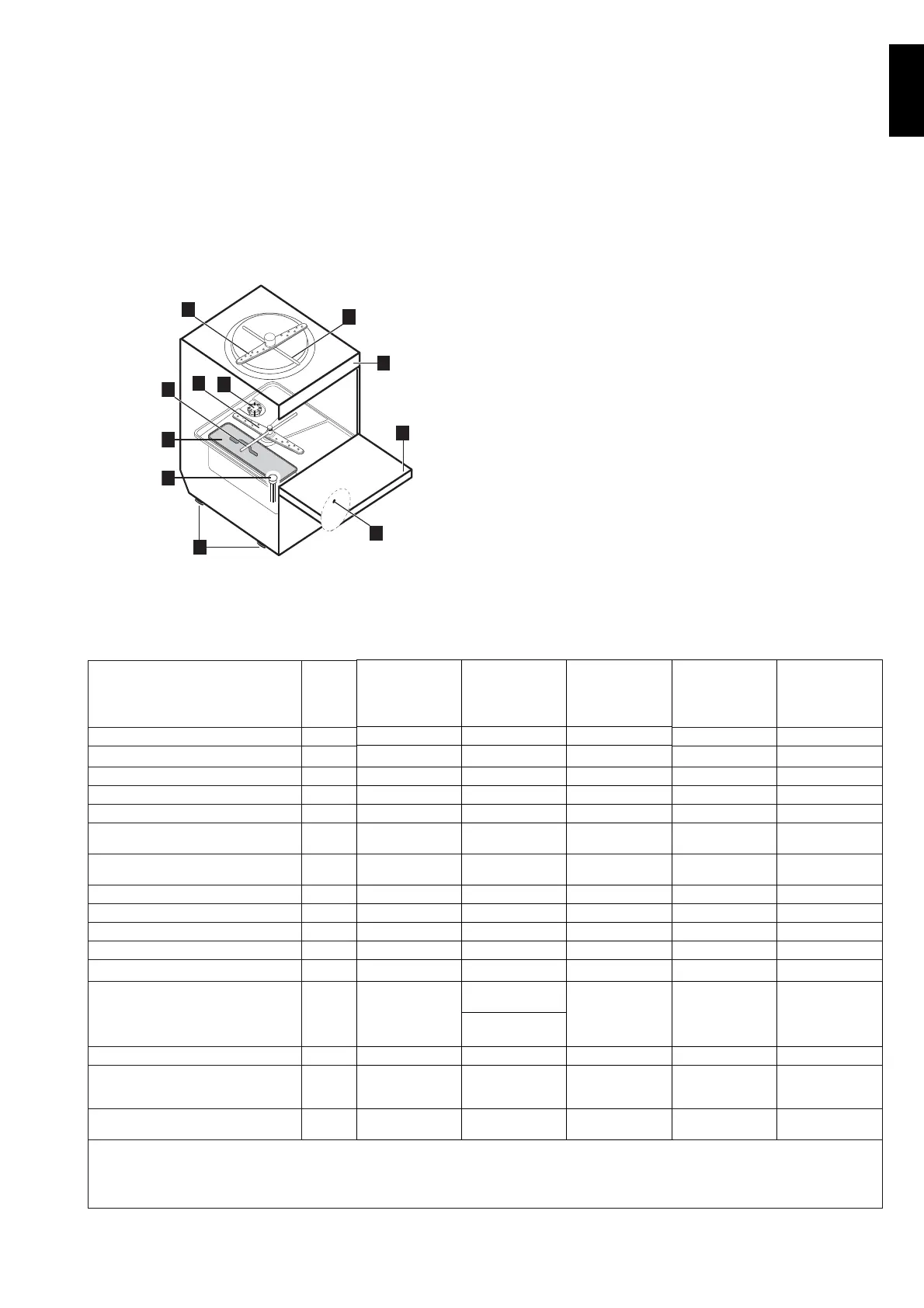

Table 2 Main technical characteristics, performance and consumption
1. Door
2. Control panel
3. Upper rinse arm
4. Upper washer arm
5. Lower washer arm
6. Salt container cap
7. Lower rinse arm
8. Tank filter
9. Overflow
10.Adjustable feet
11.Screw for adjusting rinse aid quantity
MODEL EGWSSIC -
ZWGSSIC
EGWSIC... -
ZGWSIC... -
NGWSIC... -
XGWSIC
EGWSICWG...U
NGWSIC.........U
EGWS...3 EGWSICGMS -
ZGWSICGMS -
EGWSICGBMS
Power supply voltage: V 220-240V 1N 220-240V 1N 220-240V 1N 400V 3N 220-240V 1N
Frequency Hz 50
50 [60
(5)
]
50 50 50
Max. power input kW 3.3 3.3 2.3 4.8 3.3
Booster heating element power kW 3.0 3.0 2.0 4.5 3.0
Tank heating element power kW 0.8 0.8 0.8 0.8 0.8
Supply water pressure kPa
[bar]
180-300
[1.8 - 3]
180-300
[1.8 - 3]
180-300
[1.8 - 3]
180-300
[1.8 - 3]
180-300
[1.8 - 3]
Supply water temperature °C
[°F]
10-55
[50-122]
10-55
[50-122]
10-65
[50-145]
10-55
[50-122]
10-65
[50-145]
Supply water hardness °f/°d/°e 14/8/10 max 14/8/10 max 14/8/10 max 14/8/10 max
Rinse cycle water consumption (hot-[cold]) l 2.3-[1.8] 2.3-[1.8] 2.3-[1.8] 2.3-[1.8] 2.3-[1.8]
Booster capacity l5555
Tank capacity l6666
Duration of standard cycles
(1)
sec.
120-300-120
(2)
120-300-120
(2)
120-300-120
(2)
120-300-120
(2)
60-120-66
(2)
Noise level Leq
(3)
dB (A)
LpA:69dB -
KpA:1.5dB
LpA:69dB -
KpA:1.5dB
LpA:69dB -
KpA:1.5dB
LpA:69dB -
KpA:1.5dB
LpA:69dB -
KpA:1.5dB
LpA:59.6dB -
KpA:1.5dB
(4)
Protection rating IPX4 IPX4 IPX4 IPX4 IPX4
Net weight:
- short version
- standard version
kg
34
37
34
37
34
37
34
37
34
37
Power cable type H07RN-F - Schuko H07RN-F - Schuko H07RN-F - UK
plug
H07RN-F -
no plug
H07RN-F -
no plug
(1) = with water supply temperature at 55°C [131°F] - 65°C [149°F].
(2) = Included cold rinse.
(3) = The noise emission values have been obtained according to EN ISO 11204.
(4) = On selected models.
(5) = 60Hz only for the models EGWSICWPB6 - EGWSICWP6
1
2
3
4
5
6
7
11
10
9
8
