Electrolux EHC726BA - Cable Specifications and Wiring Diagram

Cable
Cable types applicable for installation or replacement: H05RR-F, H05SS-F, H05VV-F, H05V2V2-F.
For the section of the cable refer to the total power (on the rating plate) and to the table:
The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue
and brown cables).
T
otal power
Section of the cable
Ma
ximum 3500W
3
X1.5mm
2
Ma
ximum 5500W
3
X2.5mm
2
Ma
ximum 7000W
3
X4mm
2
Ma
ximum 8800W
3
X6mm
2

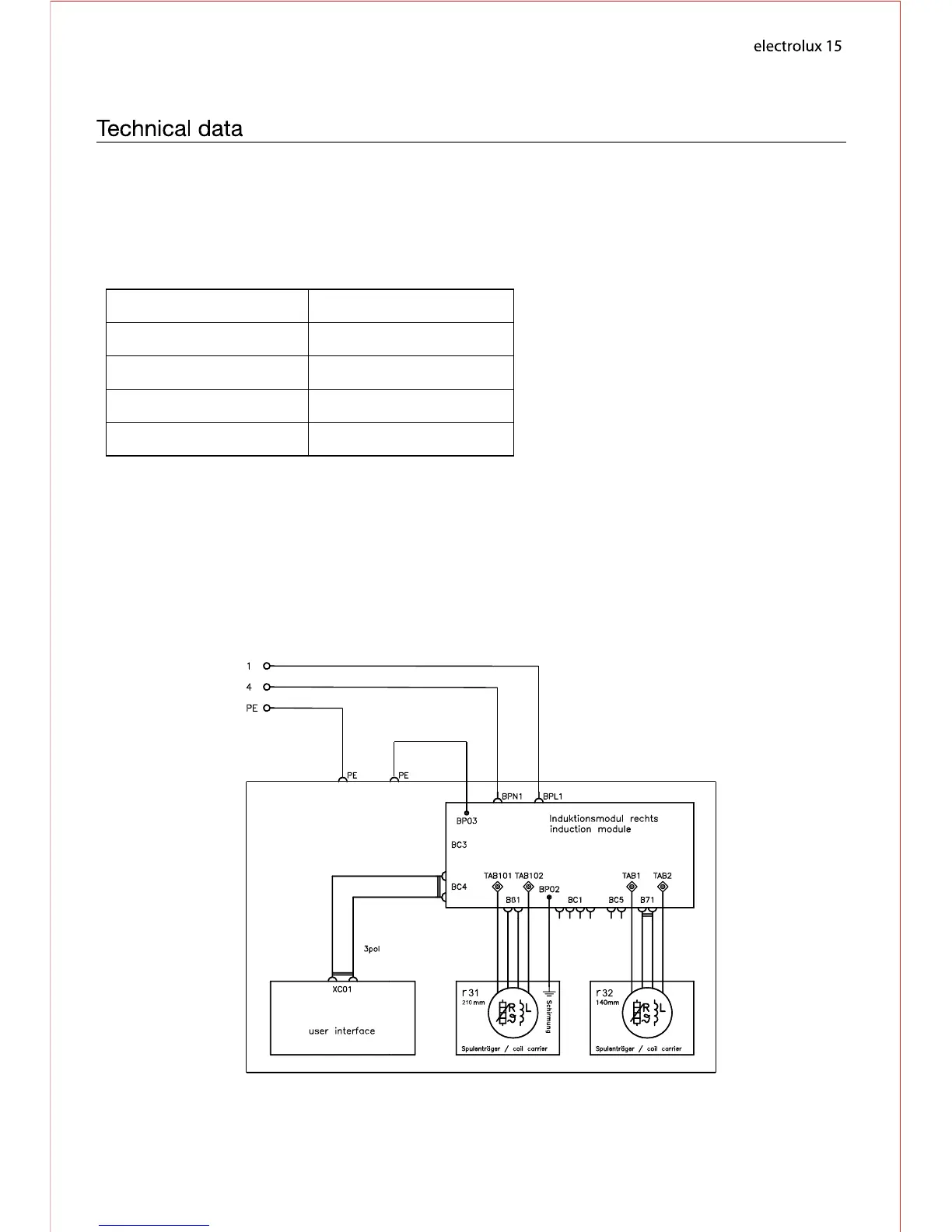

Wiring Diagram
