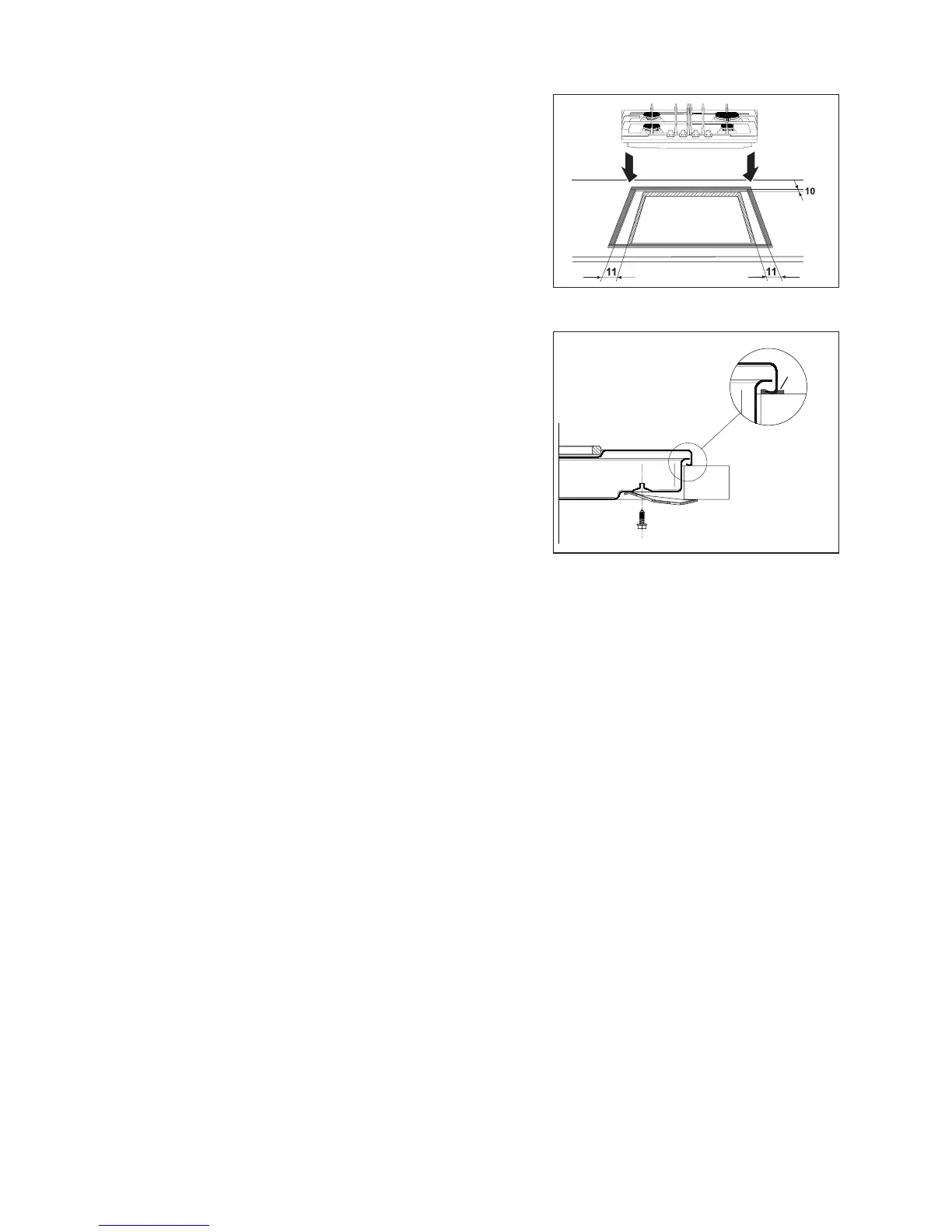

Fig. 6
Fig.7
a
a) seal
taking care that the seals meet
without overlapping.
2. Place the hob in the cut out, taking
care that it is centred.
3. Fix the hob with the relevant fixing
clamps, supplied with the injectors
kit (see diagram). When the screws
have been tightened, the excess seal
can be removed.
The edge of the hob forms a double
seal which prevents the ingress of
liquids.
