DOC
. NO
.
5956.65J
.00
P
. 14 / 174
EFS - Dishwashing Syst
ems Platform
Electrolux Professional
7.1

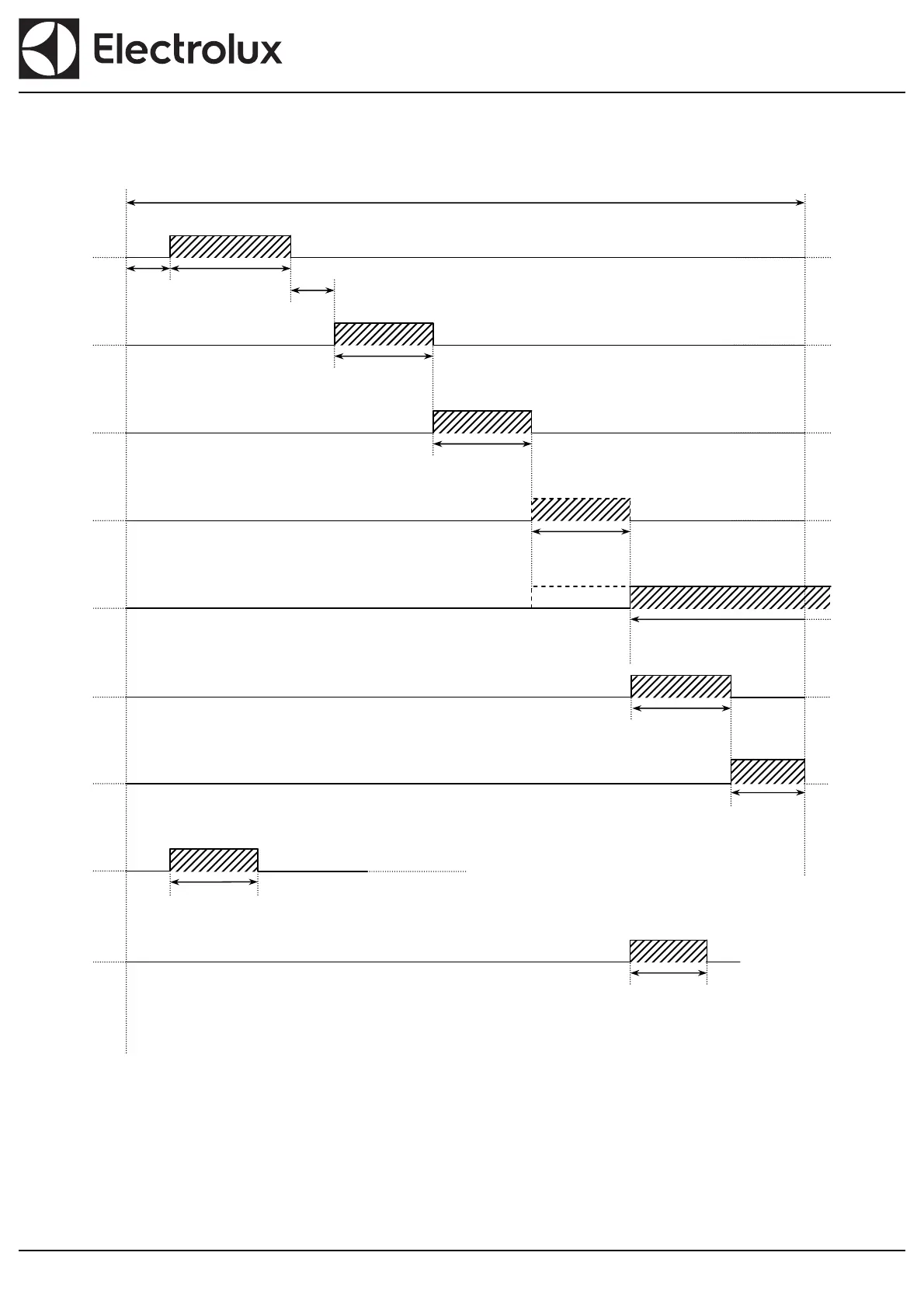

CYCLE DIA
GRAM
CYCLE TYME
LEGEND
A:
= drai
n
= w
ash
= rinse pause
= pre rinse
= final pause
= rrinse
= detergent
= cold rinse
= rinse aid
IPA
Ln
Sh
PA
Pr
ri
cr
FP
dr
rPA
dEt
rAi
13
15
Table of Contents
Contents
1
Index
3
Keyboards
4
Hood Type Style
4
Setting Modes
4
Undercounter Style
5
Manual Activation of Detergent and Rinse Aid Dispensers
6
Rinse Pump Manual Activation
6
Detergent and Rinse Aid Dosage
7
General Parameters
7
How Change the Duration
7
Note for External Dispensers
8
Counters
9
Temperature Setting
11
Factory Parameters
11
To Modify Thresholds
12
Cycle Setting
13
Cycle Diagram
14
Cycle 1 Parameters
15
Cycle 2 Parameters
15
Cycle 3 Parameters
15
Other Parameters
16
Drain/Cleaning Cycle Parameters
16
Dishwashing Parameters
16
Read Only Parameters
17
Communication and HACCP Parameters
17
Configuration Parameters
18
Parameters for Automatic Hood Type Dishwashers
19
Special Features
21
Resin Regeneration Cycle
21
Medical Line Dishwasher with Door/Hood Lock Device
21
Detergent and Rinse Aid Level Sensors Activation
21
Dishwasher with Incorporated Cintinuous Water Softener
22
Autonomy of Full Salt Container
22
Hood-Type Dishwasher with Cycle Thermal Label
23
Dishwashers with Wash Tank Water Change Frequency Control
23
Peristaltic Tube Fitting and Replacement Instructions
24
Fitting the Tube
25
Removing the Tube
26
Main Board Configuretion
27
Code - Prog. Table
27
Programming Sheets
30
Nuc1 - Euc1 - Zuc1
30
Nuc1Ws - Euc1Ws - Zuc1Ws
32
Nuc3 - Kuc3 - Euc3 - Zuc3
34
Nuc3Ws - Euc3Ws - Zuc3Ws
36
Nuc1G - Euc1G - Zuc1G
38
Zucai - Aucaig - Eucai - Nucai
40
Zucai - Aucai - Eucai - Nucai Ws
42
Eucaiml
44
Eucaimlws
46
Eucaimlg
48
Eucaicl
50
Eucaiwl
52
Eucaiclw
54
Zuci -Auci - Euci
56
Eucim
58
Aucai
60
Aucaidpws
62
Nht - Kht - Eht
64
Nhtg - Ehtg
66
Zhta - Ahta - Ehta
68
Zhtaws - Ahtaws - Ehtaws
70
Zhtaiau - Ehtaiau
72
Ehtaimlau
74
Zhtarow - Ehtarow - Zhtao - Ehtao
76
Eucaiusph
78
Ehtaiusph
80
Ohtarow - Ohtarow60
82
Zuca
84
Et12Ai
86
Et12Ait
88
Et5Aiit
90
Et5Aidp
92
Et5Aidpws
94
Zucaddrow - Eucaddrow
96
Fuca3Dd
98
Nuca1Ddg-Nuca1Gruk-Zuca1Dg
100
Nuc1Gms-Zuc1Gms
102
Euc3Dpcag
104
Zppw - Appw - Eppw
106
Eppwesg60
110
Eppwelg60
112
Eucadd60
114
Zht7 - Zht76
116
Zucidc - Euciddc
118
Nuc1Ddrukp
120
Eppwesgfb-Eppwehgfb
122
Eppwelgfb
124
Zucai - Eucai - Nucai Ws
126
Eucaiwsguk
132
Eucaiwhguk
134
Vuca3G
136
Vuca3Wsg
138
Vucaig
140
Euc3Ddmcd
142
Eppwesgm - Eppwehgm
144
Eppwwelgm
146
Eppwesg6M
148
Eucaigm - Eucaidpjm - Eucaidpjm
150
Eucagrowm - Eucagrow6M
152
Eppwelg6M
154
Default Values
156
Hood Type
156
Pot Washer
157
Undercounter
158
User Interface and Main Board Connectors
159
Main Malfunctions Not Due to the Main Board
159
Connector Layout
159
Alarm Messages and Troubleshooting
166
Alarms that Stop the Dishwasher
166
Alarm Codes for Automatic Hood Type Dishwashers
166
Alarm's that Don't Stop the Dishwasher
170
List of Parameters for Subsequent Versions
173
