EFS - Dishwashing Systems Platform
Electrolux Professional
KEY
CN1 Rinse pump/wash pump/solenoid valve outputs
CN2 Pressure/atmospheric dishwasher solenoid valve connection
CN3 Detergent/rinse aid dispenser and drain pump outputs
CN5 Tank/boiler temperature sensor inputs
CN8 Energy peak controller input
CN9 Salt receptacle drain pump and low pressure solenoid valve outputs
CN11 Brine solenoid valve output
CN12 User interface inputs/outputs
CN15 Overflow/tank level/board feed input
CN16 User interface inputs/outputs and hood/door sensor input
CN17 Door microswitch connection

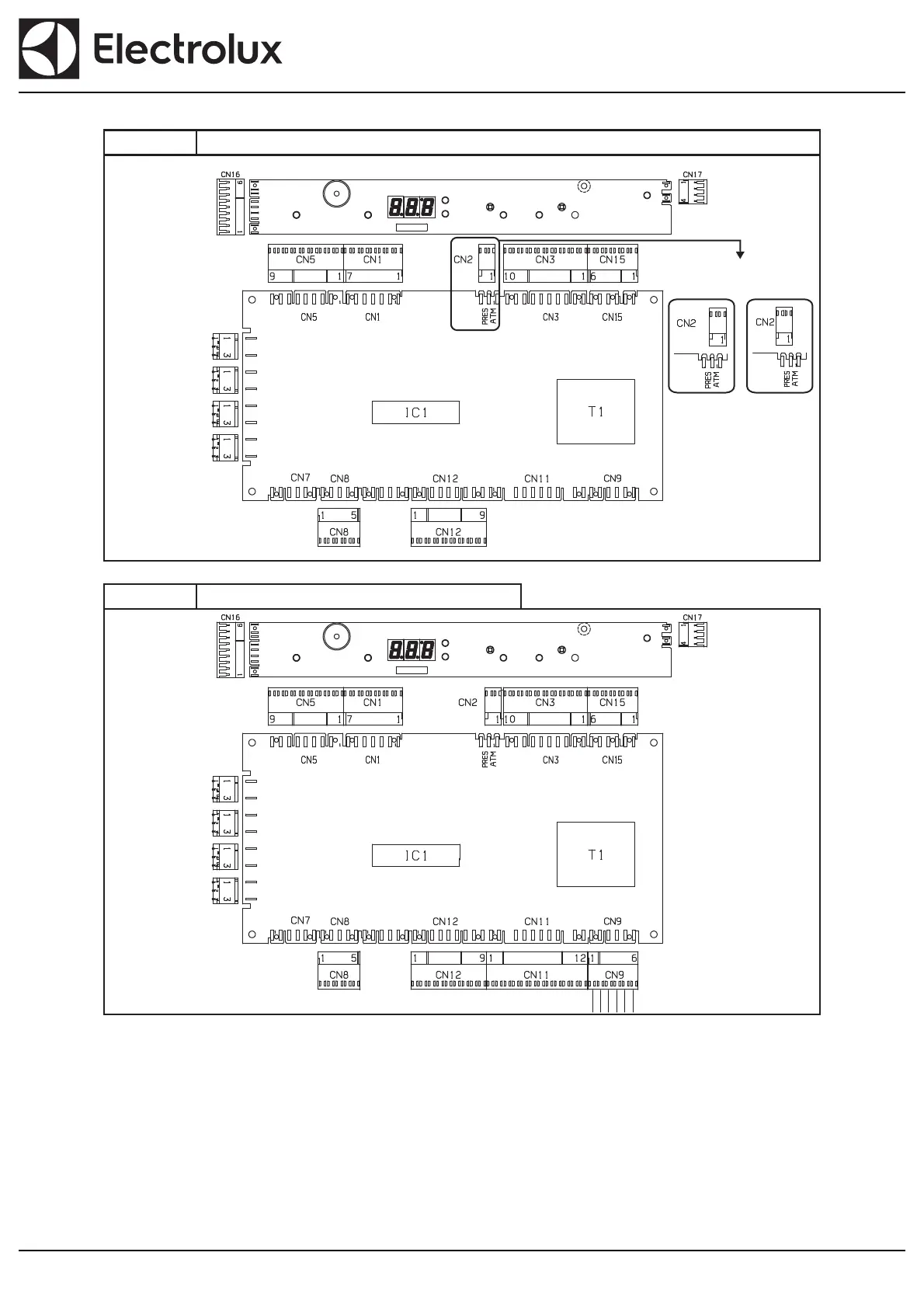

LAYOUT 16 NUC / EUC / ZUCI / AUCI /EUCI / ZUCA3 / FUCA3DD / NUCA1DDG / KUC / ZUCADDROW / EUCADDROW
LAYOUT 17 NUCWS / EUCWS
(NUC / EUC /
ZUCI / AUCI /
EUCI / KUC)
(ZUCA3 /
FUCA3DD /
NUCA1DDG /
ZUCADDROW /
EUCADDROW)
ATM PRES
