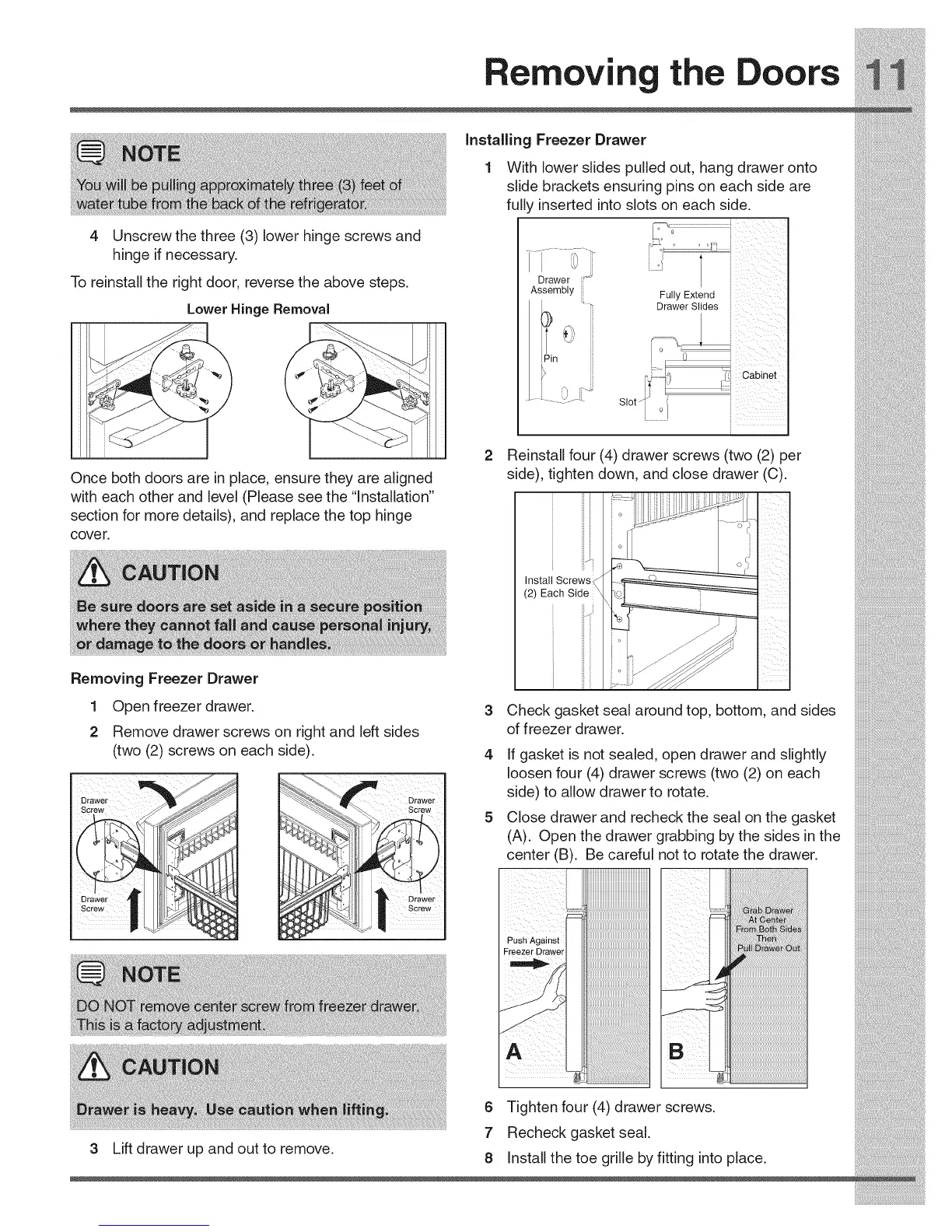

Removing the Doors
4 Unscrew the three (3) lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above steps.
LowerHinge Removal
Once both doors are in place, ensure they are aligned
with each other and level (Please see the "Installation"
section for more details), and replace the top hinge
cove r.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer onto
slide brackets ensuring pins on each side are
fully inserted into slots on each side.
i-.........,iii
Drawer _'
Assembly i
Fully Extend
Drawer Slides
Slot -
Cabinet
Reinstall four (4) drawer screws (two (2) per
side), tighten down, and close drawer (C).
Install Screws
(2) Each Side
i
v//////////////////////////¸
