Connecti
the Water Suppl

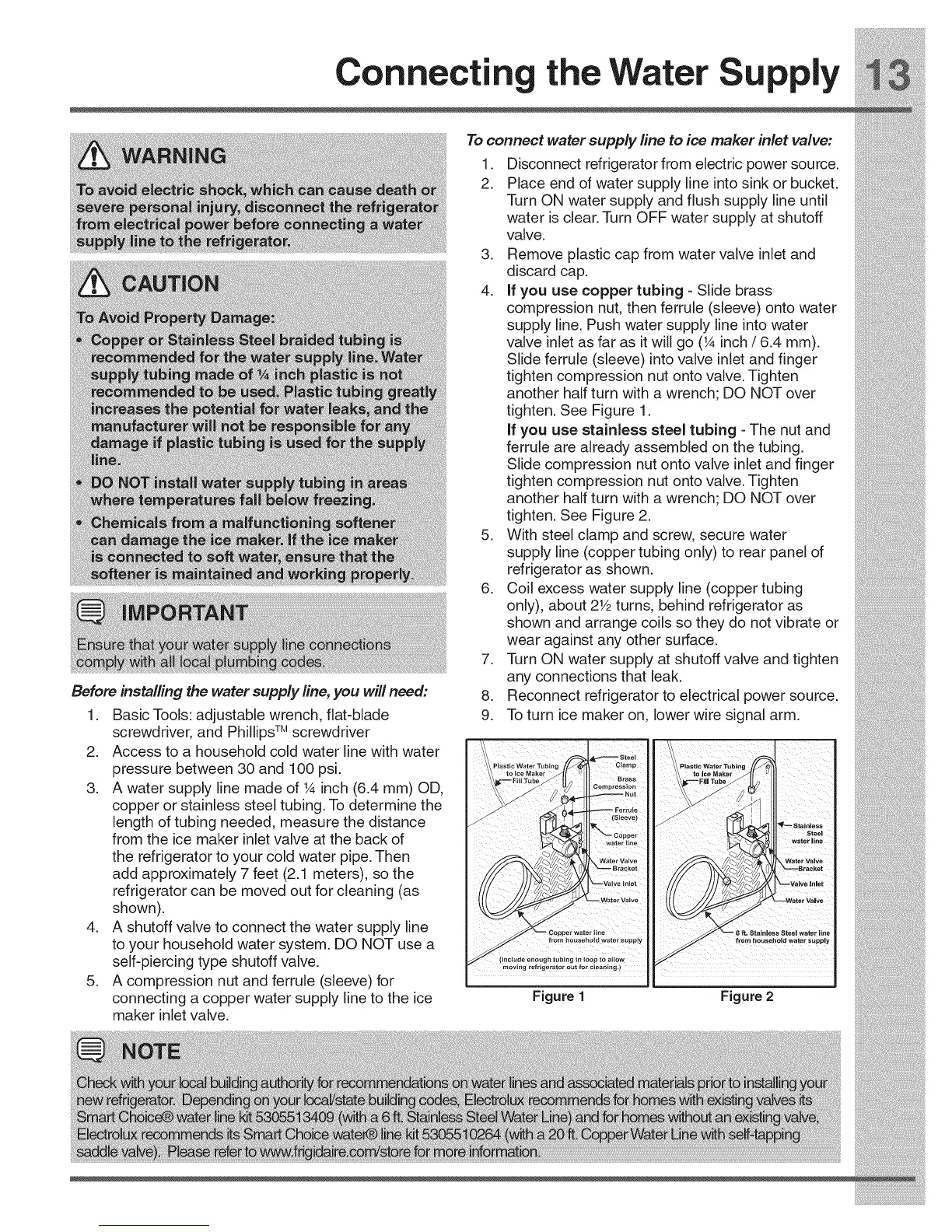

Toconnect water supply line to ice maker inlet valve:
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket.
Turn ON water supply and flush supply line until
water is clear. Turn OFF water supply at shutoff
valve.
3. Remove plastic cap from water valve inlet and
discard cap.
4. if you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto water
supply line. Push water supply line into water
valve inlet as far as it will go (X inch / 6.4 mm).
Slide ferrule (sleeve) into valve inlet and finger
tighten compression nut onto valve. Tighten
another half turn with a wrench; DO NOT over
tighten. See Figure 1.
if you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing.
Slide compression nut onto valve inlet and finger
tighten compression nut onto valve. Tighten
another half turn with a wrench; DO NOT over
tighten. See Figure 2.
5. With steel clamp and screw, secure water
supply line (copper tubing only) to rear panel of
refrigerator as shown.
6. Coil excess water supply line (copper tubing
only), about 2Y2turns, behind refrigerator as
To Next Page
