Electrolux EI23BC80KS - Raising;Lowering Door; Adjusting Flipper Mullion

9
Adjusting Flipper Mullion Screw
Installation
To adjust the flipper mullion:
1 Loosen the screw located on the flipper mullion
hinge.
2 Adjustippermullionheight.Forproper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
3 Retighten screw.
4 Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counterclockwise (when viewed from the bottom).
5 Retighten the screw, where applicable, ensuring it
is between the spokes of the set washer. Screw
will not be tight, just insert until it is flush with the
hinge.

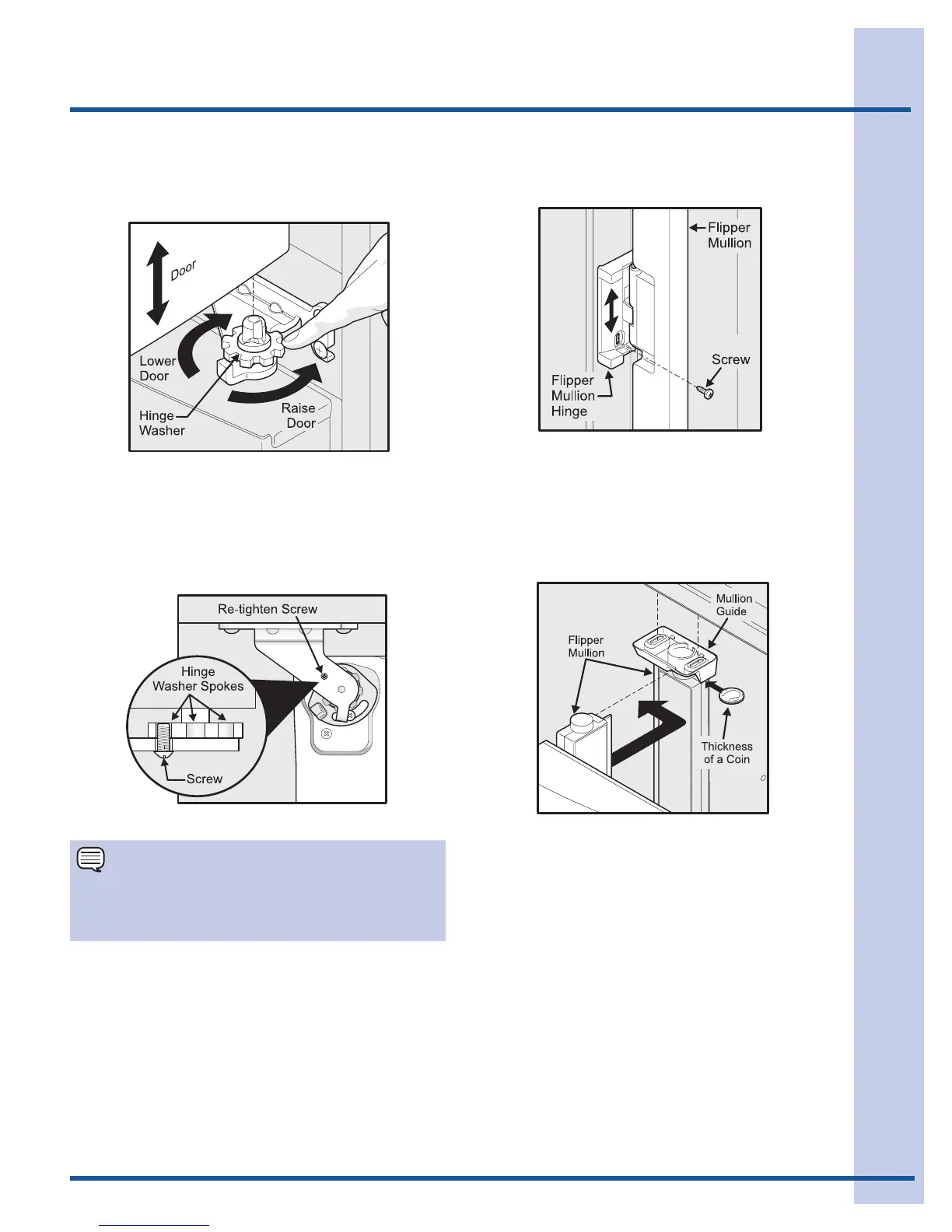

Adjusting Flipper Mullion Height
Screw (where applicable)
Raising/Lowering Door
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace
with the longer one supplied in the handle package.
