Connecting The Water Supply

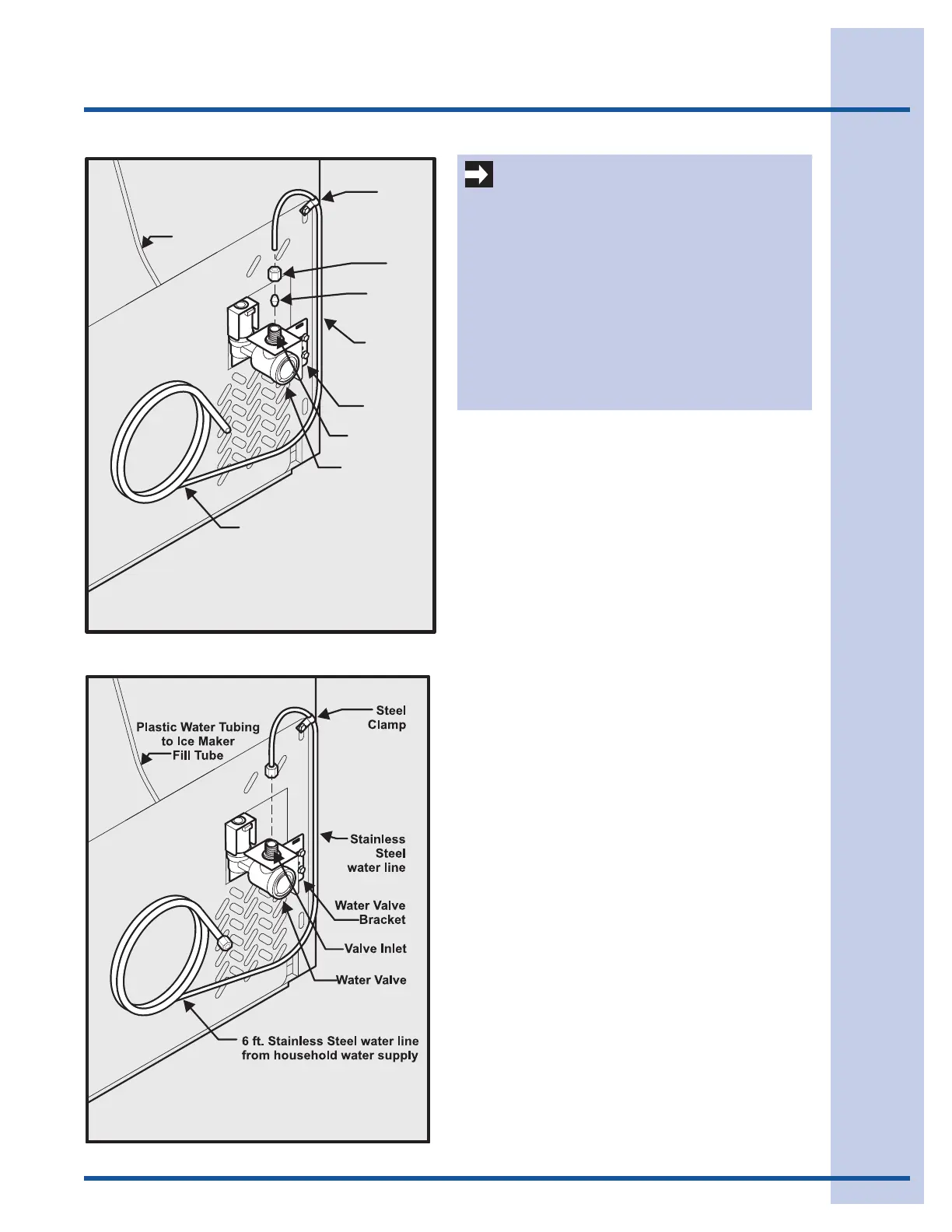

Figure 2
Figure 1
Copper water line
from household water supply
(Includeenough tubing in loop to allow
moving refrigerator out for cleaning.)
Ferrule
(Sleeve)
Copper
water line
WaterValve
Valve Inlet
Water Valve
Bracket
Steel
Clamp
Plastic Water Tubing
to Ice Maker
Fill Tube
Brass
Compression
Nut
IMPORTANT
Afterconnectingthewatersupply,referto“How
to Prime the Water Supply System” for important
information about priming an empty water supply
system.
Your refrigerator’s water supply system
includes several tubing lines, a water filter, a
water valve, and a water tank. To ensure that
your water dispenser works properly, this
system must be completely filled with water
when your refrigerator is first connected to
the household water supply line.
