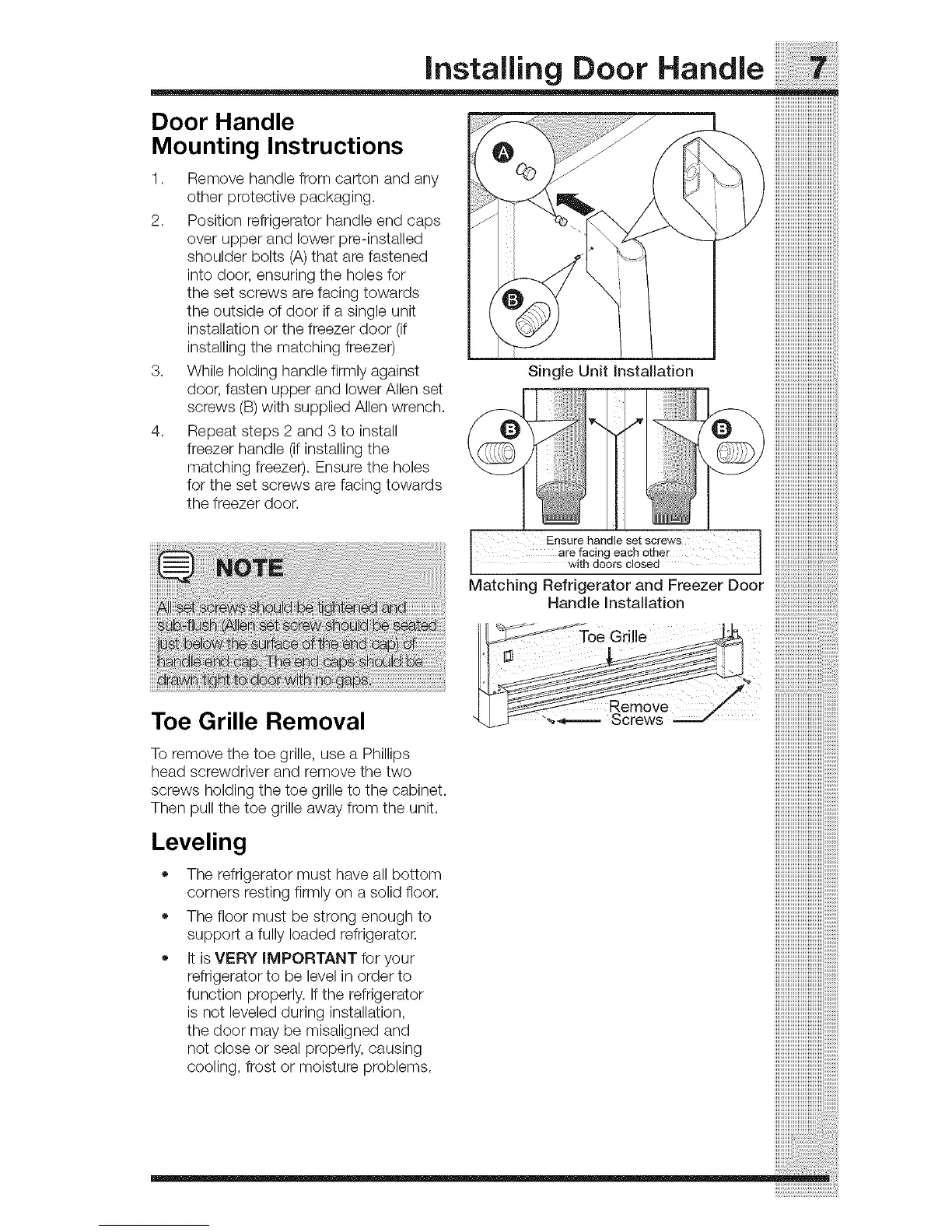

Installing Door Handle
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Door Handle iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Mounting Instructions iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
1. Remove handle from carton and any
other protective packaging.
2. Position refrigerator handle end caps
over upper and lower pre-installed
shoulder bolts (A)that are fastened
into door, ensuring the holes for
the set screws are facing towards
the outside of door if a single unit
installation or the freezer door (if
installing the matching freezer)
3. While holding handle firmly against
door, fasten upper and lower Allen set
screws (B)with supplied Allen wrench.
4. Repeat steps 2 and 3 to install
freezer handle (if installing the
matching freezer). Ensure the holes
for the set screws are facing towards
the freezer door.
Single Unit Installation
with doors closed
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Toe Grille Removal
To remove the toe grille, use a Phillips
head screwdriver and remove the two
screws holding the toe grille to the cabinet.
Then pull the toe grille away from the unit.
Leveling
o
o
o
The refrigerator must have all bottom
corners resting firmly on a solid floor.
The floor must be strong enough to
support a fully loaded refrigerator.
It is VERY iMPORTANT for your
refrigerator to be level in order to
function properly. Ifthe refrigerator
is not leveled during installation,
the door may be misaligned and
not close or seal properly, causing
cooling, frost or moisture problems.
Matching Refrigerator and Freezer Door
Handle Installation
Toe Grille
Remove
:'-,_=--=-= Screws
