4. PRODUCT DESCRIPTION

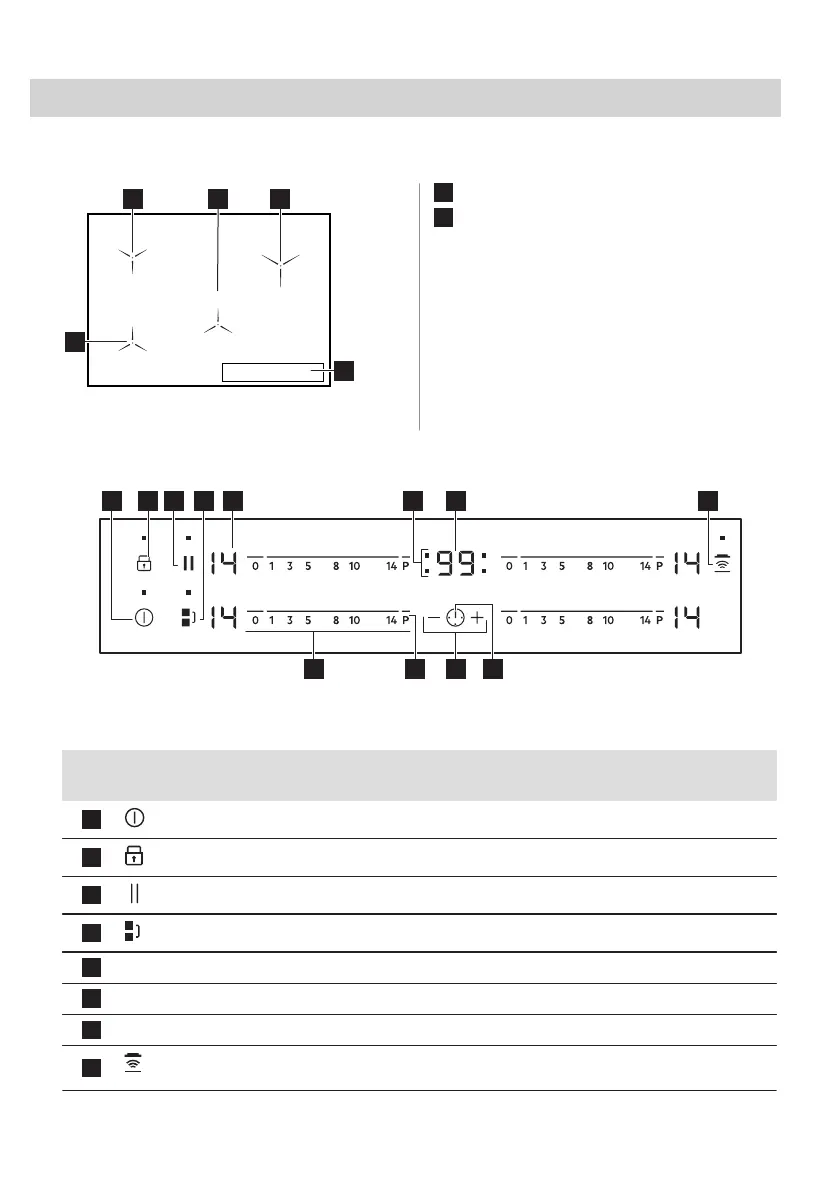

4.1 Cooking surface layout
1 1 1
2
1
1
Induction cooking zone
2
Control panel
4.2 Control panel layout
7 852 43
9
1
12 1011
6
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the hob.
2
Lock / Child Safety Device To lock / unlock the control panel.
3
Pause To activate and deactivate the function.
4
Bridge To activate and deactivate the function.
5
- Heat setting display To show the heat setting.
6
- Timer indicators of cooking zones To show for which zone you set the time.
7
- Timer display To show the time in minutes.
8
Hob²Hood To activate and deactivate the manual mode of the
function.
