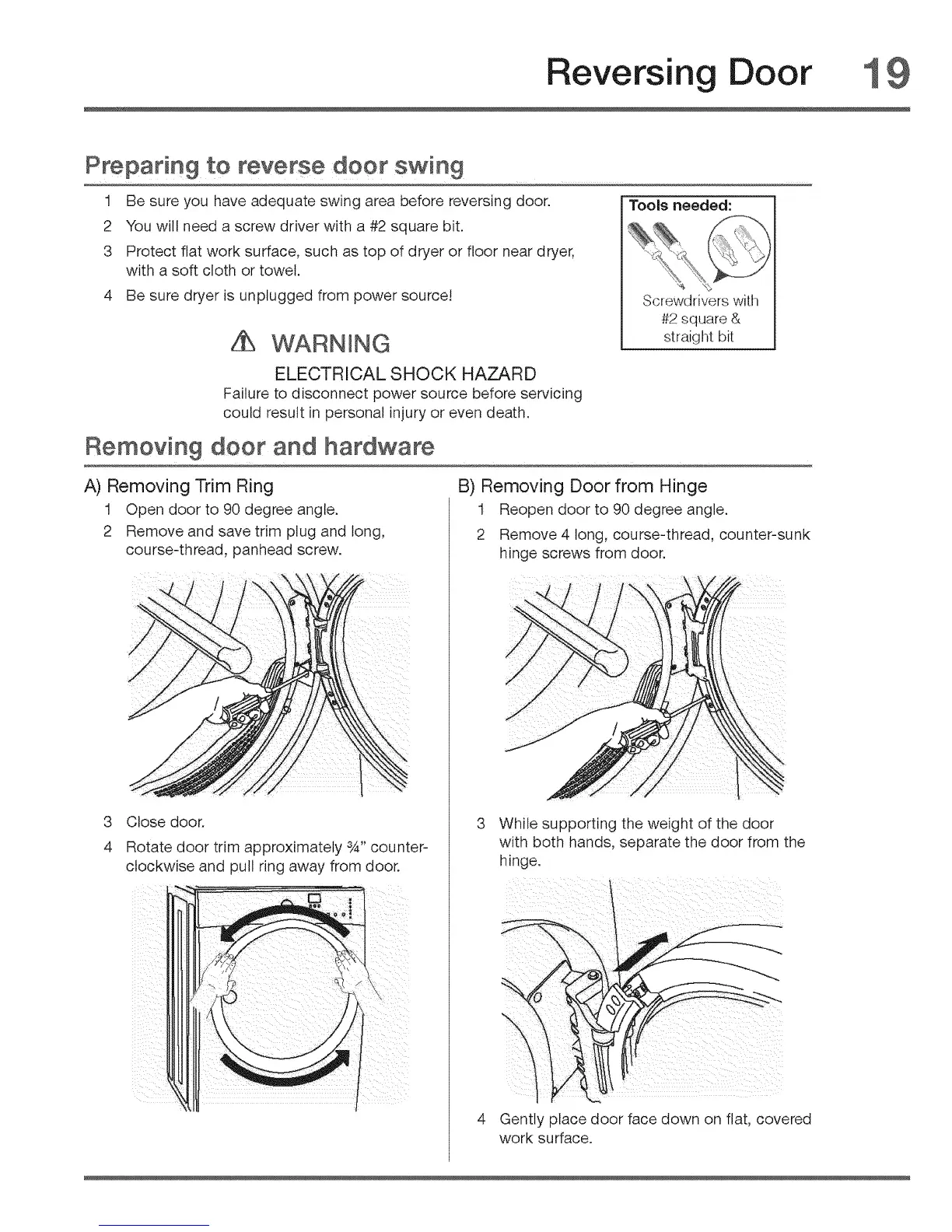

Reversing Door 9
Preparing to reverse door swing
1 Be sure you have adequate swing area before reversing door.
2 You will need a screw driver with a #2 square bit.
3 Protect flat work surface, such as top of dryer or floor near dryer,
with a soft cloth or towel.
4 Be sure dryer is unplugged from power source!
WARNING
Tools needed:
Screwdrivers with
#2 square &
straight bit
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
Removing door and hardware
A) Removing Trim Ring
1 Open door to 90 degree angle.
2 Remove and save trim plug and long,
course-thread, panhead screw.
3
4
Close door.
Rotate door trim approximately 3A"counter-
clockwise and pull ring away from door.
B) Removing Door from Hinge
1 Reopen door to 90 degree angle.
2 Remove 4 tong, course-thread, counter-sunk
hinge screws from door.
While supporting the weight of the door
with both hands separate the door from the
hinge.
\
\
\
4 Gently place door face down on flat, covered
work surface.
To Next Page
