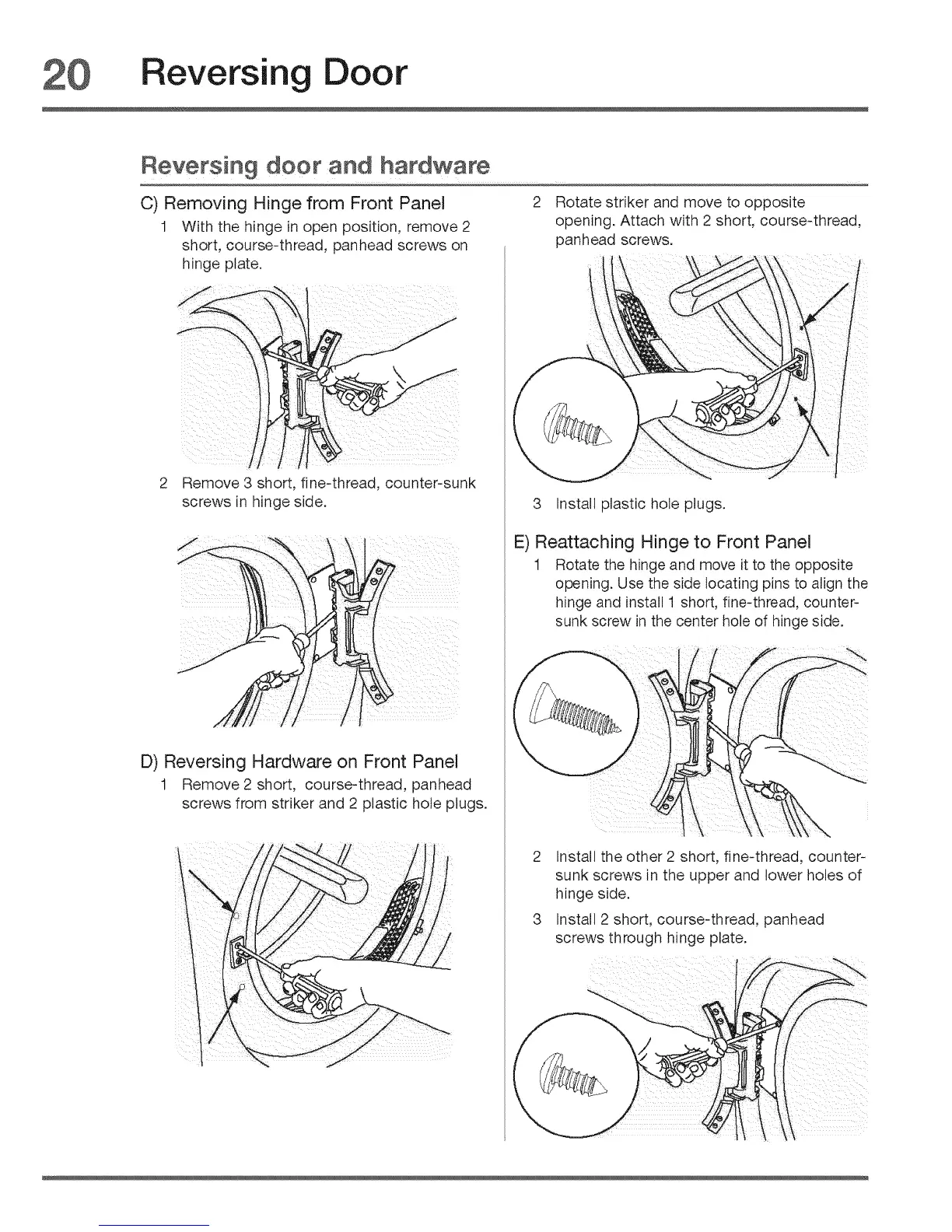

Reversing Door
Reversin9 door and hardware
C) Removing Hinge from Front Panel
1 With the hinge in open position, remove 2
short, course-thread, panhead screws on
hinge plate.
Remove 3 short, fine-thread, counter-sunk
screws in hinge side.
D) Reversing Hardware on Front Panel
1 Remove 2 short, course-thread, panhead
screws from striker and 2 plastic hole plugs.
Rotate striker and move to opposite
opening. Attach with 2 short, course-thread,
panhead screws.
3 Install plastic hole plugs.
E) Reattaching Hinge to Front Panel
1 Rotate the hinge and move it to the opposite
opening. Use the side locating pins to align the
hinge and install 1 short, fine-thread, counter-
sunk screw in the center hole of hinge side.
2 Install the other 2 short, fine-thread, counter-
sunk screws in the upper and lower holes of
hinge side.
3 Install 2 short, course-thread, panhead
screws through hinge plate.
