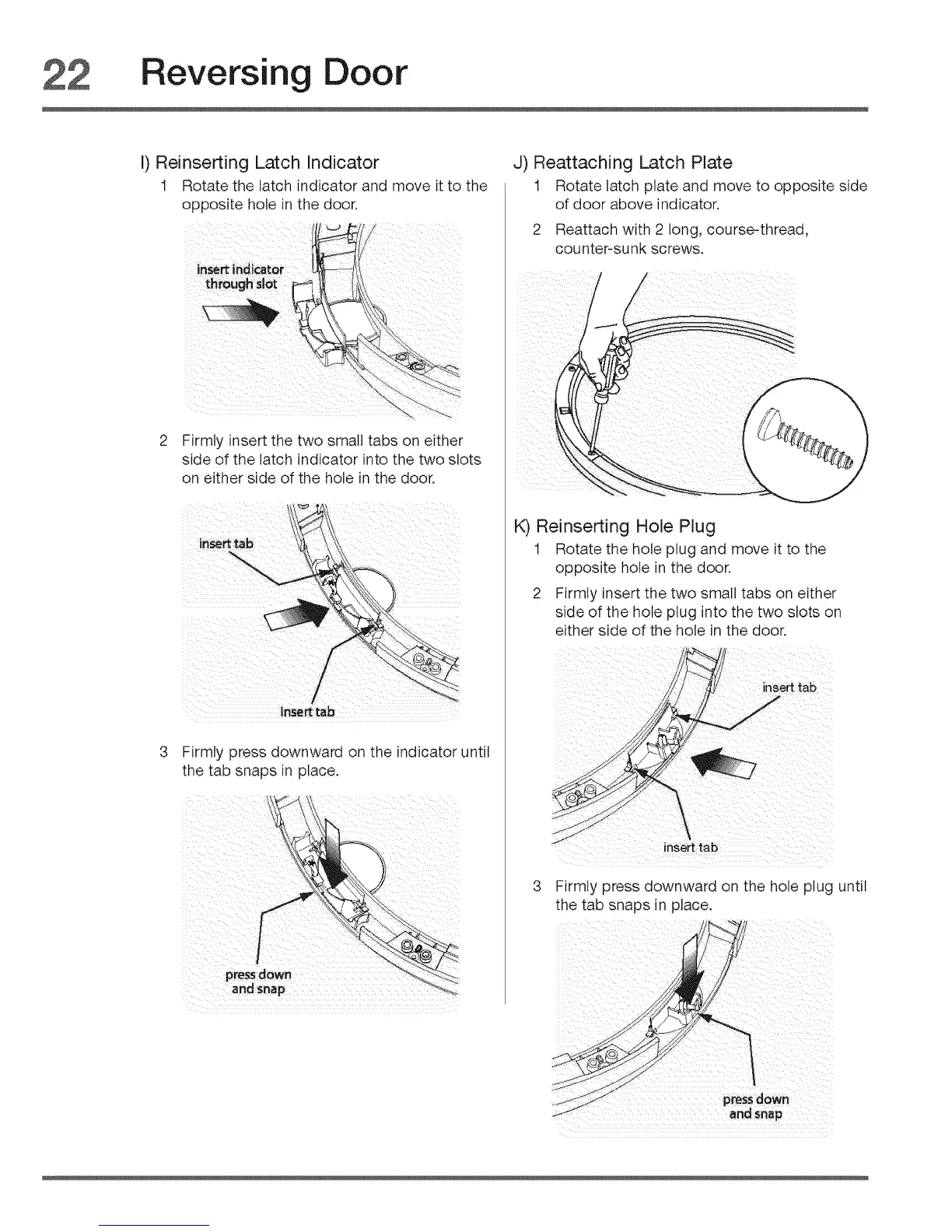

22 Reversing Door
I) Reinserting Latch Indicator
1 Rotate the latch indicator and move it to the
opposite hole in the door.
/
insertindicator
through slot
2 Firmly insert the two small tabs on either
side of the latch indicator into the two slots
on either side of the hole in the door.
!
inserttab
3 Firmly press downward on the indicator until
the tab snaps in place.
J
pressdown
andsnap
J) Reattaching Latch Plate
1 Rotate latch plate and move to opposite side
of door above indicator.
2 Reattach with 2 long, course-thread,
counter-sunk screws.
K) Reinserting Hole Plug
1 Rotate the hole plug and move it to the
opposite hole in the door.
2 Firmly insert the two small tabs on either
side of the hole plug into the two slots on
either side of the hole in the door.
insertta5
inserttab
3 Firmly press downward on the hole plug until
the tab snaps in place.
