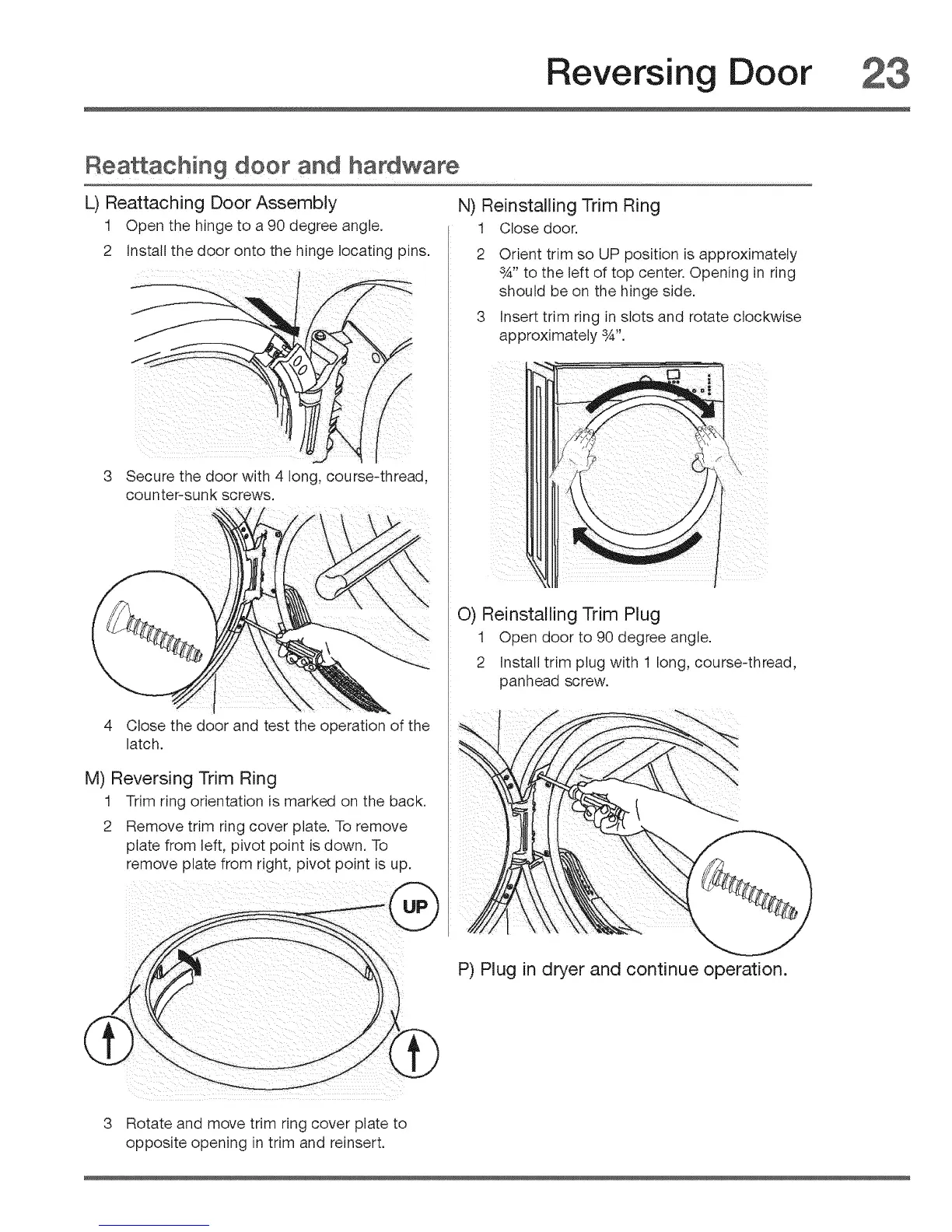

Reversing Door 23
Reattaching door and hardware
L) Reattaching Door Assembly
1 Open the hinge to a 90 degree angle.
2 Install the door onto the hinge locating pins.
3 Secure the door with 4 long, course-thread,
counter-sunk screws.
\
4 Close the door and test the operation of the
latch.
M) Reversing Trim Ring
1 Trim ring orientation is marked on the back.
2 Remove trim ring cover plate. To remove
plate from left, pivot point is down. To
remove plate from right, pivot point is up.
N) Reinstalling Trim Ring
1 Close door.
2 Orient trim so UP position is approximately
3A" to the left of top center. Opening in ring
should be on the hinge side.
3 Insert trim ring in slots and rotate clockwise
approximately 3A".
O) Reinstalling Trim Plug
1 Open door to 90 degree angle.
2 Install trim plug with 1 long, course-thread,
panhead screw.
P) Plug in dryer and continue operation.
3 Rotate and move trim ring cover plate to
opposite opening in trim and reinsert.
