Installation Requirements

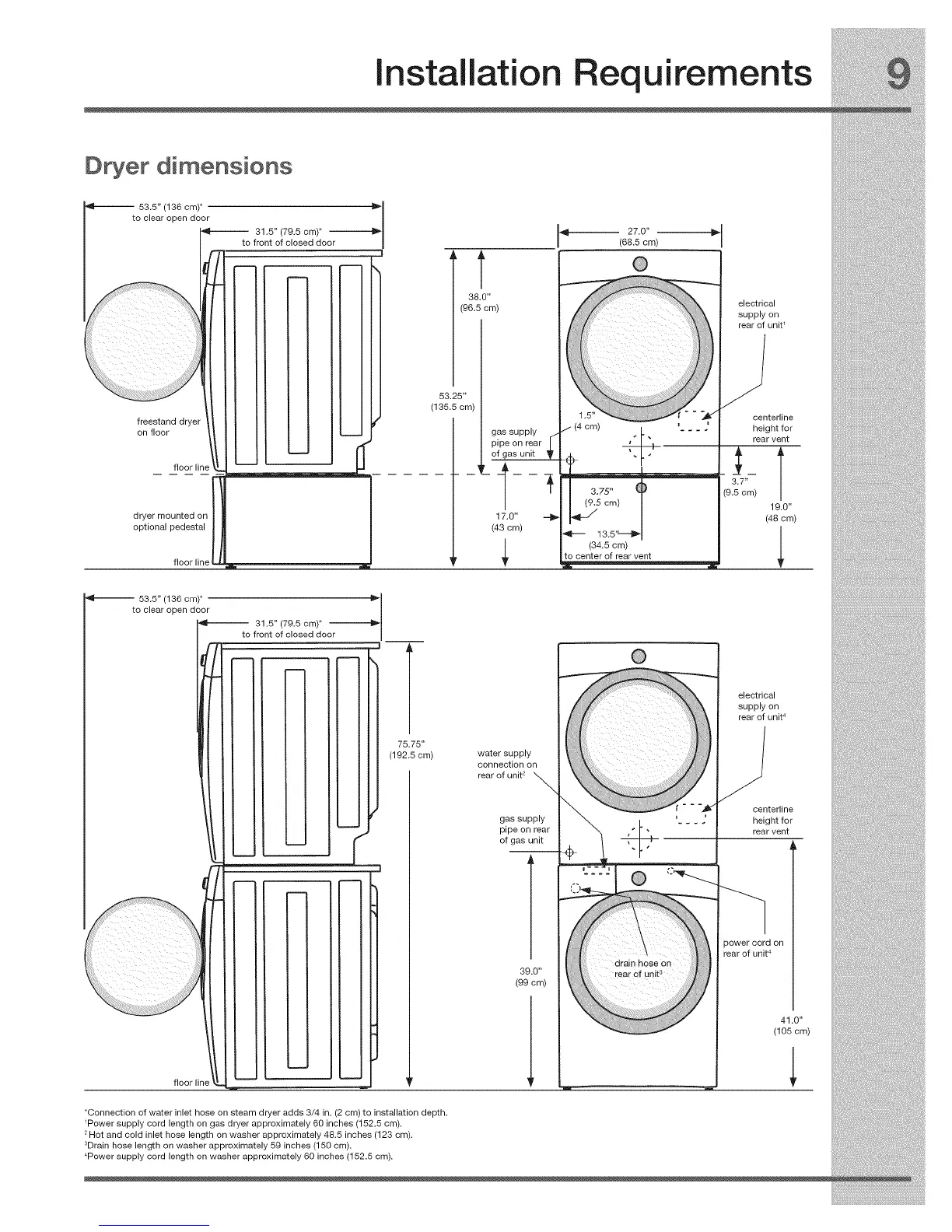

Dryer dimensions
53.5" (136 cm)*
to clear open door
freestand dryer
on floor
floor line
31.5" (79.5 cm)*
to front of closed door
..J
m
dryer mounted on
optional pedestal
53.5" (136 cm)*
to clear open door
floor line
31.5" (79.5 cm)*
to front of c osed door
75.75"
(192.5 cm)
*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
_Power supply cord length on gas dryer approximately 60 inches (152.5 cm).
Hot and cold inlet hose length on washer approximately 48.5 inches (123 cm).
3Drain hose length on washer approximately 59 inches (150 cm).
4Power supply cord length on washer approximately 60 inches (152.5 cm).
t
38,0"
(96.5 cm)
27.0" --
(68.5 cm)
53.25"
(135.5 cm)
gas supply
Dpe on rear
of gas unit
l--
17.0"
(43 cm)
electrical
supply on
rear of unit _
centerline
height for
rear vent
19.0"
(48 cm)
water supply
connection on
rear of unit 2 \
\
gas supply
pipe on rear
of gas unit
39.0"
(99 cm)
drain hose on
rear of uniP
electrical
supply on
rear of unit 4
centerline
height for
rear vent
)ower cord on
rear of unit 4
41.0"
(105 cm)
