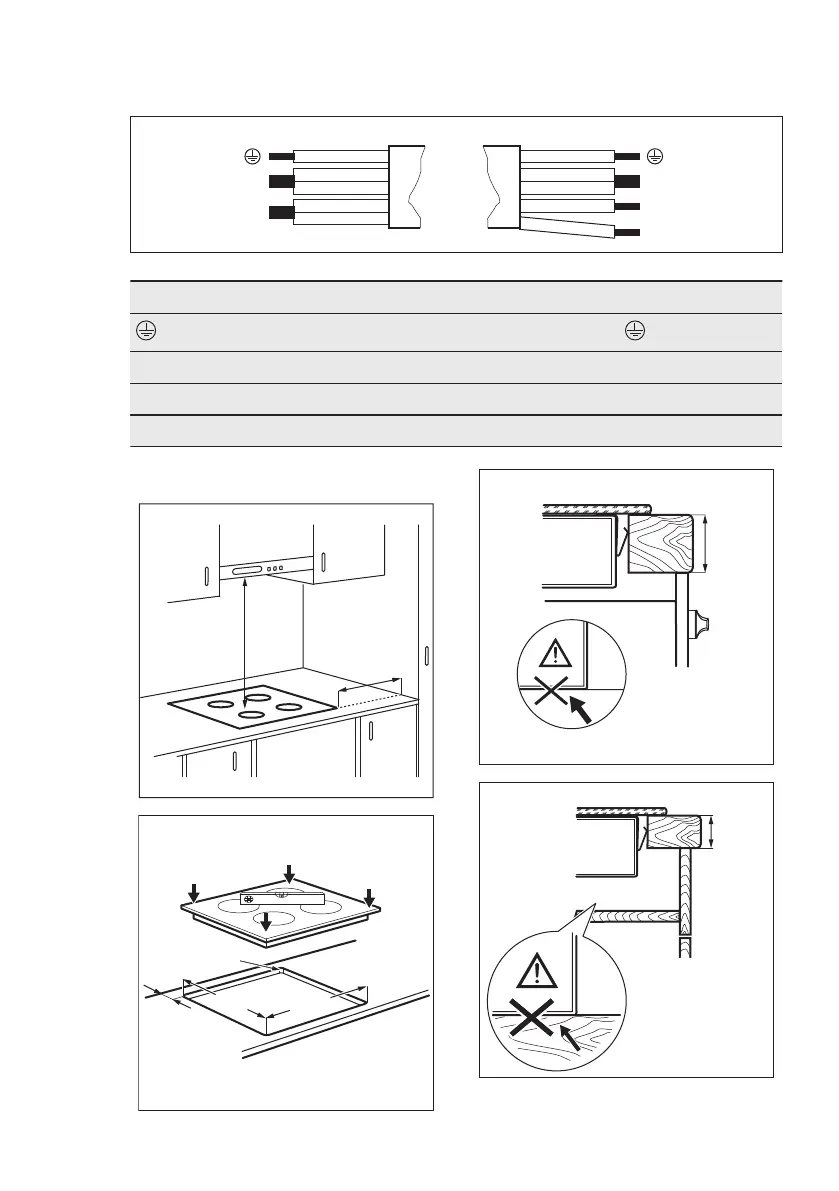

Electrolux EIV65343 - Page 23

Cable cross section
N
L1
N
L
230V~ 400V 2~N
L2
One-phase connection - 230 V~ Two-phase connection - 400 V 2 ~ N
Green - yellow Green - yellow
N Blue and blue Blue and blue N
L Black and brown Black L1
Brown L2
9.4 Assembly
min.
50mm
min.
500mm
R 5mm
min.
55mm
560
+1
mm
490
+1
mm
min.
28 mm
min.
12 mm
ENGLISH 23
