7

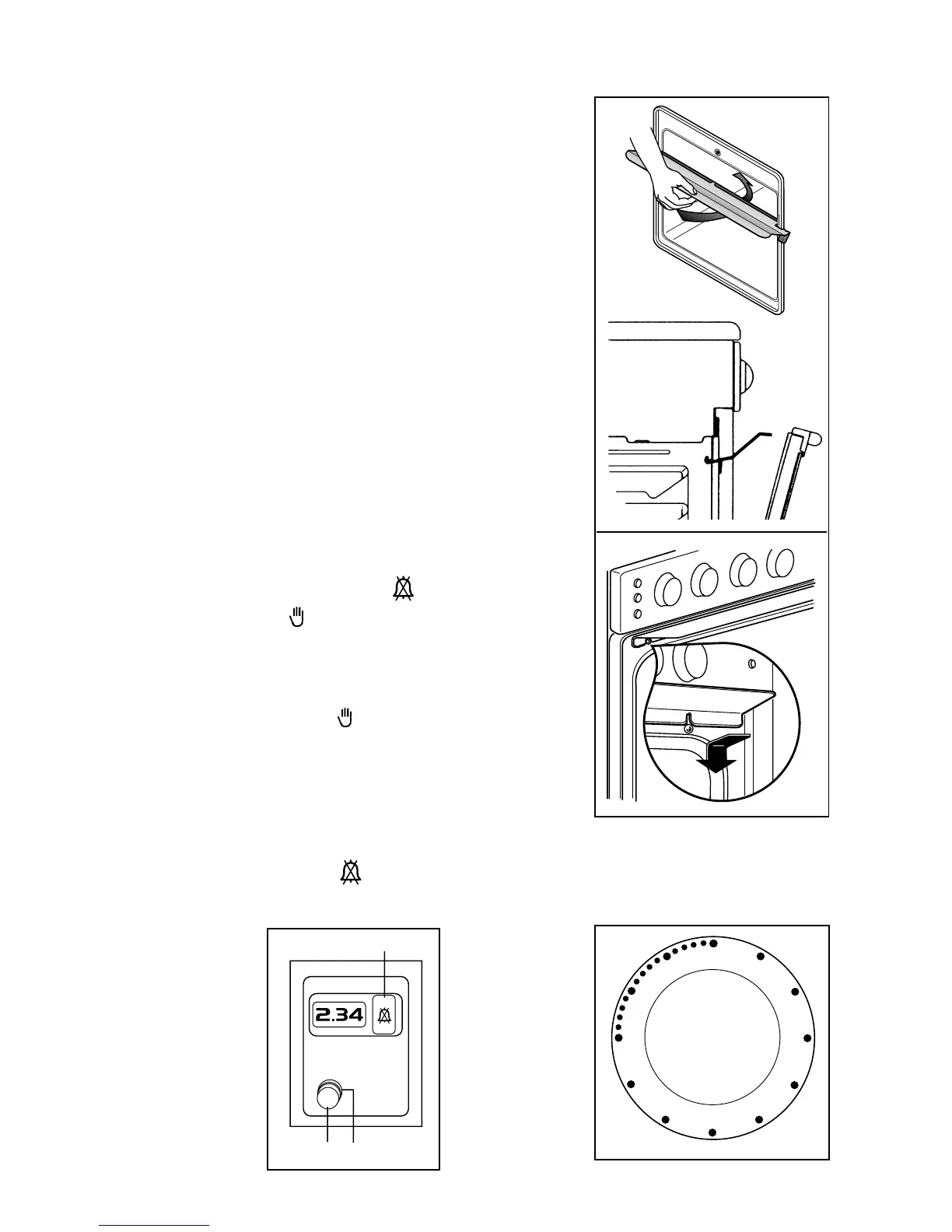

Fig. 10
Oven light switch
It allows the oven internal light to be switched on.
Mechanical minute-minder
The minute-counter may be set for a maximum time of one
hour. The regulation knob (fig. 11) must be turned clock-wise
until the 60-minute position is reached and then anti-
clockwise to the required time.
Once the pre-set time has elapsed, a signal will be heard
which automatically cuts out. The oven, however, will remain
on.
0
51
0
3
54
FO 2124
End of cooking programmer
The end of cooking programmer (EK 6735 - 9735) has the
function of switching off the oven at the end of pre-selected
cooking time. The programmer has an electric clock which
shows the time of day and a timer with an acoustic signal.
Fig. 12 illustrates the programmers commands; switches A
and B carry out the necessary regulations foreseen, as
follows:
l Switch A
Turned in a clockwise direction allows to adjust the time
shown on the digital clock (at the time of installation, after
electricity cuts, to advance or turn back, etc.).
l Switch B
Turned in a clockwise direction sets:
- the length of cooking time (max. 210 minutes);
- interruption of the acoustic signal (position );
- manual operation (position ).
The above signals appear on face C.
l Manual operation
The oven can be used normally, i.e. without any programme.
In such case, switch B of the programmer should be turned
in a clockwise direction until symbol coincides with the
mark on face C.
l Programmed operation of the oven
- Prearrange the food to be cooked;
- turn switch B in a clockwise direction and preset the minutes
presumed for the end of cooking on switch C;
- turn the oven switch to the temperature required.
At the end of the pre-set time an acoustic signal will be heard;
to switch it off, turn knob B to symbol visible on face C,
corresponding to the mark on the face itself.
FO2280
A
Fig. 11
FO 2326
A
B
C
FO 0375
B
FO 0158
Fig. 12
