16 electrolux.com.au

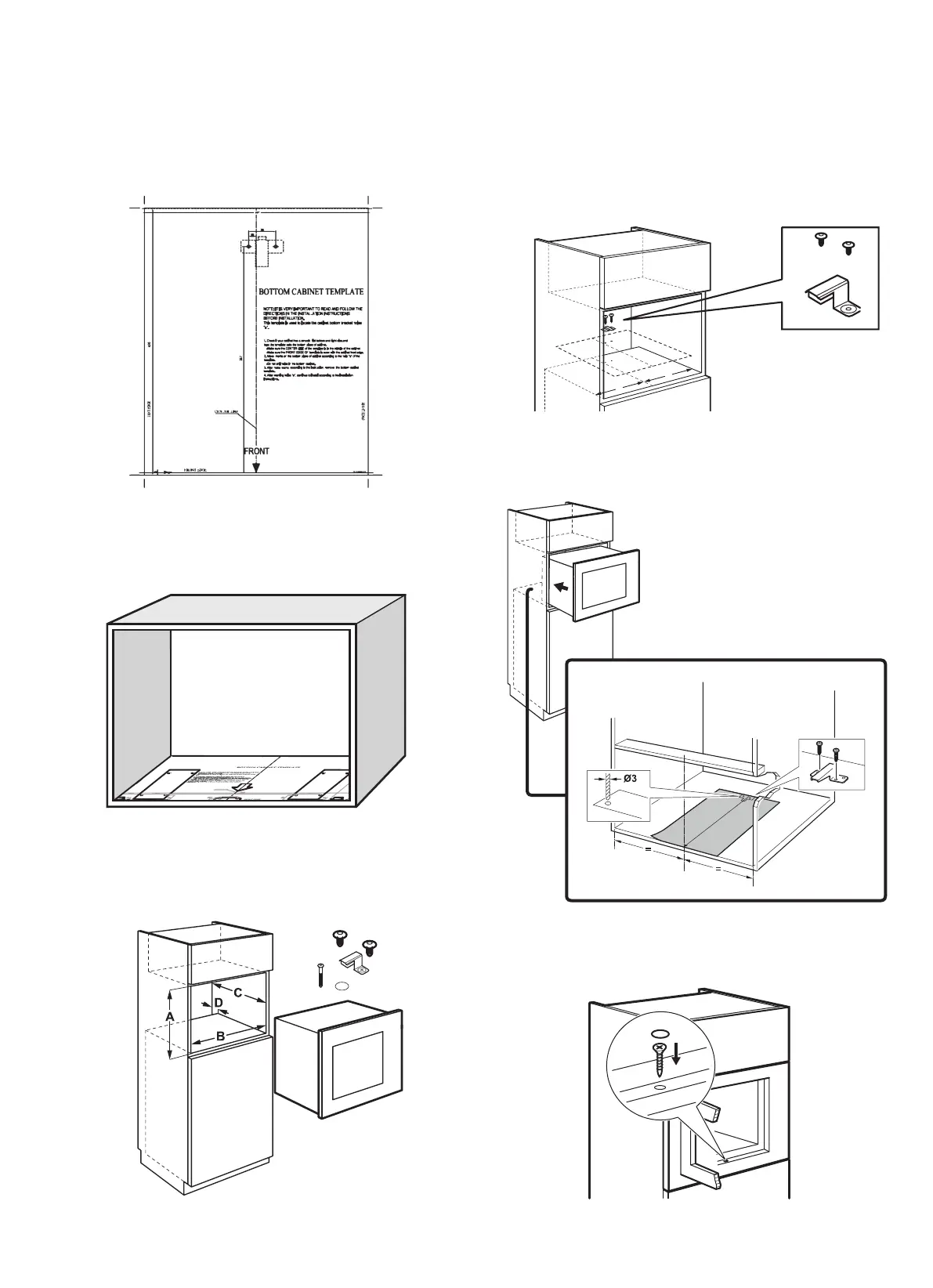

Preparing the cabinet
Read the instructions on the bottom cabinet template and
place the template on the bottom plane of the cabinet.
1. With a pencil, make marks on the bottom plane of the
template according to the marks ‘a’ on the template.
2. Check if the dimensions of the furniture meet the
installation distances. Check screws provided.
3. Put the template on the bottom of the cabinet and
mark the spots for screws. Remove the template
and fix the bracket with the screws.
=
=
4. Install the appliance. Make sure the bracket locks
the back of the appliance.
5. Open the door and fix the appliance to the cabinet
with a screw.
INSTALLATION
