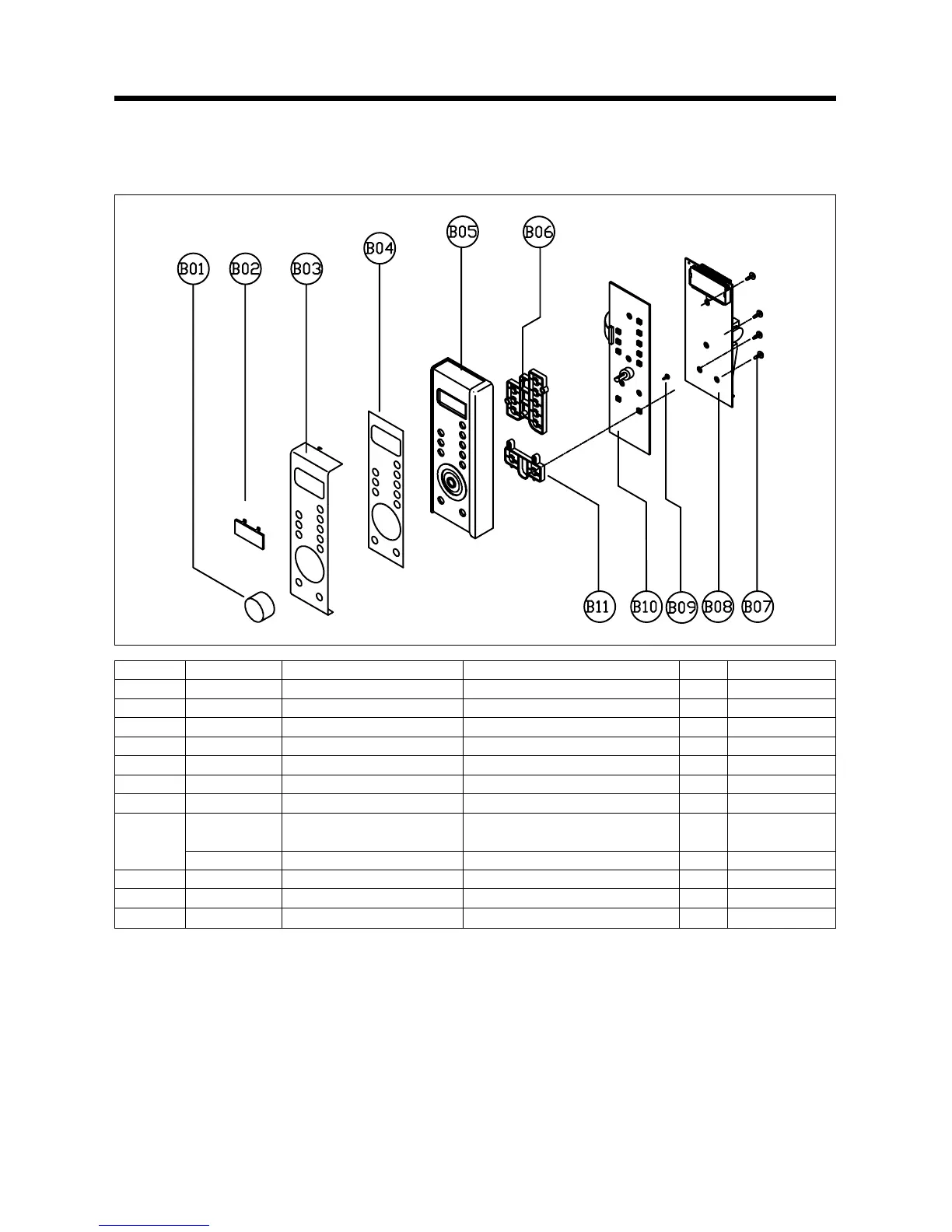

2) KOC-9N5T7S,9N5T7R,9N5T7S21
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
B01 3513406330 KNOB VOLUME ABS SG-175 SG-0760D 1
B02 3515501820 WINDOW DISPLAY PMMA 1
B03 3511608110 DECORATOR C-PANEL SUS430 T0.5 H/L 1
B04 3516005600 SPECIAL DOUBLE TAPE HOSTIC 550M(D)TO.15 1
B05 3516725260 CONTROL-PANEL ABS XR-401 SG-0320G 1
B06 3516909080 BUTTON FUNCTION-A ABS SG-175 SG-0760D SPRAY 1
B07 71222401211 SCREW TAPPING T2S TRS 4*12 MFZN 4
PKMPMSA200 PCB MAIN AS KOC-9N4T7S 1
KOC-9N5T7S,
B08 9N5T7S21
PKMPMSA220 PCB MAIN AS KOC-9N5T7R 1 KOC-9N5T7R
B09 7121301011 SCREW TAPPING T2S PAN 3*10 MFZN 5
B10 PKBPMSA200 PCB SUB AS KOC-9N4T7S 1
B11 3516909090 BUTTON FUNCTION-B ABS SG-175 SG-0760D SPRAY 1
(1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
(2) Remove four screws(B07) which secure the PCB Main ASS’Y.
(3) Pull out the Main PCB assembly(B08).
(4) Remove four screws(B09) which secure the PCB Sub ASS’Y.
(5) Pull out the Sub PCB assembly(B10).
(6) Pull out the Knob volume(B01) from the Sub PCB assembly.
(7) Pull out ten buttons from the control panel.
(8) Pull out Decorator control panel(B03) from the control panel.
(9) Pull out Window display(B02) from the control panel.
(10)Reverse the above steps for reassembly.
✔ Caution
:
In this Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center
