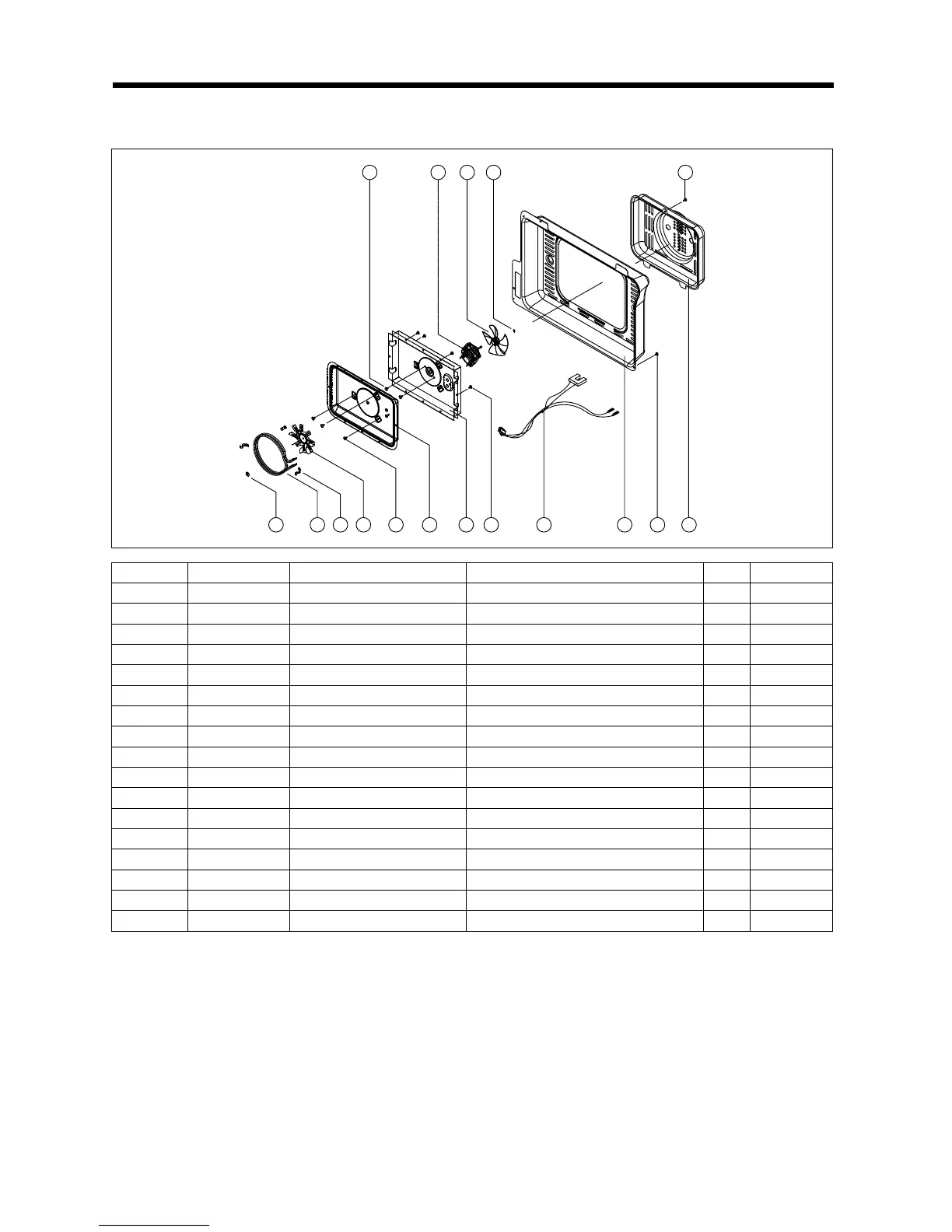

11. To remove Rear heater assembly parts.
1) Remove a screw and pull out Cover motor *B .
2) Remove a screw and pull out Cover *B .
3) Pull out the Harness convection-B .
4) Remove four screws and then pull out the Rear heater assembly.
5) Remove a Nut and the pull out the Fan convection .
6) Remove three screws and then separate the Cover heater *B and the lnsulator heater *B .
7) Pull out the Heater from the Cover Heater *B .
8) Remove two screw and then separate the lnsulator heater *B and Motor shaded pole .
9) Remove the C-Ring and then pull out the Fan from Motor shaft.
10)Reverse the above steps for reassebly.
REF NO. PART CODE PART NAME DESCRIPTION Q TY REMARK
2 3511407300 COVER MOTOR*B SA1D-80 T0.5 1
1 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 1
3 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 1
4 3511407900 COVER*B SA1D-80 T0.5 1
5 3512767611
HARNESS CONVECTION
KOC-924T0S ALTERNATE 1
6 7113400814 SCREW TAPPING T1 BIN 4*8 MFNI 4
8 3511409800 COVER HEATER*B SA1D-80 T0.5 1
7 3513303400 INSULATOR HEATER*B SBHG-1 T0.5 1
9 7113400814 SCREW TAPPING T1 BIN 4*8 MFNI 3
10 3511800700 FAN CONVECTION SA1D-80 T0.5 1
11 3513002300 HOLDER HEATER SUS 304 T0.5 3
12 3512801800 HEATER 230V 1400W 1R18344 1
13 7400104011 WASHER PLAIN PW-1-4 MFZN 1
14 7601400811 SCREW MACHINE PAN 4*8 SW MFZN 2
15 3963514330 MOTOR SHADED POLE 230V 50Hz MW10CA-T03 1
16 3511800900 FAN PBT 1
17 7402704600 RING C CR-5 SK5 1
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center
