EMM21000 EN
- 10 -

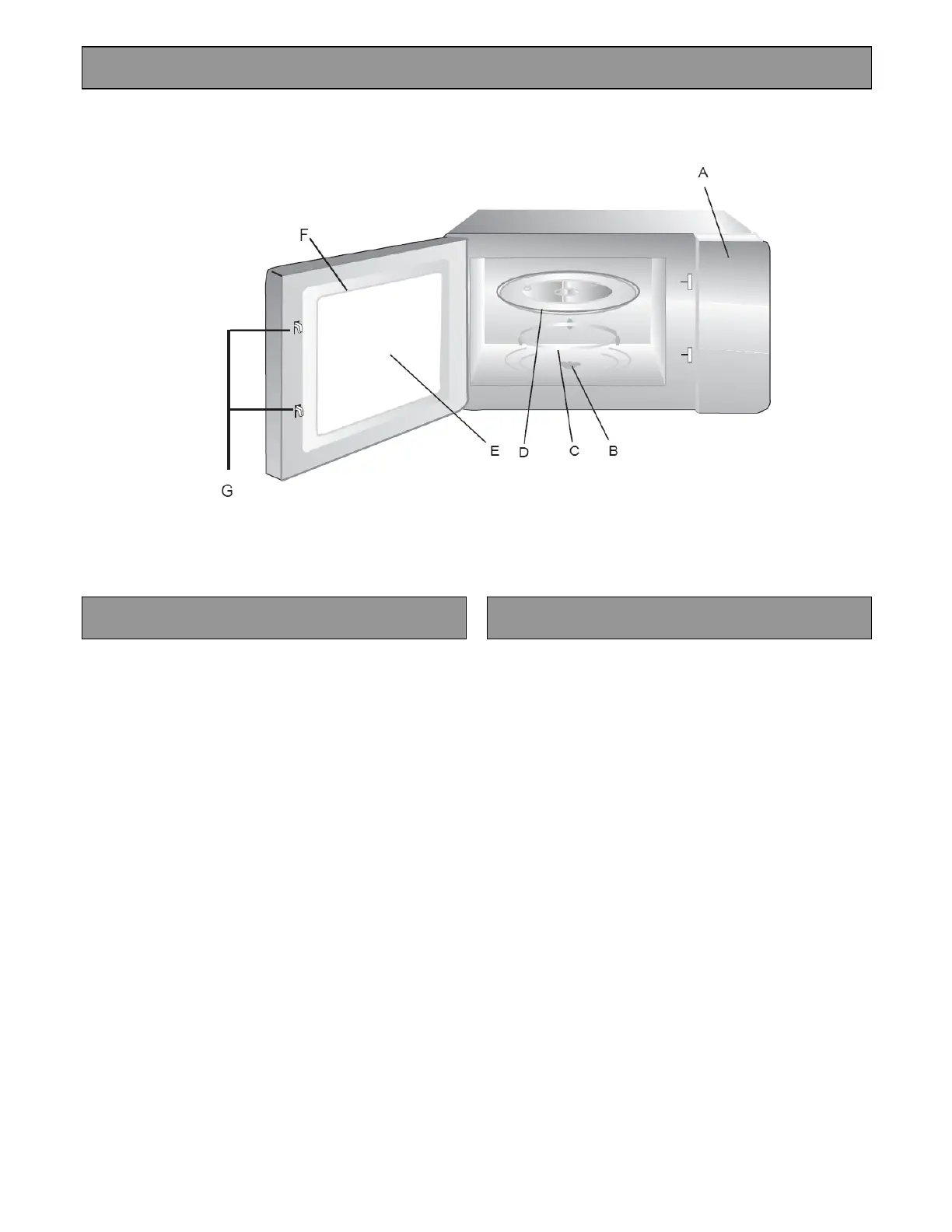

A. Control panel.
B. Turntable drive shaft
C. Turntable support and roller assembly. Place the
support on the floor of the cooking chamber to
support the turntable.
D. Glass turntable. Food in a suitable container is
placed on this tray for cooking. Do not use the
oven without the turntable.
E. Viewing window. Food can be seen through this
window while cooking
F. Oven door and seal. Oven door must always be
closed during cooking and the faces free from dirt
and build up of food
G. Latch hook and safety interlock system.
1. Place the turntable support on the cavity Bottom.
2. Place the turntable on top of the turntable support
as shown in the diagram. Make sure that turntable
hub is securely locked in the turntable shaft.
Never place the turntable upside down.
• Both turntable and turntable support must
always be used during cooking.
• All food and containers of food are always
placed on this turntable for cooking.
• This turntable rotates clockwise and
anticlockwise; this is normal.
How to operate your microwave oven
Name and function of parts Turntable Installation
