Installation
Installing the appliance
1. Remove all packaging and check
carefully for any signs of damage.
2. Fit the appliance into the kitchen cup-
board slowly, and without force, until
the front frame of the oven seals
against the front opening of the
cupboard.

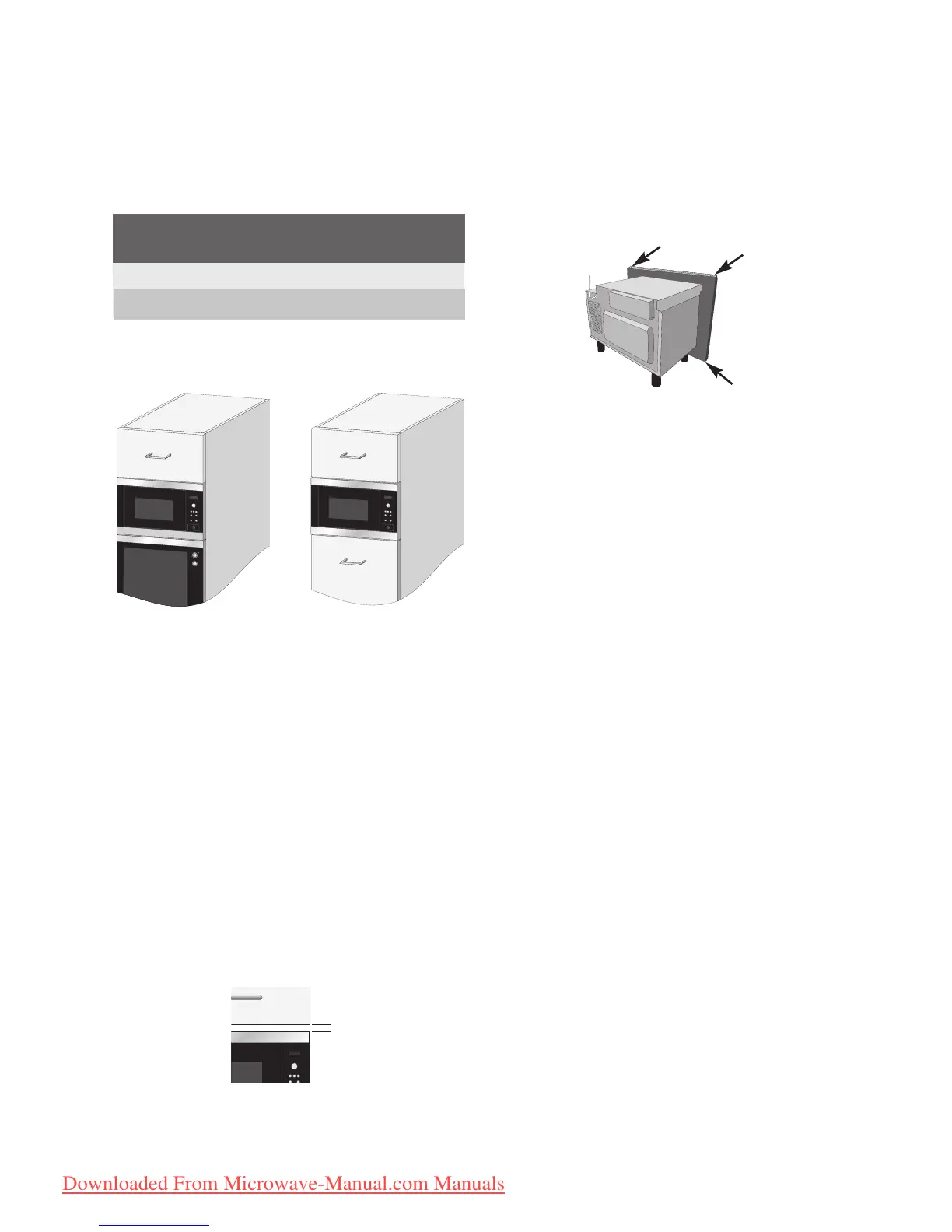

3. Ensure the appliance is stable and
not leaning. Ensure that a 4 mm gap
is kept between the cupboard door
above and the top of the frame (see
diagram).
Fixing Option 1:
Fix the oven in position with the screws
provided. The fixing points are located on
the top and bottom corners of the oven.
Fixing Option 2:
Please see the template sheet supplied
with this oven.
Conventional
oven
Position A
Position B
Position Niche Size
W D H
A 560x550x450
B 560x500x450
Measurements in (mm)
Important:
Ensure the bottom of the oven is
85 cm or more above the floor.
It is important to ensure that the
installation of this product conforms
to the instructions in this operation
manual and the conventional oven
manufacturer’s installation
instructions.
The microwave can be fitted in
position A or B:
