4.4 Actuators
Depending on the set function, the actuators open or close the devaporization valve and the water
vapor valve (see table below).
The stroke is approx. 6 mm. The zero position of the ram ( 0V ) is the extended state.
devaporization valve water vapor valve
steam cooking closed closed
Edevaporization open open
conventional closed open

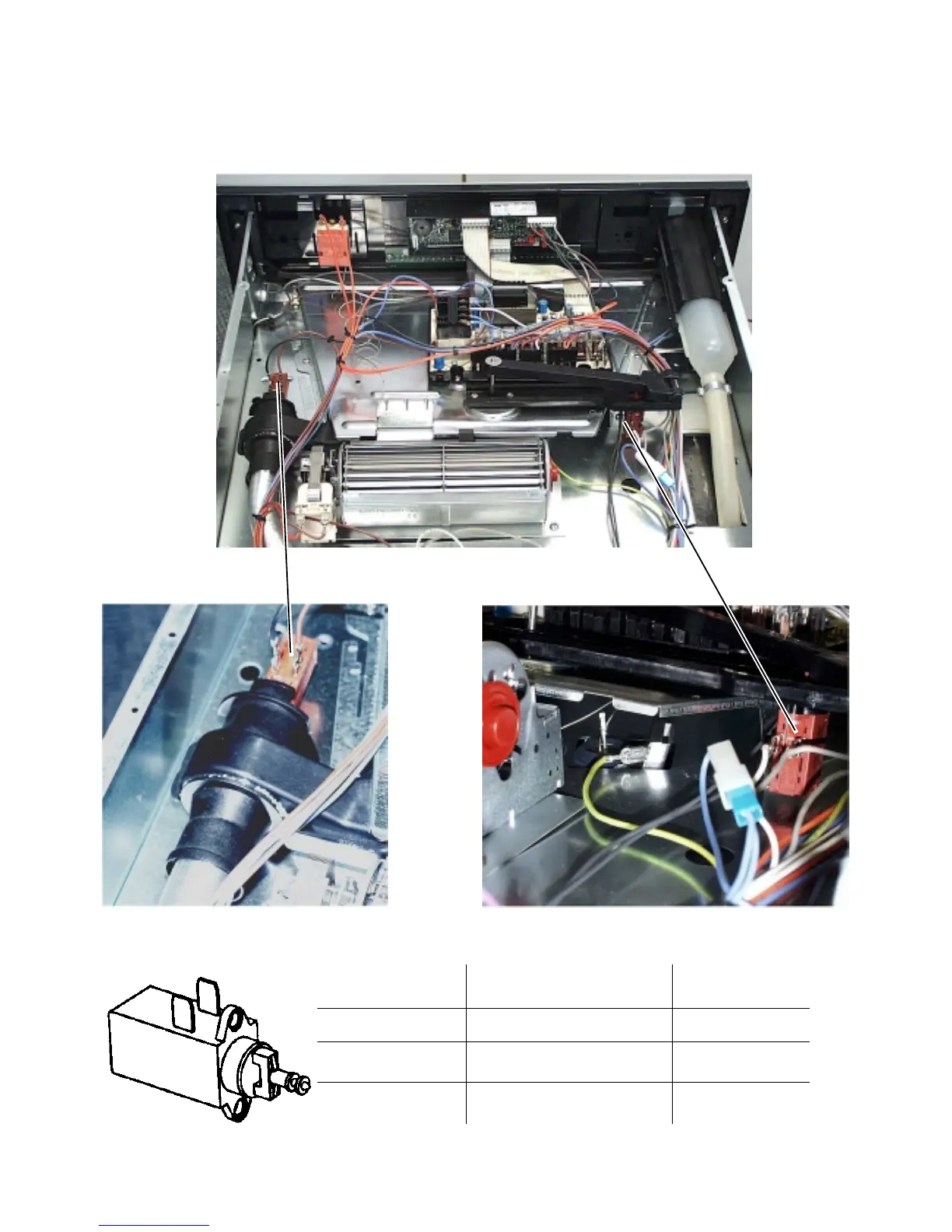

total view
water vapor valve
devaporization valve
They are selected by both relays steam.
