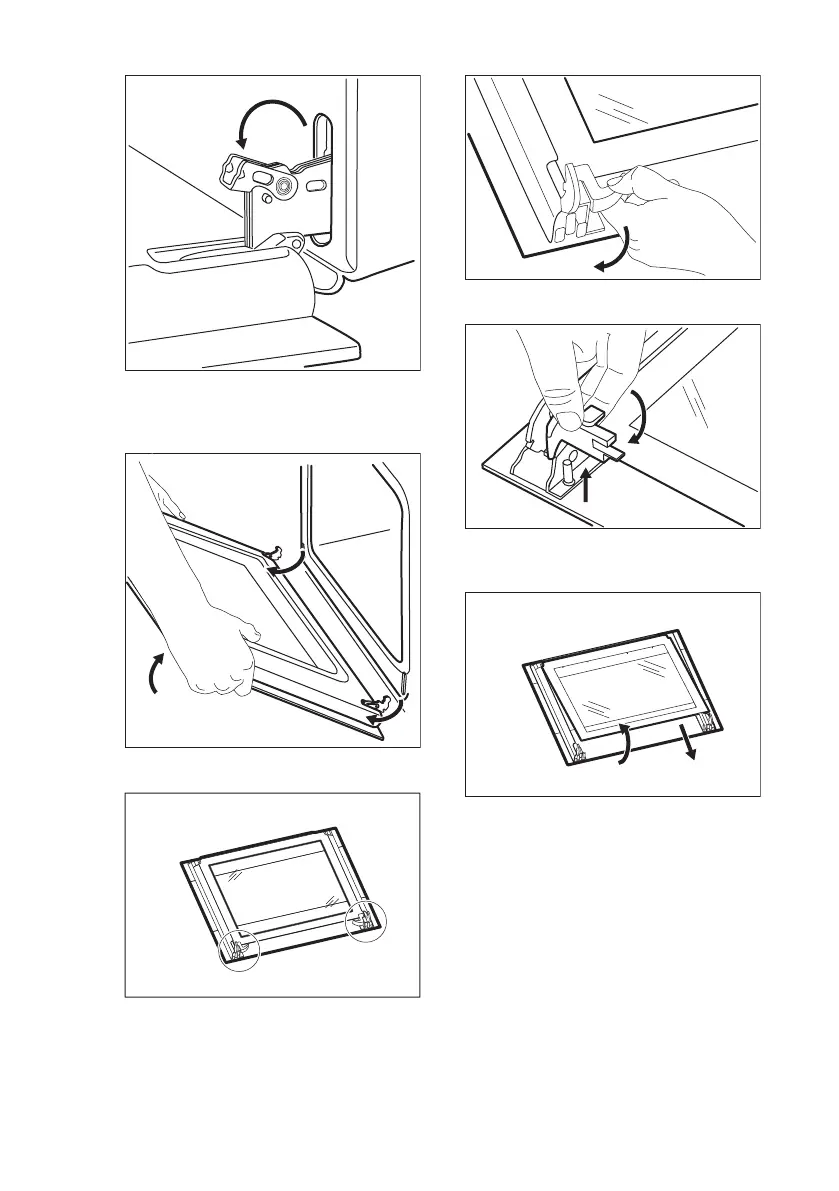

3. Close the oven door halfway to the
first opening position. Then pull
forward and remove the door from its
seat.
4. Put the door on a soft cloth on a
stable surface.
5. Release the locking system to
remove the glass panels.
6. Turn the two fasteners by 90° and
remove them from their seats.
7. First lift carefully and then remove
the glass panels one by one. Start
from the top panel.
8. Clean the glass panels with water
and soap. Dry the glass panels
carefully.
When the cleaning is completed, install
the glass panels and the oven door. Do
the above steps in the opposite
sequence.
Make sure that you put the glass panels
(A, B and C) back in the correct
sequence. The middle panel (B) has a
decorative frame. The screen-printing
zone must face the inner side of the
door. Make sure that after the installation
the surface of the glass panel frame (B)
www.electrolux.com24
