Electrolux ESF4100 - Description of the Appliance; The Control Panel

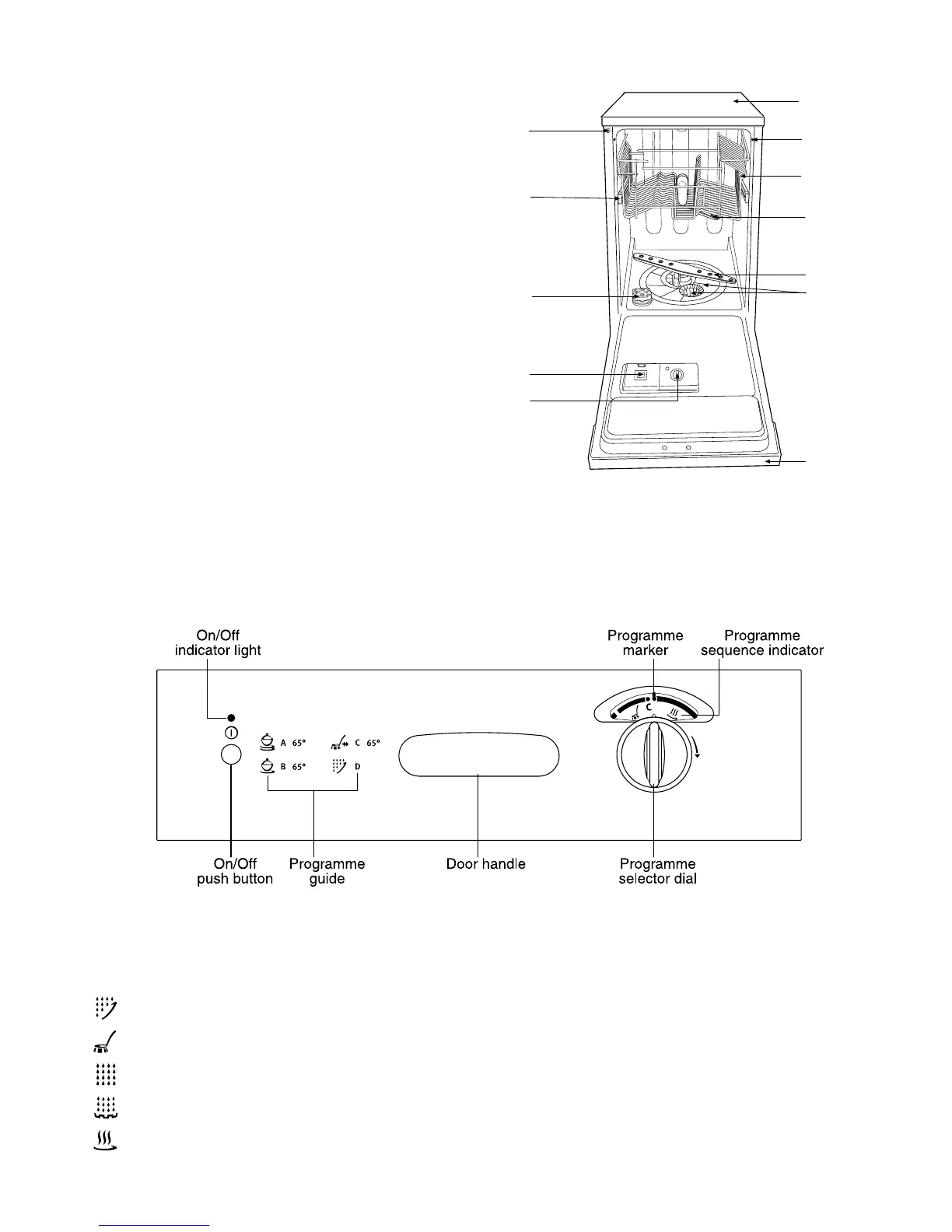

The control panel
4
1. Water hardness adjustment
2. Upper basket stop
3. Salt container
4. Detergent dispenser
5. Rinse aid dispenser
6. Control panel
7. Filters
8. Lower spray arm
9. Upper spray arm
10. Upper basket
11. Levelling spacers
12. Worktop
Description of the appliance
IN101
1
2
3
4
5
6
7
8
9
10
11
12
Programme sequence indicator
As the programme progresses, the programme selector dial
turns, to show the phase in the wash programme the appliance
has reached.
Prewash / Rinse and Hold
Wash
Cold rinse
Hot rinse
Drying
