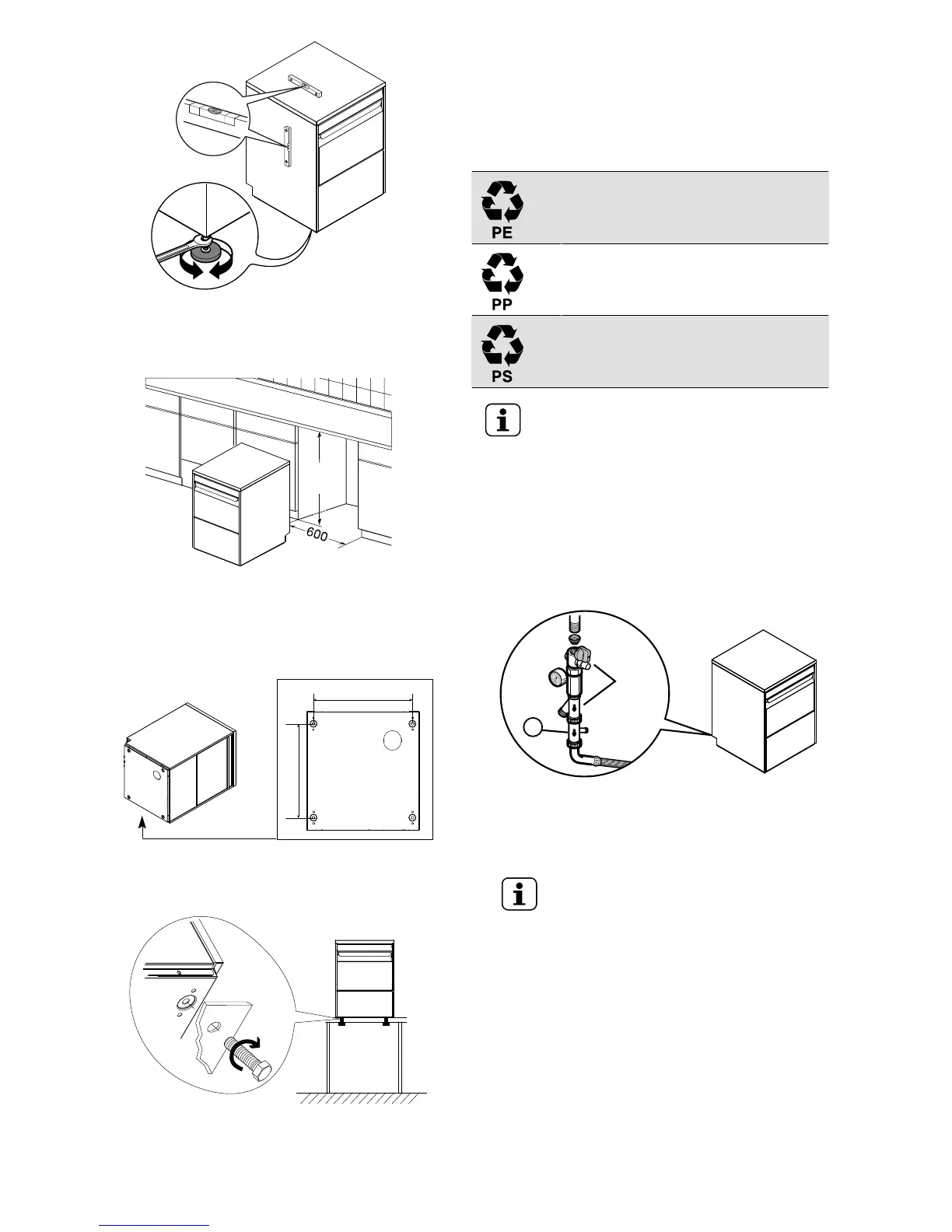

• If the dishwasher is installed under a work plan, the
dimensions of the space, where it is inserted, must be the
same as those shown in the following figure. Position the
dishwasher and level the appliance by turning the relative
height-adjustable feet.
• If the dishwasher is installed on a special support (eg.:
work plan), follow these steps:
1. Accessing the appliance bottom panel and unscrew the
4 feet.
2. Make 4 holes ⌀ = 9 mm on the support respecting the
distances shown in the figure below.
3. Put the dishwasher on the support by matching the
holes just made with the seats of the feet in the
appliance bottom panel (see following figure).
4. Fix the dishwasher steadily using screws M8.
FF..55 DDiissppoossaall ooff ppaacckkiinngg
The packing must be disposed of in compliance with the
current regulations in the country where the appliance is used.
All the packing materials are environmentally friendly. They
can be safely kept, recycled or burned in an appropriate
waste incineration plant. Recyclable plastic parts are marked
as follows:
Polyethylene
• Outer wrapping
• Instructions bag
Polypropylene
• Straps
Polystyrene foam
• Corner protectors
NOTE!
The parts in wood and cardboard can be disposed
of, respecting the current regulations in the country
where the machine is used.
FF..66 PPlluummbbiinngg ccoonnnneeccttiioonnss
• Connect the appliance water supply pipe “WI“ (see the
Installation diagram
) to the mains, fitting a cut-off tap, the
filter provided and a pressure gauge between the
appliance and the mains (see figure below).
• In models with incorporated water softener and in some
specific models, connect the double non-return valve “B“
supplied and the machine supply pipe (see figure below).
• Check that the dynamic water supply pressure, measured
between the appliance and the main, is between 200 and
300 kPa for machines with pressure boiler and between 50
and 700 kPa for machines with atmospheric boiler (test
while dishwasher tank or boiler is filling with water).
NOTE!
If the pressure is too high, fit a suitable pressure
reducer on the inlet pipe.
– On the model with free-fall drainage:
connect the waste outlet pipe (detail “D“ in the
Installation diagram
) to the main drain pipe, fitting a
trap, or place the outlet pipe over an “S“ trap set into the
floor.
– On the model with drain pump:
position the outlet pipe at a height anywhere between
750 and 1000 mm from the floor. Check that about 3
litres of water flow out of the outlet pipe during the rinse
cycle.
