19
CCAAUUTTIIOONN
Always use a new set of joints if you
remove and reinstall the water inlet pipe
to the appliance.

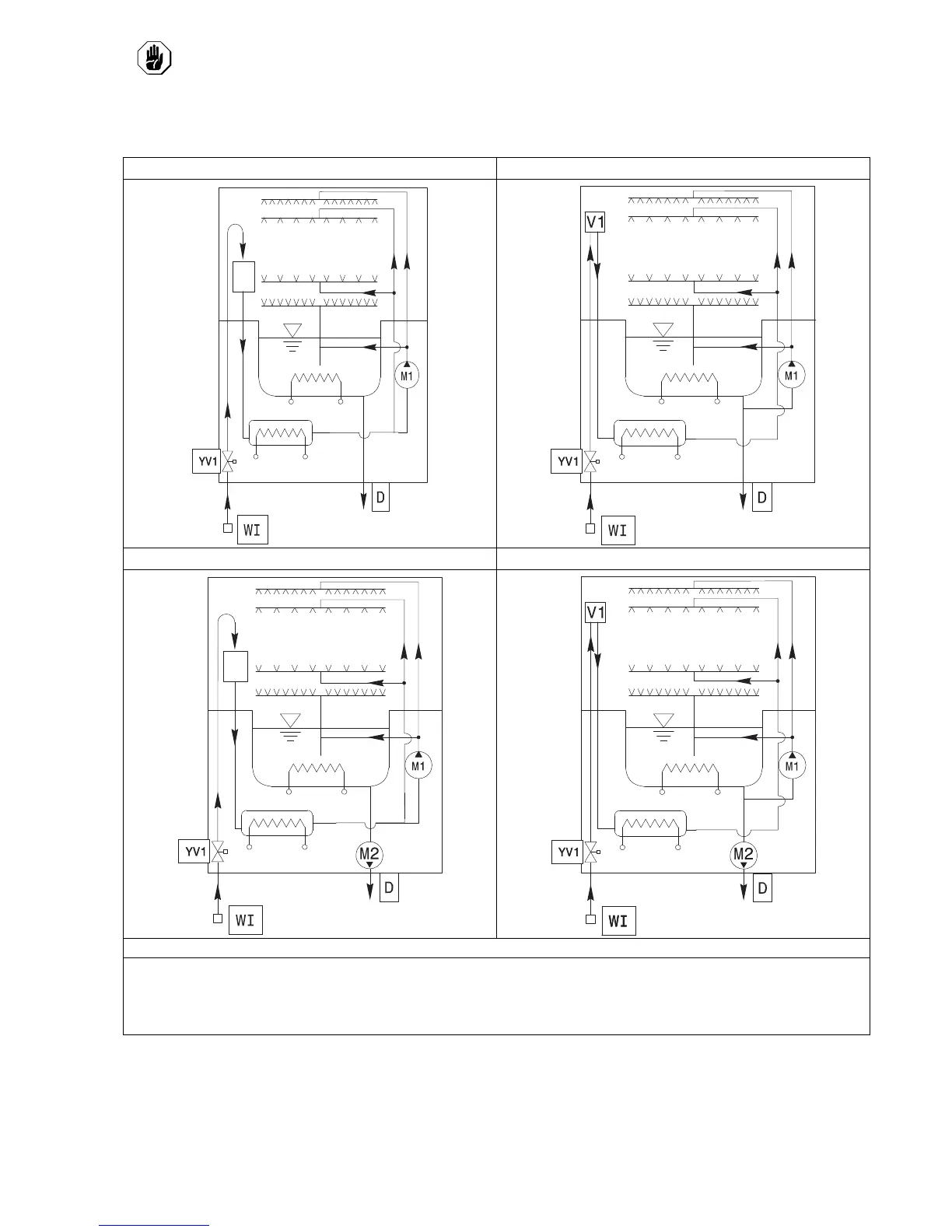

FF..77 PPlluummbbiinngg cciirrccuuiittss
Appliance with atmospheric water supply - without drain pump Appliance with pressure water supply - without drain pump
Appliance with atmospheric water supply - with drain pump Appliance with pressure water supply - with drain pump
LLEEGGEENNDD
WI = Water inlet
D = Drain
M1 = Wash pump
M2 = Drain pump
AG = Air Gap
YV1 = Filling solenoid valve
V1 = Non-return valve (hot circuit)
