21
CCAAUUTTIIOONN
The peristaltic dispensers (detergent and
rinse-aid) and the tube inside the rinse-
aid dispenser require periodical
maintenance (at least once or twice a
year) or after prolonged machine idle
periods.
DDiisshhwwaasshheerr wwiitthh iinnccoorrppoorraatteedd lliiqquuiidd ddeetteerrggeenntt ddiissppeennsseerr
((FFiigg.. 11))
1. The pump “R“ delivers about 0.9 g/s of detergent. At the
first water filling of the day it delivers approx. 67g of
detergent in 70 seconds, to obtain a concentration of 2g/l.
At each cycle the pump “R“ delivers approx. 8 g in 8 sec.
Dispenser operation time can be modified according to the
instructions given in the next paragraph (H.2
Setting the
dispensers
).
Insert the hose supplied in the detergent container
DDiisshhwwaasshheerrss wwiitthh iinnccoorrppoorraatteedd ppeerriissttaallttiicc rriinnssee--aaiidd
ddiissppeennsseerr ppuummpp ((FFiigg.. 11))
2. The pump “S“ dispenses about 0.1 g/s of rinse-aid. It
dispenses 0.4 g in 4 sec. at each rinse.
Dispenser operating time may be changed, following the
instructions given in the next paragraph (H.2
Setting the
dispensers
).
Insert the hose supplied in the rinse-aid container.

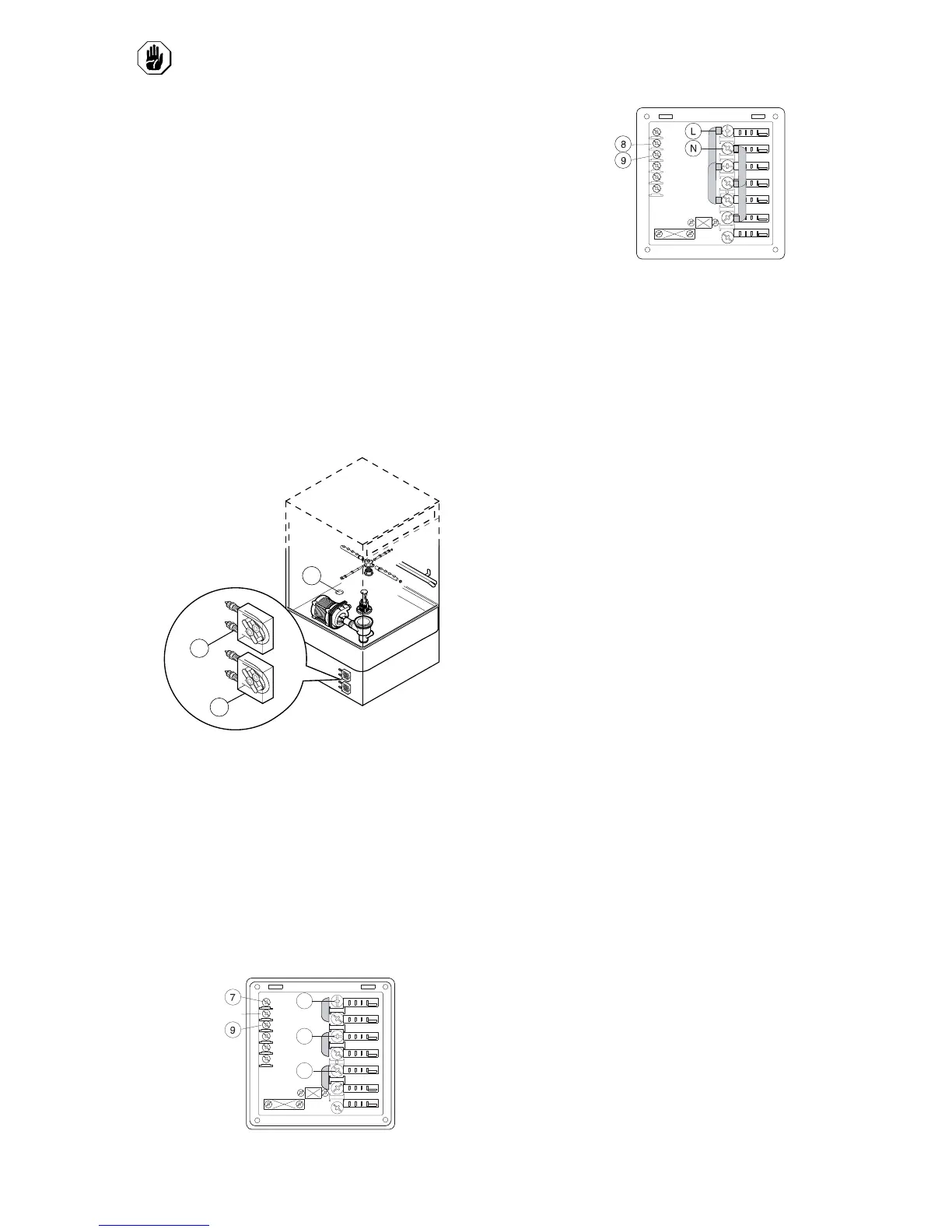

FFiigg.. 11 AAuuttoommaattiicc ddiissppeennsseerr oovveerrvviieeww
There is a ready-made impression “N“ to be perforated (⌀ 8
mm) for positioning the detergent concentration measuring
sensor.
FF..1100..11 EElleeccttrriiccaall ccoonnnneeccttiioonnss ffoorr aauuttoommaattiicc ddeetteerrggeenntt
aanndd rriinnssee--aaiidd ddiissppeennsseerrss
Terminals are available on the power supply terminal board
for the electrical connection of external dispensers working at
220 – 240 V. Max. power 30 VA.
• Connect the detergent dispenser between terminals 7 and
9. These connection points are live for a set time during
filling of the tank and at the start of the wash cycle (see
paragraph H.2
Setting the dispensers
).
• Connect the rinse-aid dispenser between terminals 8 and 9.
These connection points are live during filling of the tank
and at the end of the rinse cycle for a set time (see H.2
Setting the dispensers
paragraph).
