Hood Pot Washer

Appears with hood closed if the top limit switch
(FC_UP) cuts in.
Appears with hood closed, if:
- the bottom limit switch (S3) returns to the rest
position;
- the top limit switch (S5) cuts in;
- S3’’ does not cut in.

During lifting, the bottom limit switch (FC_DW) has
not returned to the rest position.
The limit switch must return to the rest position
within a time given by the parameter
 :
a) check that the motor works.

During the initial lifting phase the bottom limit
switch (S3) must return to the rest position
within a time given by the parameter
?
otherwise the alarm
appears.
- S3 could be stuck.
- S5’ could be disconnected.
On installation this alarm can occur due to
incorrect sequence of the phases: invert the two
phases on the power supply terminal board

Appears if during lifting S3’’ does not return to
the rest position within a time
.

Appears if the bottom limit switch (FC_DW) cuts in
during lifting.
(Polarity/motor rotation direction inverted?!).

Appears if the bottom limit switch (S3) cuts in
during lifting.
On installation this alarm can occur due to
incorrect sequence of the phases: invert the two
phases on the power supply terminal board.

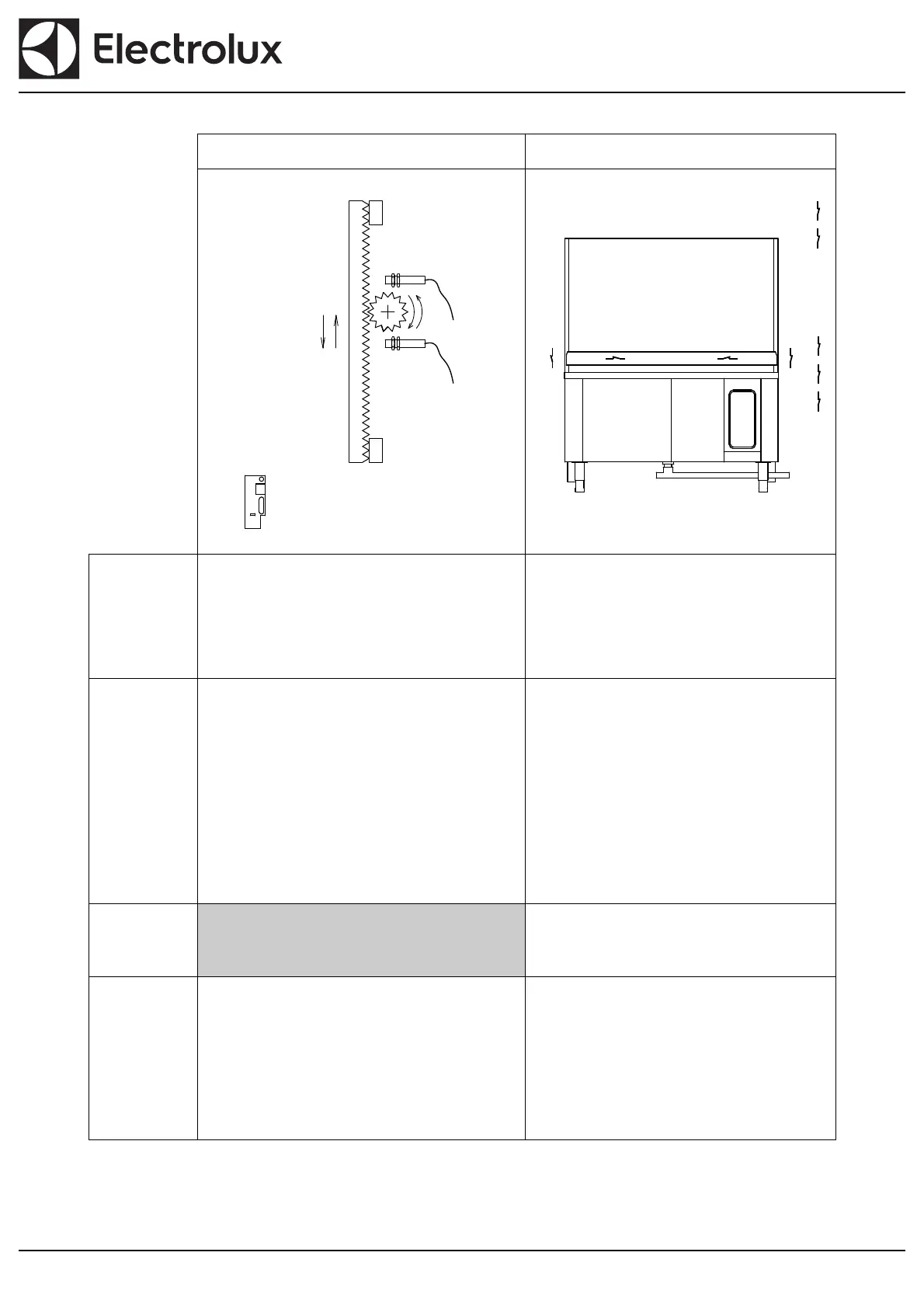

S3: FC_DW
S5: FC_UP
(hood CLOSE)
(hood OPEN)
S1: DOOR_CLOSE
S4
S3''
S3
S3'
S5'
S5
S4'''
S4''
S4'
