Electrolux EUCIM User Manual

6

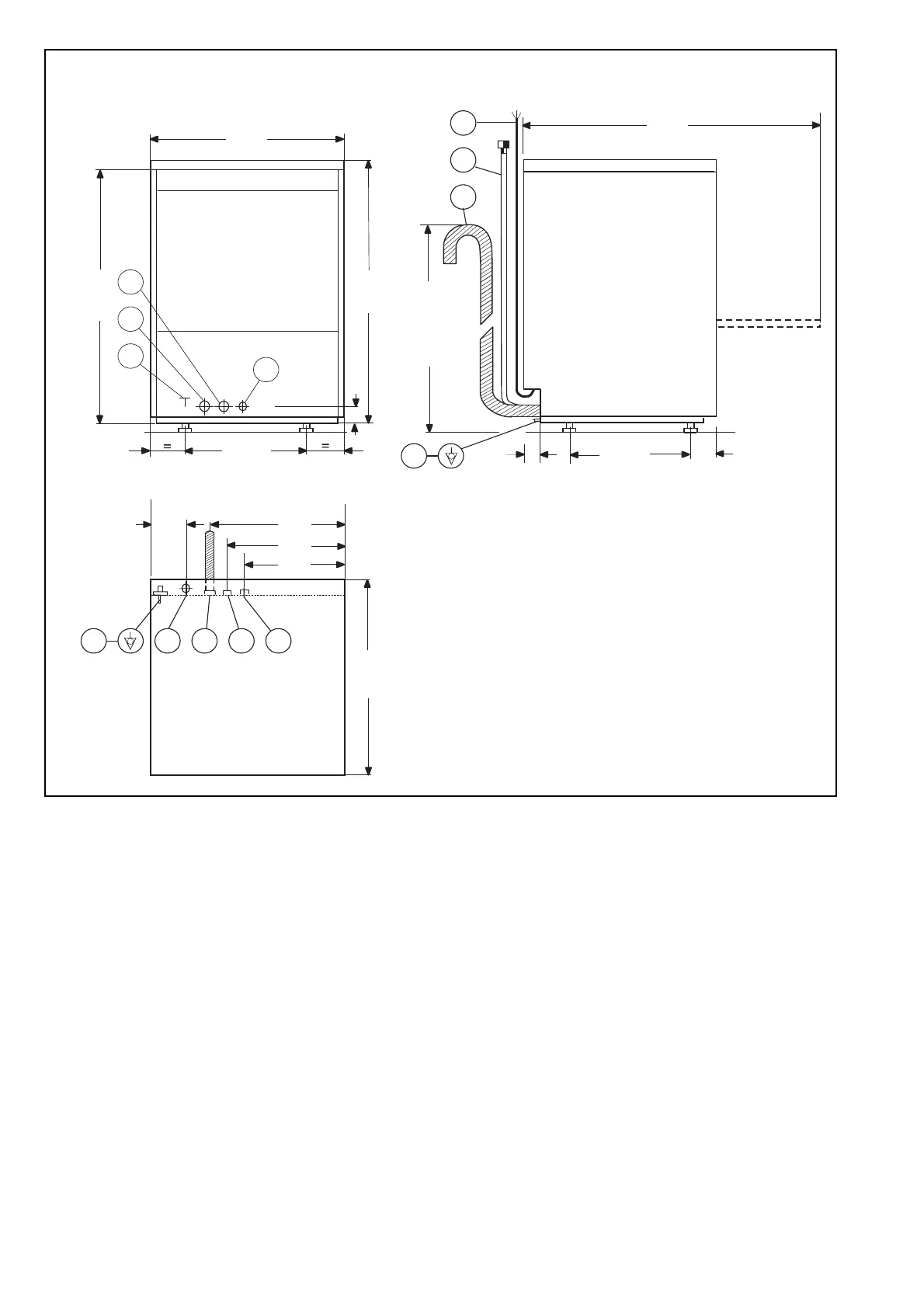

Figure 4 Installation diagram
Legend Figure 4
A - Water inlet pipe with ø 3/4” G fittings
C - Outlet pipe øi 40 mm (^) – øi 20 mm (*).
I - Power supply
S - Pipe inlet for detergents
Q - Unipotential screw
(^) - Only for model with free-fall drainage
(*) - Only for model with drain pump
600
508
431
987
69
58
431
403
379
155
612
30
850
750-1000*
S
A
I
C
Q
C
A
I
CSAI
Q
820
