Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to
the cabinet.
• The door opens and closes correctly.

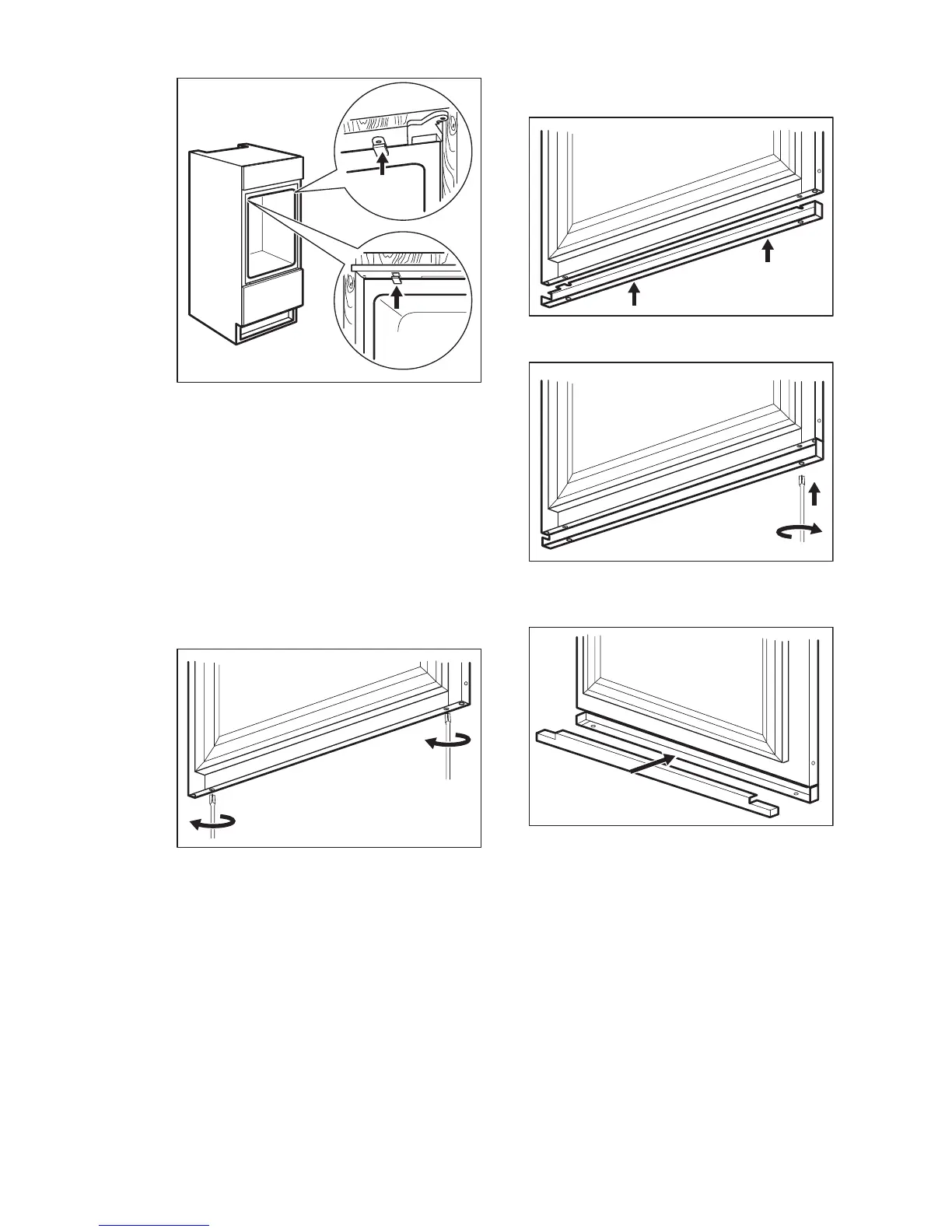

8.6 Assembly instructions for
the compensator lower part of
the door
1. With the door open, loosen the two
screws situated in the lower part
without unscrewing them completely.
2. Position the steel compensator as
indicated in the figure and insert the
upper part under the head of the
screws.
3. Align the compensator with the steel
door panel and tighten the screws.
4. Insert the steel carter inside the
compensator as indicated in the
figure.
9. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
ENGLISH 15
