Electrolux EVE614 - Technical Specifications

63
A
C
B
561mm
mounting holes
583mm
596mm wide (all products)
min. 650mm
561mm
mounting
holes
A
B
C
mounting holes
596mm
456mm
min. 650mm
A
561mm
mounting
holes
mounting holes
596mm
456mm
B
C
Plastic clips
Plastic clip
securing points
TECHNICAL SPECIFICATIONS
model
product dimensions
(h x w x d) mm
electrical
connection
min. fuse rating
max. power
rating
max. current
rating
EVE614 597 x 596 x 568 230-240V/50Hz 16A 3.1k W 12.9A
EVE616 597 x 596 x 568 230-240V/50Hz 16A 3.1k W 12.9A
EVEP614 597 x 596 x 572 230-240V/50Hz 16A 3.1k W 12.9A
EVEP616 597 x 596 x 572 230-240V/50Hz 16A 3.1k W 12.9A
EVEP618 597 x 596 x 572 230-240V/50Hz 16A 3.1k W 12.9A
EVE626 890 x 596 x 568 230-240V/50Hz 25A 5.3kW 22.1A
EVEP626 890 x 596 x 572 230-240V/50Hz 25A 5.3kW 22.1A
EVE636 1083 x 596 x 568 230-240V/50Hz 32A 6.2kW 25.8A

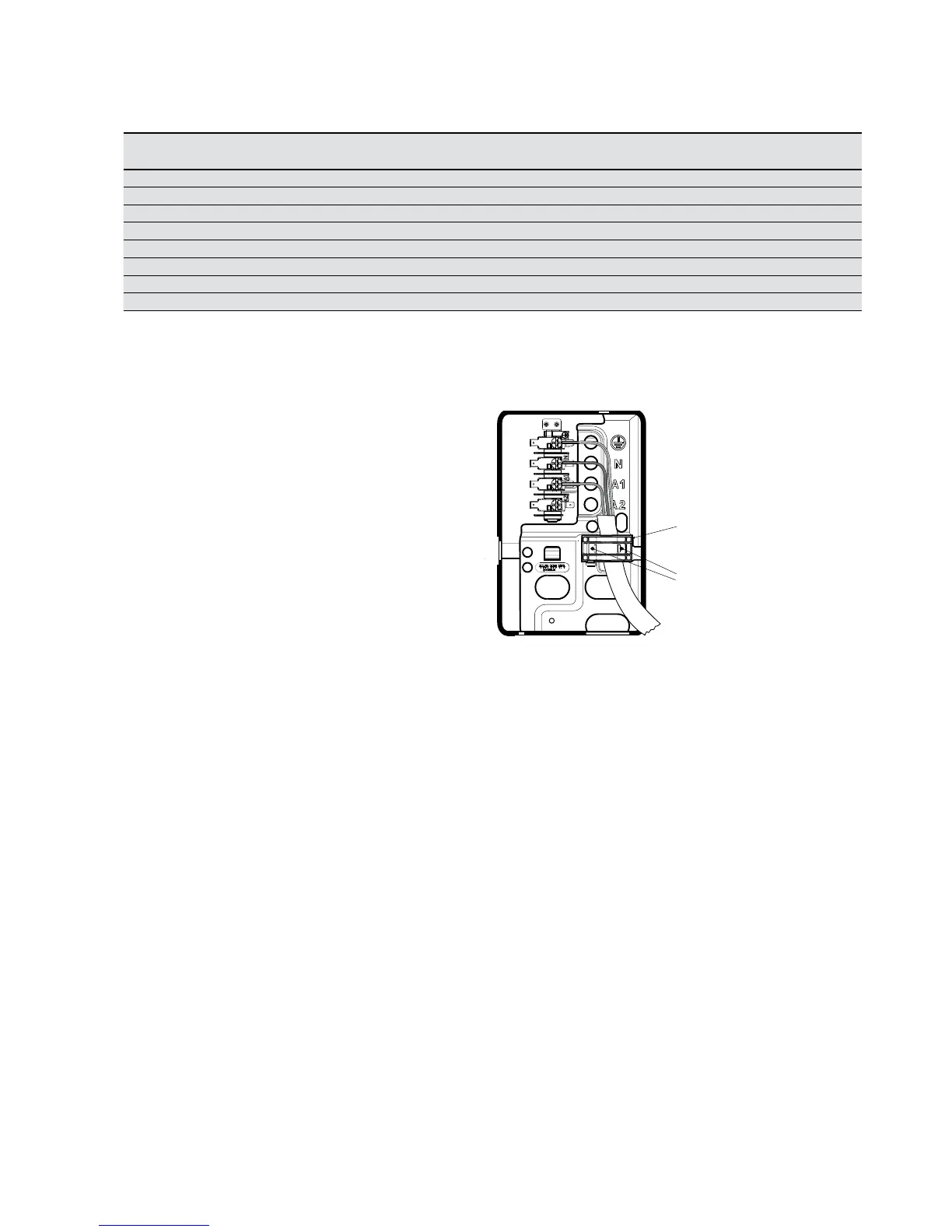

Hard wiring details
1. Remove terminal cover plate from rear panel of
appliance.
2. Fit wires through hole in cover plate and make
connections to terminals.
3. Engage wires into plastic clip. Secure plastic clip with
two long silver screws (supplied in separate bag).
4. Replace cover plate onto rear panel.
