TECHNICAL SPECIFICATIONS
model
product dimensions
(h x w x d) mm
electrical
connection
min. fuse rating
max. power
rating
max. current
rating
EVE614 597 x 596 x 573 230-240V/50Hz 16A 3.1k W 12.9A
EVE616 597 x 596 x 573 230-240V/50Hz 16A 3.1k W 12.9A
EVEP604 597 x 596 x 573 230-240V/50Hz 16A 3.1kW 12.9A
EVEP614 597 x 596 x 573 230-240V/50Hz 16A 3.1kW 12.9A
EVEP606 597 x 596 x 573 230-240V/50Hz 16A 3.1kW 12.9A
EVEP616 597 x 596 x 573 230-240V/50Hz 16A 3.1k W 12.9A
EVE607 597 x 596 x 573 230-240V/50Hz 16A 3.1kW 12.9A
EVEP618 597 x 596 x 573 230-240V/50Hz 16A 3.1kW 12.9A
EVE626 890 x 596 x 573 230-240V/50Hz 25A 5.3kW 22.1A
EVEP626 890 x 596 x 573 230-240V/50Hz 25A 5.3kW 22.1A
EVEP627 890 x 596 x 573 230-240V/50Hz 25A 5.3kW 22.1A
EVE636 1083 x 596 x 573 230-240V/50Hz 32A 6.2kW 25.8A
Hard wiring details

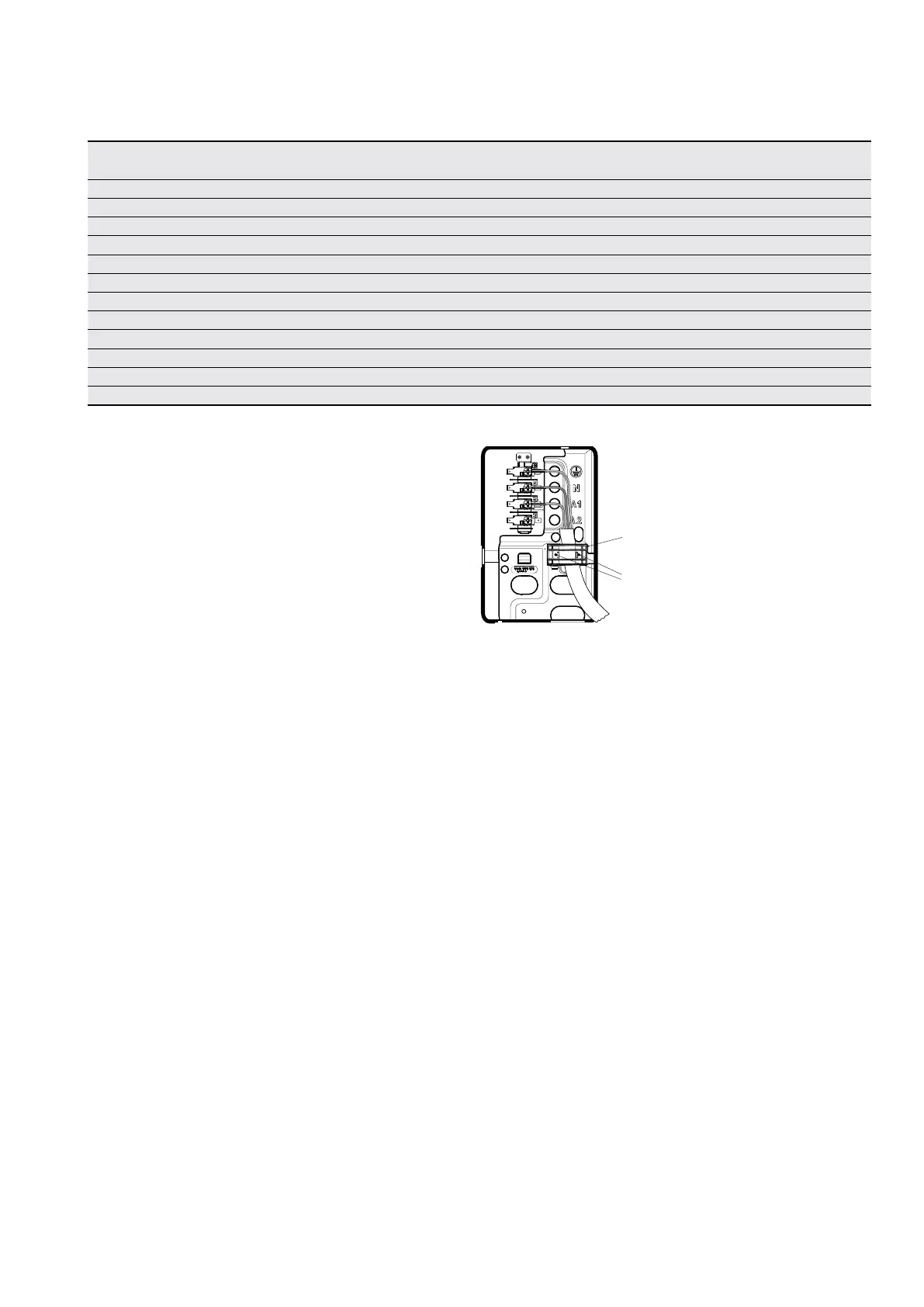

1. Remove terminal cover plate from rear panel of
appliance.
2. Fit wires through hole in cover plate and make
connections to terminals.
3. Engage wires into plastic clip. Secure plastic clip with
two long silver screws (supplied in separate bag).
4. Replace cover plate onto rear panel.
