Electrolux EW23BC71IB User Manual

7

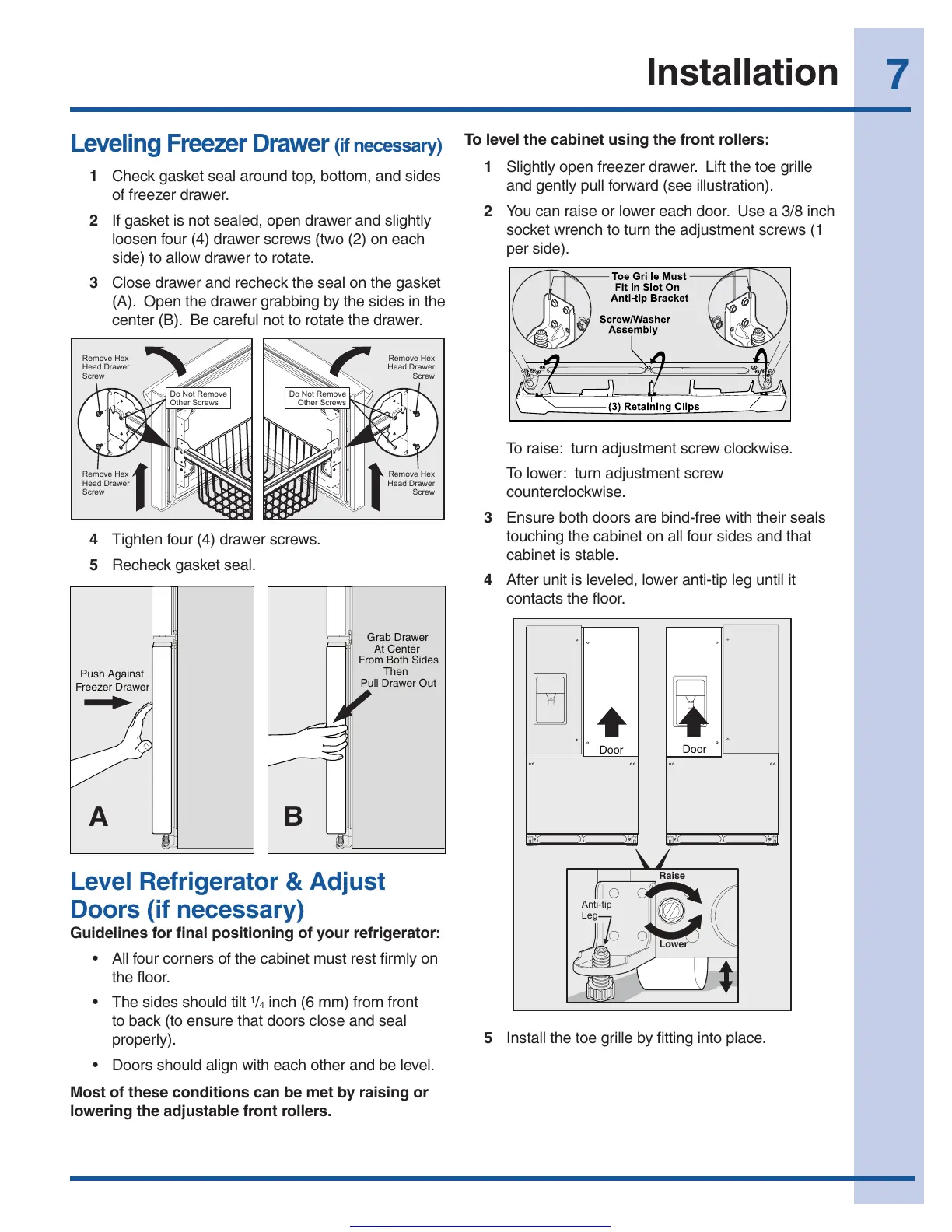

Installation
Leveling Freezer Drawer (if necessary)
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the toe grille
and gently pull forward (see illustration).
2 You can raise or lower each door. Use a 3/8 inch
socket wrench to turn the adjustment screws (1
per side).
1 Check gasket seal around top, bottom, and sides
of freezer drawer.
2 If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
3 Close drawer and recheck the seal on the gasket
(A).Openthedrawergrabbingbythesidesinthe
center (B). Be careful not to rotate the drawer.
4 Tighten four (4) drawer screws.
5 Recheck gasket seal.
Pull Drawer Out
From Both Sides
Grab Drawer
At Center
Then
Push Against
Freezer Drawer
Level Refrigerator & Adjust
Doors (if necessary)
Guidelines for final positioning of your refrigerator:
 • Allfourcornersofthecabinetmustrestrmlyon
the floor.
 • Thesidesshouldtilt
1
/
4
inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
 • Doorsshouldalignwitheachotherandbelevel.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
A B
Raise
Lower
Anti-tip
Leg
Door
Door
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
4 Afterunitisleveled,loweranti-tipleguntilit
contacts the floor.
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
5 Install the toe grille by fitting into place.
