8
Installation

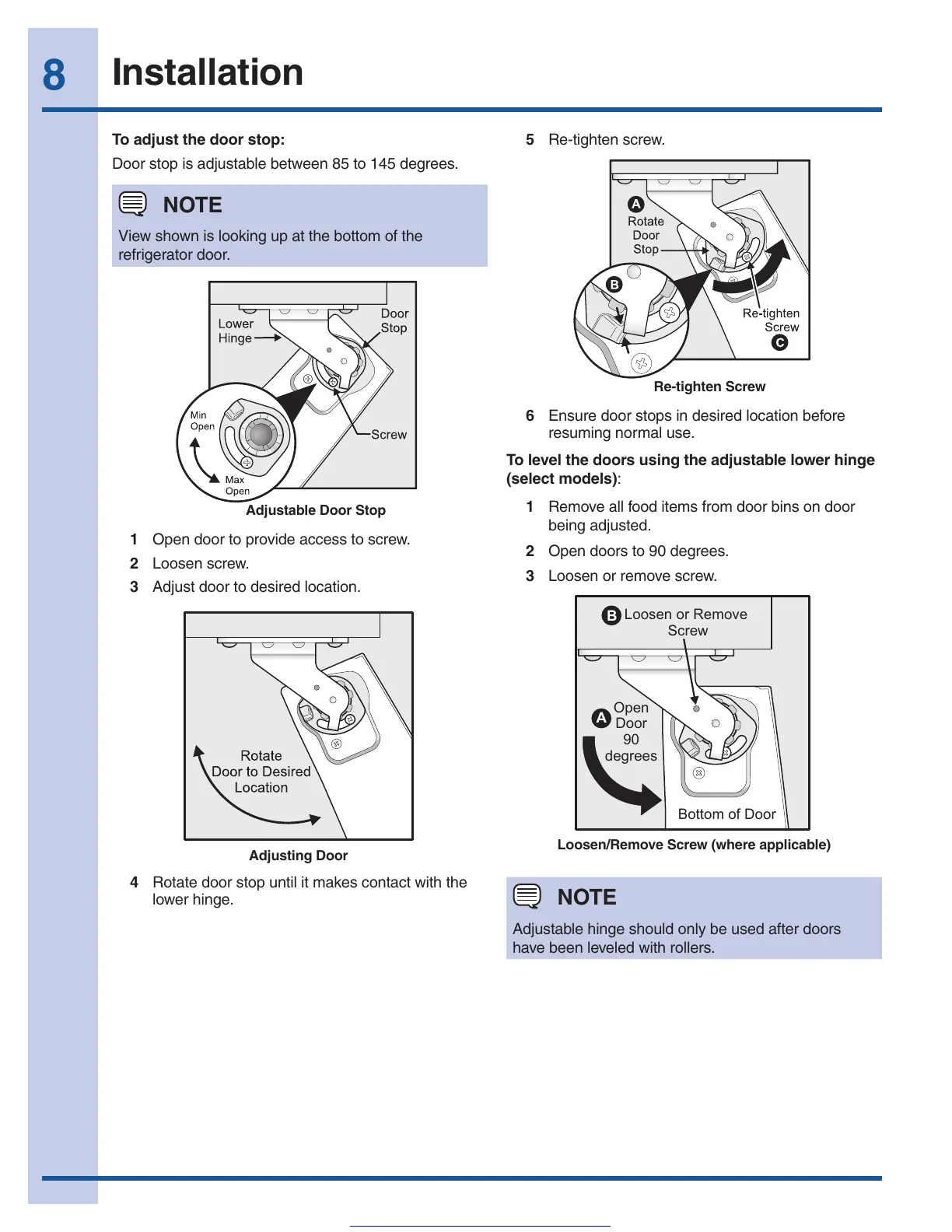

To adjust the door stop:
Door stop is adjustable between 85 to 145 degrees.
1 Open door to provide access to screw.
2 Loosen screw.
3 Adjustdoortodesiredlocation.
4 Rotate door stop until it makes contact with the
lower hinge.
5 Re-tighten screw.
Loosen or Remove
Screw
Open
Door
90
degrees
Bottom of Door
A
B
Loosen/Remove Screw (where applicable)
6 Ensure door stops in desired location before
resuming normal use.
To level the doors using the adjustable lower hinge
(select models):
1 Remove all food items from door bins on door
being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove screw.
Adjusting Door
Re-tighten Screw
NOTE
View shown is looking up at the bottom of the
refrigerator door.
Adjustable Door Stop
NOTE
Adjustablehingeshouldonlybeusedafterdoors
have been leveled with rollers.
