Installation

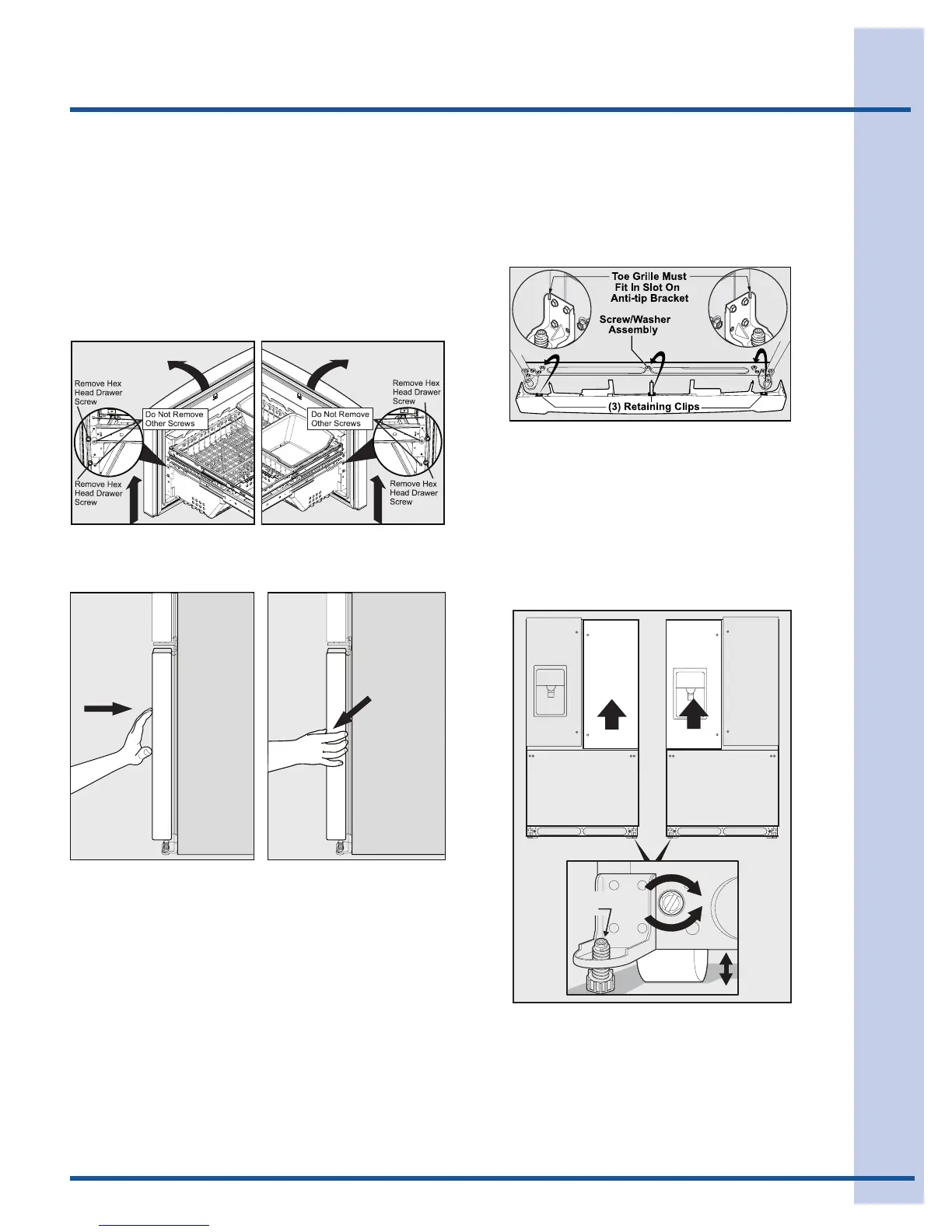

Freezer Drawer Alignment (if necessary)
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
2 You can raise or lower each door. Use a 3/8 inch
socket wrench to turn the adjustment screws (1
per side).
1 Check gasket seal around top, bottom, and sides
of freezer drawer.
2 If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
3 Close drawer and recheck the seal on the gasket
(A).Openthedrawergrabbingbythesidesinthe
center (B). Be careful not to rotate the drawer.
4 Tighten four (4) drawer screws.
5 Recheck gasket seal.
Pull Drawer Out
From Both Sides
Grab Drawer
At Center
Then
Push Against
Freezer Drawer
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of your refrigerator:
 • Allfourcornersofthecabinetmustrestrmlyon
the floor.
 • Thesidesshouldtilt
1
/
4
inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
 • Doorsshouldalignwitheachotherandbelevel.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
A B
Raise
Lower
Anti-tip
Leg
Door
Door
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
4 Afterunitisleveled,loweranti-tipleguntilit
contacts the floor.
5 Install the toe grille by fitting into place.
