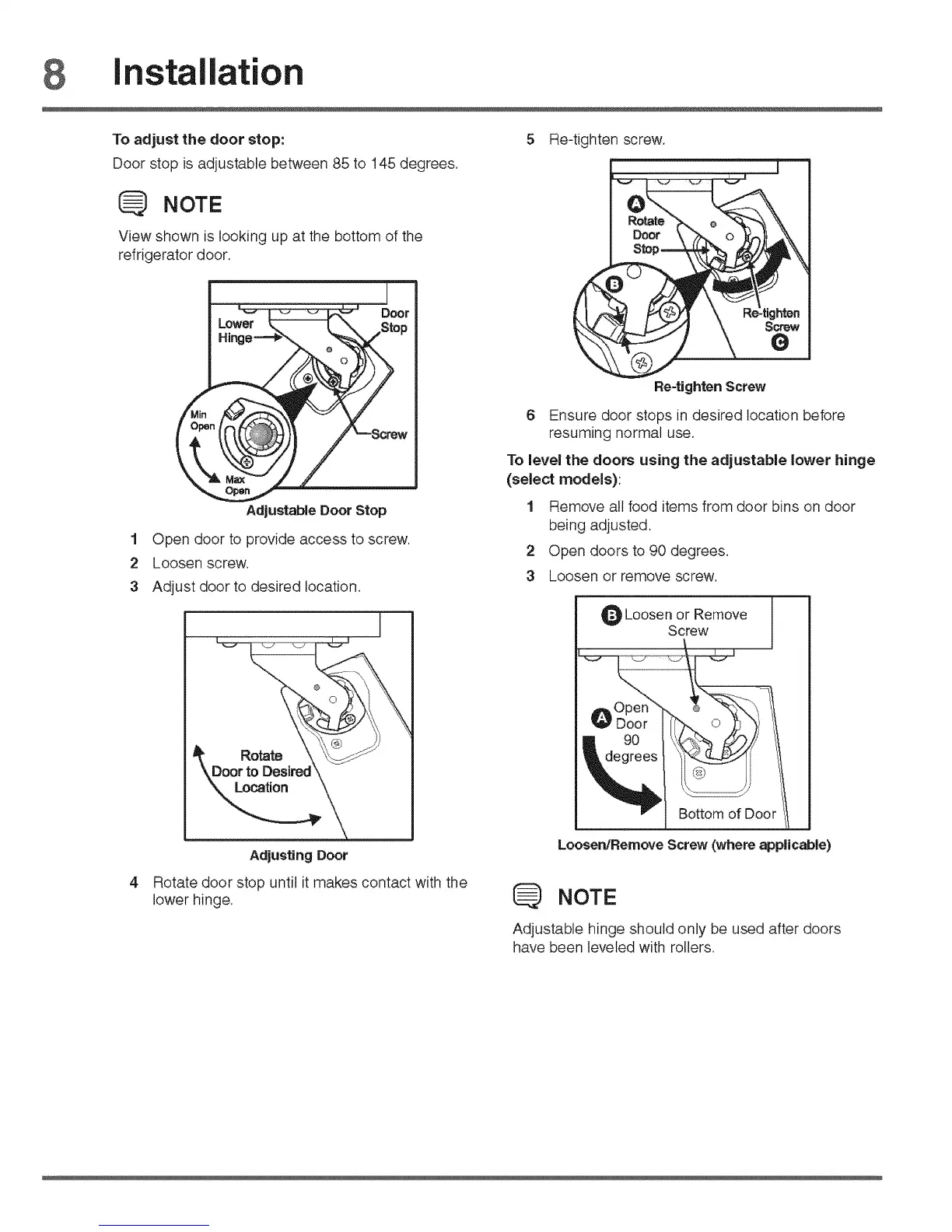

installation
To adjust the door stop:
Door stop is adjustable between 85 to 145 degrees.
NOTE
View shown is looking up at the bottom of the
refrigerator door.
1
2
3
Adjustable Door Stop
Open door to provide access to screw.
Loosen screw.
Adjust door to desired location,
i
5 Re-tighten screw.
Re-tightenScrew
6 Ensure door stops in desired location before
resuming normal use,
To level the doors using the adjustable lower hinge
(select models):
1 Remove all food items from door bins on door
being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove screw,
O LoosenscrewOrRemove T
4
AdjustingDoor
Rotate door stop until it makes contact with the
lower hinge.
Bottom of Door
Loosen/RemoveScrew (where applicable)
NOTE
Adjustable hinge should only be used after doors
have been leveled with rollers.
